Gate & Sluice Valves Dealers in Udhna, Surat

Valve design:- api 602 face to face:- ansi b 16.10 socket weld & threaded to:- ansi b 16.11ansi b 2.1 testing standard:- api 598bs 5146 size range:- 15 mm to 50 mm pressure rating:- class 800 sr.no part name material specifications 1. body astm- a 105 a 182f 304-316 2. seat ring aisi- 410304316 3. wedge aisi- 410 304316 4. spindle aisi- 410304 316 5. gasket spiral wound ss304 filled asbestosgraphite 6. bonnet astm a 105a182f304-316 7. gland flower astm – a 105304 8. gland packing grafoil ring 9. gland bush aisi- 410304316 10. yoke sleeve ni- resist 11. handwheel c.i m.i 12. bonnet nut a 193 gr.b7 13. eye bolt carbon steel or aisi 410304 14. nut carbon steel or aisi 410304.

• Brand Name: LINET
• Material: CI / WCB / SS 304 / SS 316

Cast iron cast steel ss 304 ss 316 body ss 304 ss 316 disc nitrile metal to metal seat knife edge gate valve wheel gear pneumatic cylinder operated.

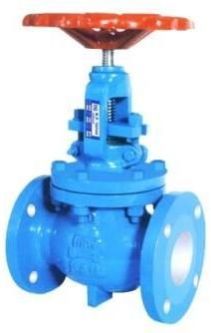

Gate valves are characterised as having either a rising or a nonrising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Nonrising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem. Nonrising stems are used underground or where vertical space is limited. Bonnets provide leakproof closure for the valve body. Gate valves may have a screw-in, union, or bolted bonnet. Screw-in bonnet is the simplest, offering a durable, pressure-tight seal. Union bonnet is suitable for applications requiring frequent inspection and cleaning. It also gives the body added strength. Bolted bonnet is used for larger valves and higher pressure applications. Features Wedge: furnished with solid/flexible design at specific request of the user/client. Special flange facings can be given to suit specific applications (e.g. Large or small male or female face-ring joint face etc.) The valve can be supplied with matching electrically operated actuator for remote/automated control and operation. By-pass arrangment/position indicator/extension stem with or without floor stand cane be provided on request. Pressure seal design bonnet can be given at specific request of the user/client. The design and technical data furnished here are subject to change due to continious product development

The company is counted amongst the leading Manufacturers and Suppliers of high quality Safety Valve. Safety Valves, manufactured by us, are manufactured in accordance with accurate spring design in order to achieve blow down within (up to 5%). This resultantly saves wastage of steam to great extent. Safety Valves are used in various industries including petrochemical, sewage, chemical, power generation, etc. Soft seated Safety Relief Valves are used for low temperature and critical application.

Based on our vast industry experience we have build an expertise on manufacturing and supplying superior quality STARLINE Plug & Socket series for Industrial use. All these multi pin plugs and sockets come with IP44, IP55 and IP67 protection degree to ensure safety and reliability. Our Plug & Socket cases and inlets are   made of Aluminum to provide high insulation as well as durability features. Our range of STARLINE Aluminum Plug & Socket is widely used for various industrial applications to handle control panels and other load distribution boards.   MOTI Enterprise is very instrumental in manufacturing and supplying Aluminum Plug & Sockets for Industrial applications. STARLINE Aluminum Plug & Socket are designed and manufactured to handle high duty industrial power distribution. Our Plugs & Socket are free from any wear and tear due to humid, dusty or corrosive atmosphere hence ensuring a safe and longer life. Other than Industrial applications, our STARLINE Aluminum Plug & Socket are also widely used in Domestic as well as other Commercial uses.

Wesman Oil Pressure Regulating Valves reduces oil line pressure to a constantly maintained outlet pressure despite variations in flow rate. These regulators can be used with inlet pressure up to 250 psi and temperature up to 150 deg C. Supply oil to burner at a constant pressure at all operating condition. Avoid buildup of pressure which occurs upstream of Ratiotrol and other equipment at turn down condition. Helps setting of burners and keeps the setting for all conditions. Ensures exact flow of fuel to the burner. Can be set different pressure to the individual or zone burners depending on process requirement. Steady pressure to burner inlets from variable pressure oil supply. Application: Heat treatment furnaces, non-ferrous melting furnaces, kilns, ovens, air heaters, dryers, chemical processing plants.
