Weaving Machines Dealers in Kim, Surat

• Country of Origin: India
• Loom Dimension: 20 inch
• Material: MS
• Automation Grade: Automatic
• Power: Electric
• Voltage: 220 V
• Frequency: 50 Hz
• Machine Speed: 180 RPM
• Application: Industrial
• Features: Long service life, Optimum performance, Excellent functionality

Main Technical Parameters Model: PLW 786 Width : 170, 180, 190, 210, 230, 280, 360 Cm Type : Dobby Shedding, Upper cam Motion, jacquard Shedding Extra Accessories 1. One control panel for machine and dobby - USD 950 set extra 2. Aluminum beam flange 800mm dia-USD 300 / set extra Standard Accessories Mechanical Let Off (Box Type) Mechanical Continuous Take-up 2 Cloth Roll 2 Beam (Flange Dia 800mm, Plate type flange, beam pipe is close from both side, beam attachment support) 10000 Heald wire and dropper Adjustable Back Rest Leno Stand for 12pcs of leno bobin (3 pcs for 2 widths) Spring type tension Feeder tension (heavy & good quality) Machine with front cover Machine wall with spirical roller bearing (both side wall total 4pcs) Crank shaft 45mm Downside heavy wall Double press roller Motor big pully and big gear is heavy Gripper box heavy (square type)

• Automation Grade: Automatic
• Country of Origin: India
• Machine Speed: 800 to 1000 RPM
• Dimensions: 190 CM, 280 CM
• Power: 3 kw
• Filling Color: 4
• Reed Width: 190 CM, 280 CM
• Working Width: 190 CM, 280 CM
• Material: Stainless Steel

• Country of Origin: India
• Shuttle Box: 2x1, 2x2, 4x1, 4x4
• Reed Space: 46", 54", 56", 60”, 64", 68",72"
• Beating: The Slay is carefully made from selected good quality seasoned Teak wood with sheesham wood raceboard fitted with polished slay cap incorporated in the loom which ensures stable flight of the shuttle
• Shedding: Double treadle and cone pulley type shedding system is provided which is suitable for Plain weaving, Jacquard weaving and dobby with 24 shafts
• Let Off: Positive Let off, Negative Let off

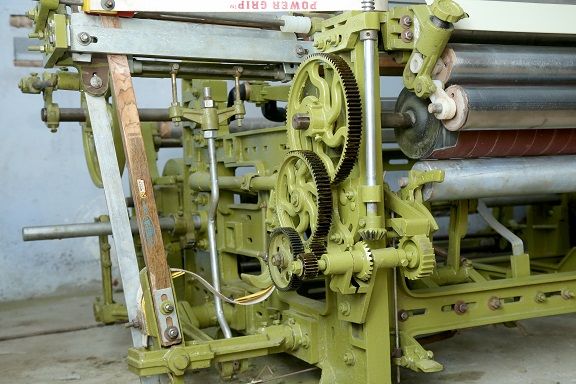

• Take Up: The take up motion incorporates pickle's indirect 7 wheels take up motion with ratchet wheels. The system performs accurate take up motion even at high pick weaving. The change gears are such that one
• Picking: The unique centre picking is adopted for smooth and uniform working even at high speed operation. The mechanism is designed to ensure Longer life for shuttle, pickers and picking sticks

Air Jet Loom
