Automatic Bandsaw Machine Dealers in Surendranagar

• Type: Vertical Bandsaw Machine
• Weight: 100-1000kg
• Color: Blue
• Voltage: 110V
• Condition: New
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• MODEL LX - 150 DC: Cutting Capacity Round Square
• In Inch. 6:  Cutting Speed
•  M / Min  20                FT / Min  60-300:  Blade Size
•  MM  3720 X 32 X 1.1   FT / Inch 12.3:  Saw Motor Cap
•  K.W.                     H.P.  2  :  Hyd.  Motor Cap
•  K.W 1.1                    H.P.1.5:  Hyd. Reservoir
•  Ltr.60                       Gallon13 :  Coolant Motor CAP.
•  K.W. 0.12                  H.P.0.16:  Coolant Resevoir
•  LTR 60                     Gallon13:  Appx. Net Wt.
•  Kg. 1100                  LBS 2425:  Overall Dimensions   In mm FT. & Inch

Saw head unit is supported by two rigid hard-chrome plated & ground vertical columns, which are guided by self lubricated bushes. The blade is guided by bearings & carbide wear pads. The blade can be tightened and released hydraulically. The blade is hydraulically tightened up to recommended tensile strength of the saw blade. The saw is driven by sufficient drive power to cut material. The quick approach arm eliminated the need for the operator to manually adjust the blade height to accommodate different sizes of the material. The blade will approach the material rapidly until the arm make contact, when the saw starts cutting.

• Round (mm): 240
• Square (mm): 240
• Blade Dimensions(mm): 3760 x 27 x 0.9
• Blade Linear Speed(mm): 20 / 30 / 40 / 50 / 75
• Power Req. - Saw Drive (440V AC, 50Hz): 1.5 / 2.0 / 1440 RPM 0.75 / 1.0 / 1440 RPM
• Coolant Pump: 0.12 / 0.16 / 2800 RPM
• Wire Brush Motor: 0.18 / 0.25 / 1440 RPM
• Hydraulic Tank Capacity: 80
• Coolant Tank Capacity: 80
• Shuttle Bar Feed Stroke (mm): 350
• Bundle Cutting W x H mm (*optional): 210 x 150
• Dimensions (LxWxH) mtr.: 2 x 2.5 x 1.3
• Weight (kg): 1900

Laxman Fully Automatic Horizontal Metal Cutting Band Saw Machine Model Auto BLMhs-1 An ample array of superlative Fully Automatic Bandsaw Machine is provided by us that are manufactured from the optimum quality raw materials. We are counted among the prominent Fully Automatic Bandsaw Machines manufacturers, based in India. Robust structure, high durability and excellent performance are some of the unique features of these Bandsaw machines.

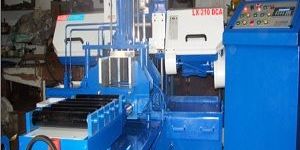

semi automatic double column bandsaw machines

Semi Automatic Bandsaw Machine, double column type bandsaw machines

Hinge Type Automatic Band Saw Machine, Semi Automatic Band Saw Machines
