Grinding Machine Dealers in Surendranagar

• Country of Origin: India
• Type: Hydraulic Cylindrical Grinding Machine
• Color: White
• Voltage: 440V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 5-10kw
• Warranty: 1 Year
• Color: White
• Supply Ability: 3 Number per Month
• Packaging Details: Wooden Box
• Usage: Industrial
• MOQ: 1 Number
• Port: Nahva Sheva
• Wheel Size: 350×40×127
• Product Name: Cylindrical Grinding Machine
• Grinding Spindle Speed: 1800 RPM
• Optional: Internal Grinding Attachment

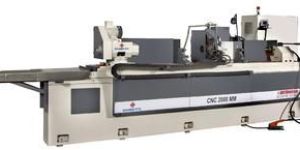

CNC External Grinding Machine that we provide allows configuration of huge number of alternatives to accommodate all production requirements. The modern technologies of grinding are recognized with our CNC External Grinding Machine. It is well-equipped with diverse sizes including one, two or extra grinding spindles with internal or external machining. The CNC External Grinding Machine provides solution for internal as well as external grinding for cams including one-offs to the big batch of production grinding.The accessible modules for CNC External Grinding Machine incorporate dressing attachments of CBN as well as corundum wheels, working holding units, and touch-identification during dressing and grinding. The work pieces may be loaded or unloaded on CNC Grinder having customized work handling systems that include robots and gantry loader. The equipment is complemented with environment friendly processing plants as well as exhaust systems of CNC External Grinding Machine. Conventional applications for Cam Grinder incorporate pre- and finishing grinding of the cam rings meant for injection and vane pumps as well as grinding of internal and external polygons.The exclamation of X- and C-axis, wheel oscillation of axial grinding with Z-axis, dressing for pre as well as finishing grinding wheels having diamond wheels, all of these are procedures, which provide wonderful grinding results from CNC External Grinding Machine. Technical Data Work piece dia., max mm 250 Work piece length, max mm 100 Z-axis travel mm 360  Salient Features Work head is having highly alleviated spindle running through high accuracy antifriction bearings. Effective sealing collection protects all coolant as well as grinding dust entries, therefore increasing life of critical parts like bearings. Slides are particularly designed for superior load carrying capability with accuracy feedback devices. Compound operations with one setup make sure close control over all associated accuracies like Perpendicularity, Concentricity, Parallelism, and Run out, etc.

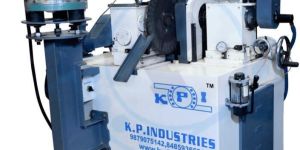

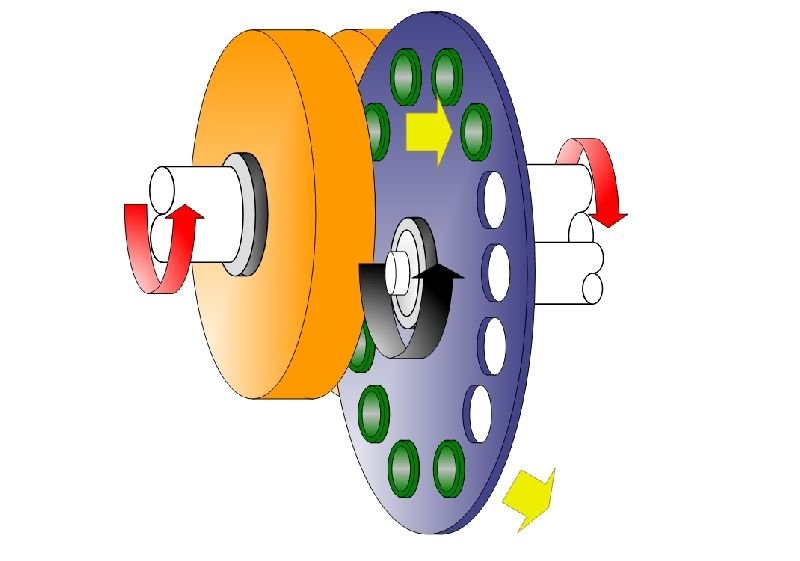

this machine is used for grinding the bearing ring from both faces at same time.it is useful for mass production.

• Country of Origin: India
• Type: Surface Grinding
• Brand Name: K P Industries
• Phase: Three Phase
• Shape: Square
• Certification: ISO 9001:2008 Certified
• Voltage: 440V
• Color: Grey
• Machine Structure: Horizontal
• Condition: New
• Operating Type: Semi Automatic
• Power: 6-9kw
• Warranty: 1 Year
• Driven Type: Electric
• Material: Cast Iron
• Machine Weight: 600-700kg, 700-800kg, 800-900kg, 900-1000kg
• Specialities: Excellent Functionality, Less Maintenance, Durable, Easy To Use
• Finishing: Polished
• Grinding Diameter: 50-150
• Grinding Length: 1-50
• Accuracy: less than 10 micron

• Brand Name: AMW
• Material: Mix
• Driven Type: Combination
• Voltage: 220V
• Color: As Per Requirment
• Country of Origin: India

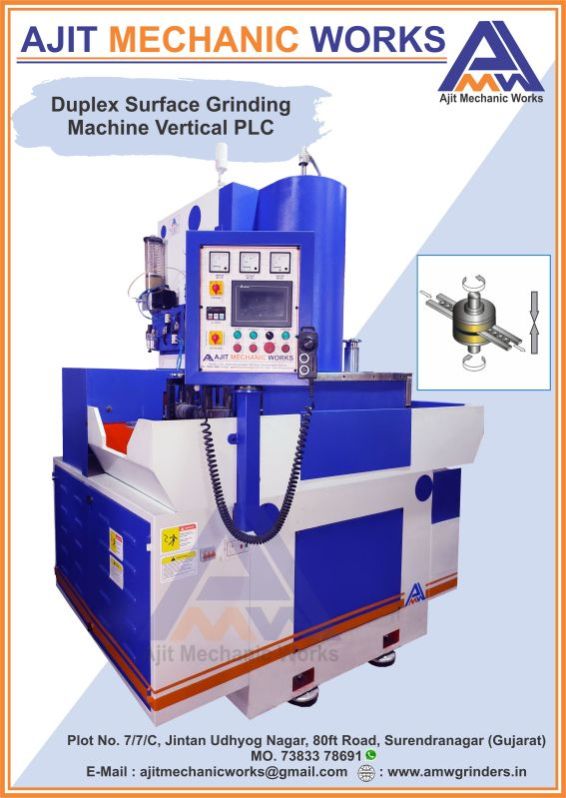

• Type: Duplex Surface Grinding
• Corrosion Resistance: Coated
• Phase: Three Phase
• Shape: Rectangular
• Certification: AMW
• Machine Structure: Horizontal
• Condition: New
• Operating Type: As Requirement
• Warranty: 1 Year
• Machine Weight: 300-400kg

Model LM-3 have filmatic bearing type spindle or hydrodynamic bearing and hydrostatic lobe type bearing both model are available which can give high redial accuracy in jobs ,good Ra value in jobs compare to bearing And we also get very long spindle life compare to other bush or any ball and roller bearings.

• Usage/Application: Manual camshaft grinding machine for grinding cams based on master cam
• Automation Grade: Automatic
• Features: Long operational life, Superior performance, Less maintenance

• Work piece dia.,: max mm 250
• Work piece length,: max mm 100
• Z-axis travel mm: 360
• Features: Work head is having highly alleviated spindle running through high accuracy antifriction bearings.,S

The CNC External Grinding modular machine allows for configuration of huge number of alternatives to accommodate all production requirements. The modern technologies of grinding are recognized with the CNC Grinder. A CNC Grinder is well equipped with diverse sizes including one, two or extra grinding spindles with internal or external machining. The CNC External Grinding Machine provides solutions for internal as well as external grinding for cams including one-offs to the big batch of production grinding. The accessible modules for CNC External Grinding Machine incorporate dressing attachments of CBN as well as corundum wheels, working holding units, and touch-identification during dressing and grinding. The work pieces may be loaded or unloaded on CNC Grinder having customized work handling systems that include robots and gantry loader. These equipments are complemented with environment friendly processing plants as well as exhaust systems of CNC External Grinding Machine. Conventional applications for Cam Grinder incorporate pre- and finishing grinding of the cam rings meant for injection and vane pumps as well as grinding of internal and external polygons.

• Grinding wheel size: 500x50x203.2
• Condition: New
• Grinding wheel motor (HP): 7.5hp
• Coolant pump motor (HP): 0.5hp
• Net weight: 3500kg
• Automation Grade: Automatic
• Tail Stock: hydraulic

Machine Base The machine base is manufactured  of one piece  close grained graded cast iron.  Box type design,  heavily reinforced with ribs, provides high rigidity and stability.   Machine Guideways V & Flat guide ways precisely hand scrapped for Cross (X-Axis) & Table slides (Z-Axis) with turcite coating which gives stick slip free movement Excellent vibrations damping and high positioning accuracy, which insures better lubrications and longer life of guide ways. The X-Axis can be equipped with linear measuring system, depending upon requirements (Optional).   Work Head Dead Centres as standard, live cum dead centres as optional Easy belt tensioning arrangement. Special arrangements provided in front to avoid entry of coolant inside work head.   Wheel Head Cartridge type grinding wheel spindle operating at 45 m/s cutting speed & with precision anti friction bearings. Constant Cutting Speed of grinding wheel though variable speed drive (Optional) Robust wheel head with anti friction bearings is maintenance free has good thermal stability.   Tail Stock Rigid design and facility for adjusting Tail stock quill clearance. Hydraulic actuation (Optional)   Optional Accesories Automatic In-Process Guage IPG automatically and continuously measures the diameter being ground and compares the actual size to pre-set values. Confirming the diameter to the accurate dimension.   Flagging Detects the end face position on work piece,  reduces idle time and ensure safety.   Dynamic Balancing System Dynamically compensates the imbalance of grinding wheel. Balancing system improve the surface finish and geometry of the work piece.   Gap Eliminator / Crash Control This device will automatically detect the setting up or machining condition occurs, the grinding wheel will rapidly retract for safety.   Lineal Scale for X and Z axis Gives actual slide movement feedback to CNC system up to submicron level,

• Weight: 1200 kgs
• Grindable Diameter: Max. 50 mm, Min. 10 mm
• Grindable Width: Max. 30 mm, Min. 03 mm
• Grinding Wheel Size: 300 x 40 x 25.5 mm
• Power Required: 7 HP
• Max. Error in Parallelism: 0.05 - 0.010 (mic.)
• Max. Error in Flatness: 0.005 (mic)
