ASSOCIATED CRIB EQUIPMENTS Waghbil, Thane, Maharashtra

A four drawer cabinet along with a cupboard with one shelf is provided below the 38 mm thick table top. The work bench has got a pegboard at back and lighting arrangement at top. A small shelf on pegboard is also provided. Overall work bench dimensions are 1100W x 600D x 1800H (785 Table + 950 canopy + levelling) and The table top size 1100 x 625 x 38 is 850 mm from ground. Four mounting legs are provided at the bottom. Usable drawer size is 450W x 450D with suitable partitions. Height of the drawers are 75x1, 100x1, 125x1, 150x1 & 175x1. The load bearing capacity of each drawer is 100 kgs with 85% extension.

Material : Steel, Aliminum

Shape : Rectangular

Condition : New

Application : Office

Feature : Water Proof, Strong Flexible, Non Breakable, Long Life

Appearance : Modern

Country of Origin : India

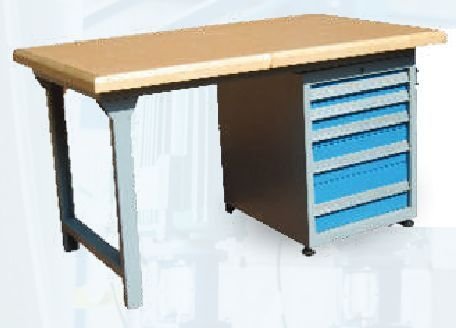

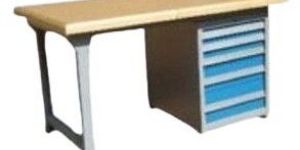

A five drawer cabinet is provided at a side below the 38 mm thick table top., with other side leg. Cabinet dimensions are 610W x 700D x 745H and the overall table dimension is 800D x 835H + Levelling. Mounting legs are provided at bottom. Length suit to the model. bottom. Length suit to the model. Usable drawer size is 500W x 500D fully extendable of height 75x1, 100x1, 125x1, 150x1 & 175x1. The drawers are provided with suitable partitions. The load bearing capacity of each drawer is 100 kgs.

Material : Steel

Surface Finishing : Polished

Shape : Rectangular

Color : Multiple Color Available

Application : Sitting, Office

Feature : Water Proof, Strong Flexible, Non Breakable, Long Life

Appearance : Modern

Country of Origin : India

This is one of the most economic model for transportation and storage of tool holders. A projected tray with rubber mat is provided for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Two rigid plastic handles are given for handling the trolley. Overall dimensions are 755L + 300 tray x 500D x 700H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs .

Material : Aluminium

Shape : Rectangular

Color : Grey

Application : Moving Goods

Loading Capacity : 1000-1500kg

Country of Origin : India

This is the most economical model to keep few number of tool holders. This should be nailed on the wall at a suitable height. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Overall dimensions are 755L x 135D x 225H.

Material : ABS Plastic

Color : Multiple Color Available

Application : Industrial

Thickness : 10-15mm

Country of Origin : India

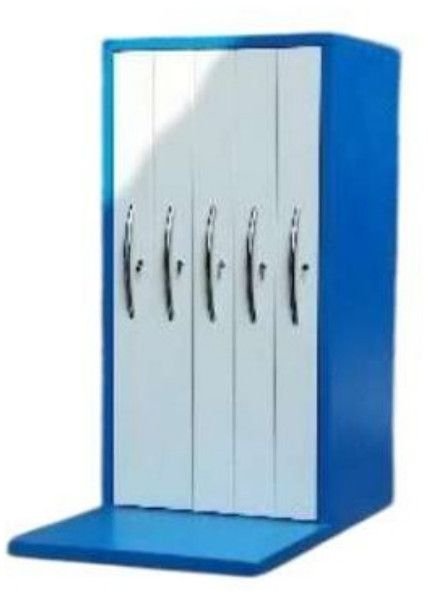

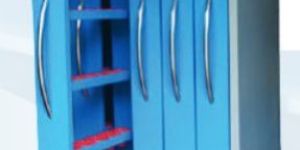

This is a very high capacity cupboard where you can adjust the level of tray as per the tool height. There are 5 vertical panels which hold the tray and move front and back. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Overall dimensions are 950W x 900D x 2000H.

Material : Metal

Finishing : Polished

Color : Multiple Color Available

Cabinet Type : Double Door

Door Type : Sliding

Feature : Dust Proof, Fine Finished, Hard Structure

Appearance : Modern

Country of Origin : India

This fixture has been designed for those who have both BT and HSK series of tool holders. This fixture holds the tool holders on the non-functional diameter, this ensures that the chances of damage of the taper portion is minimal. This also ensures firm grip and no slippage during tightening. An alloy steel toughened adaptor is placed in a steel body which can swing up to 90 degree.

Country of Origin : India,India

Material : Mild Steel

Application : Fixture tools Design

This fixture has been specifically designed for those who have both BT and HSK series of tool holders. It holds the tool holder on a non-functional diameter, which ensures that the chances of damage to the tapered portion are minimum. This also prevents slippage during tightening. An alloy steel toughened adaptor is placed in a steel body.

Country of Origin : India,India

This fixture is designed for those who needs frequent change of tool and pull stud. This is the most rigid design. Fixture is made of steel body with two alloy steel toughened and ground adaptors positioned vertically and horizontally.

Country of Origin : India,India

Material : Mild Steel

This is the most advance type of fixture which takes extra care of its tool holder. Fixture body is made from steel, powder coated. Both adaptors are made from anodised aluminium for extra safety of the tool holder.

This is the basic design fixture made from powder coated steel with alloy steel toughened and ground adaptor. This fixture is most suitable for them who needs to change only the cutter

Country of Origin : India

This is most preferably the economical way to store large number of tool holders. The frame is made out of a tubular section by optimising the utilisation of floor space. Overall size is 875W x 450D x 1525H. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact.

Material : Mild Steel

Application : Industrial

Type : Tool Holder

Height : Up to 5 Feet

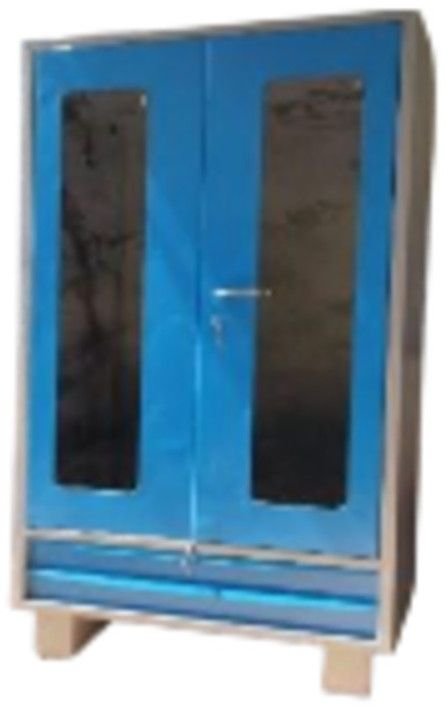

This is a full size cup board can hold large number of tools. This will protect your tool from moisture and dust. Front door have 2 toughened glass window to see the tooling without open it. Tool holders are kept in moulded ABS plastic pocket to protect from metal to metal contact. Overall size is 915W x 480D x 1830H + Leg

Material : Aluminium, Metal

Finishing : Polished

Color : Blue

Cabinet Type : Double Door

Door Type : Swing

Feature : Fine Finished, Long Life

Appearance : Modern

Country of Origin : India

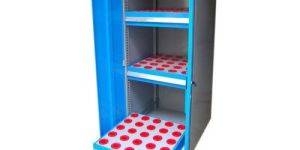

This cupboard has been designed to keep the tools in a dust free moisture free atmosphere. Advantage of this model is that tool can be placed and retrieve easily as they are kept in a movable drawer. Drawers can be adjusted vertically @ 25mm as per the tool height. Tool holders are kept in moulded ABS plastic pocket to protect from metal to metal contact. Overall dimension is 750W x 750D x 1550H.

Brand Name : Machler Engineering

Material : Mild Steel

Color : Multiple Color Available

Cabinet Type : Double Door

Door Type : Swing

Height : Up To 7 Feet

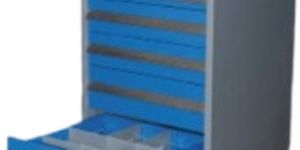

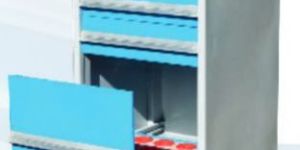

This cabinet has been designed to store various items like tools, cutters, measuring instruments, gauges, clamping elements etc. Each drawer have adjustable partitions which ensure that space can be made as required and also non-mixing of stored items. The bottom drawer holds tool holder in moulded ABS plastic pockets to avoid metal to metal contact. The maximum GPL of tools can be 300mm. Overall size of this cabinet 610W x 650D x 940H. Usable drawer size 500W x 500D. Load bearing capacity of each drawer is 100Kgs with 85% extension. The cabinet have inbuilt anti tilting mechanism and provision for levelling lug.

Material : Cast Iron

Finishing : Coated

Shape : Different shape available

Application : Industrial

Feature : High Quality, High Strength

Country of Origin : India

A five drawer cabinet with a small cupboard with shelf is provided below the 38 mm thick table top. The cabinet dimensions are 1100W x 600D x 745H. The overall dimension is 1200W x 700D x 785H + Levelling. Mounting legs are provided at the bottom. Usable drawer size is 450W x 450D with suitable partitions. Height of the drawers are 75x1, 100x1, 125x1, 150x1 & 175x1. The load bearing capacity of each drawer is 100 kgs with 85% extension.

Material : Steel, Aliminum

Surface Finishing : Polished

Shape : Rectangular

Color : Silver

Application : Office, School

Feature : Water Proof, Strong Flexible, Non Breakable, Long Life

Appearance : Modern

Country of Origin : India

Material : Mild Steel

Height : 300 mm

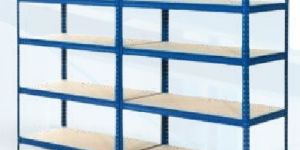

This is a heavy duty rack to sustain high capacity loads. These aremade from heavy gauge material. Shelf height can be adjustedthrough slots provided in the vertical member. There are 4 shelvesin standard. Height of the rack is 2000 mm, length 1000 mm anddepth 450 mm.

Material : Mild Steel

This is a single piece construction for high rigidity. This can accommodate maximum number of tools in a minimal space. Front door have 1 toughened glass window to see the tooling without open it. This protect the tool holder from atmospheric dust and moisture. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Overall size is 550W x 410D x 1925H

Brand Name : Machler Engineering

Material : Mild Steel

Door Type : Swing

Height : Up To 7 Feet

This cabinet is designed to store various items like tools, cutters, measuring instruments, gauges, clamping elements etc. Each drawers have adjustable types of partitions which ensure that space can be made as required and also non-mixing of stored items. Overall size of this cabinet 660W x 700D x 1025H. Usable drawer size is 550W x 550D. Load bearing capacity of each drawer is 100Kgs. with 85% extension. The cabinet have inbuilt anti tilting mechanism and provision for levelling lug.

Material : Mild Steel

Shape : Rectangle

Color : Blue

Material : Mild Steel

Feature : Durable

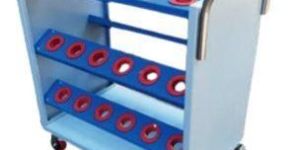

This accessibility aspect stands apart this trolley as the tools can be accessed from both the sides. Trays can be placed as per convenience. They can also be placed on the table by removing from the trolley. A projected tray with rubber mat is provided for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimension are 760L + 300 tray x 505D x 740H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs

Brand Name : Machnler Engineering

Material : Mild Steel

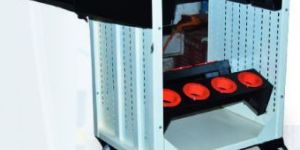

This is the basic model to transport tools from NC room to the machine. In total, 7 trays are provided, 3 at top and 2 each on either sides. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimensions are 760L x 490D x 745H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs.

Material : Metal

Application : Moving The Tools

Country of Origin : India

This cabinet has got 3 drawers of 100H with adjustable partitions and a small cupboard with shelve at the bottom. A magnetic white board at top and rubber mat is provided over the top to protect from scratches. 4” castor wheels are provided to move the cabinet whenever required. Overall size of this cabinet 610W x 550D x 880H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Usable drawer size 500W x 385D. Load bearing capacity of each drawer is 100 kgs with 85% extension.

Material : Cast Iron, Metal

Shape : Different Shape Available

Color : Blue

Application : Industrial

Feature : High Quality, High Strength

Country of Origin : India

A 3 drawer cabinet provided in one side below the 38 mm thick table top. The table is supported by 4 legs. Overall cabinet dimension is 510W x 700D x 375H and The overall table dimension is 800D x 835H + Levelling.with mounting legs are provided at bottom. Length suit to the model. Usable drawer size is 400W  500D fully extendable of height 100x3 The drawers are provided with suitabl partitions. The load bearing capacity of each drawer is 100 Kgs.

Material : Stainless Steel,Mild Steel

Shape : Rectangular

Application : Industrial Use

Type : Work Benches

Appearance : Modern

Country of Origin : India
