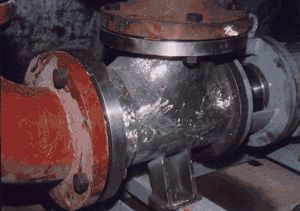

Axial Flow Pump Dealers in Thane

We strongly believe in providing total customer satisfaction through excellence in our products and solutions. Radial Flow Centrifugal Pump in an Axial Flow Pump is of fabricated Elbow construction, with back pull out construction in valuable cost. This is a compact design with suction, delivery being interchangeable as per the site condition; accordingly the leading/ trailing tips are interchanged for the propeller. We are fully capable to provide replaceable wear ring as per customer requirements fitted in the casing: to ensure continues high efficiency; initially we keep 1 mm diametrical clearance which needs to be checked during preventive shut downs. With the help of our back pull type of design the dismantling of pump (rotating parts) can be done without dismantling the piping fitted to casing & since belt driven, angle spacer behind the pump to remove, rotating parts without dismantling motor. Our product is highly in demand in various industries like Textile Industries Chemical Industries Pharmaceutical Laboratories. Our vast experience coupled with the strict adherence to stringent quality procedures enables us to produce Magnetically Driven Axial-Flow Pump of the highest norms complying with International standards. A team of highly proficient professionals carefully plans the entire process and then proceeds accordingly. We are one of the leading Centrifugal Axial Flow Pump Manufacturers. Records of spares for one year services:- Propeller : -1Ball Bearing : -1Double row ball bearings : -1Oil Seal : -2Circlip : -2Casing Gasket : - 1Mechanical Gasket : -1 set Dismantling :- With the help of our back pull type of design the dismantling of pump (rotating parts). Can be done without dismantling the piping fitted to casing & since belt driven, angle spacer behind the pump to remove, rotating parts without dismantling motor. SPECIAL REMARKS FOR AXIAL FLOW PUMPS Axial flow pumps are having suction from top disharge from side (end) flange or Vice VersaThe direction of rotation of pumps shaft is anti clockwise looking from pulley end for Top suction & clockwise for end suctionTwo holes are provided at the gland plate. One is for inlet of water and another Is for outlet of water. This water is used for cooling seal face as per standard.The water supply should be from clear, cold tap water (pressure not more than 1kg/cmAssembling pulley drive :- for assembling the drive the motor should be moved Towards the pump so that the belts may be placed in their respective grooves by hand Under no circumstances should the belt be forced on to the pulleys with crowbar Wedges, screw or any other type of sharp tools.When V belts have been placed in the pulley grooves the motor then moved away From be then moved away from pump to apply uniform tension to V – belts with the Help of tensioning bolts on base plate, Tensioning Measure the Center distanceAt the center apply force 2 to 3 kg (20 to 30 N). At right angles to belt. The belt should deflect 16 Mm for every meter of center distance. After drive has been running for few days V Belts will Have seated in the groove and drive tension might have reduced. The tension should be corrected again as per above method Applications KEW Pumps has delivered pumping solutions for the most demanding applications in the following industries:- Textile IndustriesChemical IndustriesPharmaceutical Laboratories. Quality We strongly believe in providing total customer satisfaction through excellence in our products and solutions. We listen to our customers and provide them with quality products in a safe and responsible way. Every product is put through a series of quality checks, before the actual delivery. Our vast experience coupled with the strict adherence to stringent quality procedures enables us to produce products of the highest norms complying to International standards. A team of highly proficient professionals carefully plans the entire process and then proceeds accordingly.

• Application: Agriculture
• Weight: 10-20kg
• Color: Multi-colored
• Voltage: 110V
• Automatic Grade: Semi Automatic
• Power Source: Electric
• Pressure: High Pressure, Low Pressure, Medium Pressure

Range of Application: Model KAF & KAFV Series 5",6",8",10",12",14",16",18" ,20" Chemical: Forced evaporator & Crystallizer circulation Paper: Black Liquor concentration , Xylene Crystallizer. Food: Cane , Maize , Sugar evaporator. Municipal: Sewage sludge circulation, sewage disposal. General: Raw water pumping. Range of Temperature:  Upto 200 degree C Range of Pressure: Upto 10.5 Kg/(cm)2 Range of Flow: Upto 3500 (m)3/hr Heads: Upto 9 mtrs. Design: Features: Back pull out design  coupling with spacer element  for rapid dismantling & assembly with propeller & sealing element.. Stuffing box housing designed with jacketing arrangement for cooling or heating. Stuffing box chamber matches the elbow design of casing, so that smooth flow with  minimum losses take place, The K factor for calculating losses across the elbow does not exceed 0.1 to 0.3 Available in horizontal single elbow, vertical cantilever  & special design as required. Pumps can be furnished with either clockwise or counter clockwise direction of rotation looking from motor end. Direction of flow reversible, The discharge flange can be suction for liquid in which case the impeller is reversed end for end, resulting in suction pressure of rotation looking from motor end.
