Bellow Seals Dealers in Thane

• Material: Metal
• Shaft Dia.: 19mm TO 100mm (0.750” TO 4.00”)
• Pressure: 25 bar
• Temperature: – 20˚C TO +350˚C (-4 °F … 662) °F
• Pack Type: Box

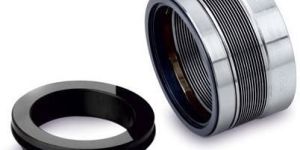

Features Stationary bellows seal Balanced Uniform seal face loading Independent of direction of rotation   Advantages Over 35 years of running reference in the field Ideal seal for low as well as high temperature applications Ideal seal for high speed application Can take more shaft misalignment and run-out than rotary seals Seal is free from shaft vibration effect   Materials Face Materials Silicon Carbide Tungsten Carbide Metallic Carbon   Metal Parts - SS 31   Bellow Material AM350 Hastelloy-C Inconnel-718   Secondary Seal: Grafoil   Recommended applications Process industry Oil and gas industry Refining technology Petrochemical industry Chemical industry Pharmaceutical industry Power plant technology Water and waste water technology Building services industry Food and beverage industry Sugar industry Horizontal and vertical pumps, agitators, mixers

• Shape: Round
• Color: Black
• Condition: New
• Automation Grade: Automatic
• Metal Parts: SS 316/SS 304
• Shaft Diameter: 10mm to 100mm
• Pressure: 10 Bars ( Max )
• Model: UE - 26 - SRW, UE-30-RBW
• Seal Faces: CARBONISIC / TC Vs CERAMIC / SIC /TC
• Secondary Seals: NITRILE / VITON
• Temperature: (-}20°C to (+) 150°C
• Speed: 2850 rpm ( Max )

"Teflon Bellow Mechanical Seals" are Teflon Bellow seals designed to handle highly corrosive liquids. These mechanical seals are outside mounted with iimple installation procedure and hence cost effective for corrosive media sealing. These has designated as Fixed & replaceable bellow face respectively. For replaceable version there is flexibility for selection of face material as perthg) media to sealed, which can be easily removed & replaced & is highly desirable in severe applications.

This type of seal can be used regardless of direction of rotation, this is because the torque acting is not transmitted through the coils.Instead the torque is driven along the rubber bellow which fits on the shaft. These seals are generally used in sewage applications and waste water applications.

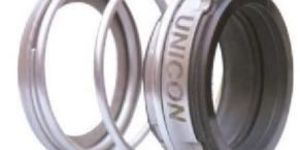

Rubber Bellow Seals are mainly use in waste water treatment plants for the sewage applications.Due to its compact design it can be easily mounted. It has a unique rubber bellow secondary seal, which provides a high degree of axial flexibiiity and protects the shaft sleeve from fretting. Rubber Bellow Mechanical Seals can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is through the spring and spring holder.The single coil spring will avoid effluent pa

We introduce ourselves the veritable teflon Bellow Seals manufacturer and supplier India. Our manufacturing process is concerned for delivering sophisticated bellow seals, rubber bellow seals and teflon bellow seals. Wide use of technology and imported machinery in manufacturing process make our bellow seals high in performance, durable and reliable. Finest raw material is being used in during manufacturing them which enhance their durability and authenticity. Industry is lacking with trustworthy manufactures and exporters who can deliver superior quality products at very genuine prices. Our products are capable to perform under opponent circumstances.

UFL650: The UFL650 mechanical seals are specially developed for high temperature applications with wide range of sliding velocities. Its torque transmission exerts no strain on the bellows. This seal design requires no elastomer secondary seals. UFL850N: Mechanical seals in the UF850N series have a universal field of application. They are designed for extreme temperatures for high viscous medias. UFLWT800: Seal faces are positively driven to protect the bellows from torsional stress. Secondary seals are made of high temperature resistance flexible graphites.

Hi-tech seals offers a wide range of light duty, industrial and agricultural mechanical seals used for centrifugal pumps and compressors. The product creates a seal when the two flat seal faces are pushed together by axial force from the closing mechanism. When the seal is in operation, the pumped fluid product lubricates the two seal faces.
