Bottle Washing Machine Dealers in Thane

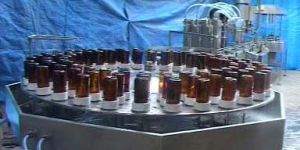

We bring to afore the Rotary Bottle Washing Machines that are accredited for their compact & elegant design, hi-tech features, unrivaled performance and long-lasting life. These Machines are specifically designed to match the concerns of washing for glass and plastic bottles. Get them from us in desired specifications at the competitive rates. More About Rotary Bottle Washing Machine : The machine operates on the Rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles. The bottles are loaded on rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with varying neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.   Operation : The bottles are loaded on the subsequent indexing part of rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water, and sequence of various washing media to suit specific requirement   Salient Features : Geneva Mechanism. Four inner (Included one air wash) & one outer. Sequence of washes to customer's choice. Easy operation. Stationary nozzles eliminate contamination of water cycles. Easy loading and unloading. Individual solenoid valve for each washing sequence that eliminates carbon plate and other accessories reduces leakage and maintenance to minimum. Higher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.). The stationary nozzles avoid chipping of bottle necks. Pumps and tanks are mounted on portable stand for easy maintenance. Bottle guide system especially for lightweight bottle. Pumps and Tanks are mounted on portable stand for easy maintenance. Separate panel control to avoid any short circuit due to spraying of water. S.S. glycerin fill pressure meter.

We always make use of quality raw materials for the production of our products as we comply with all set quality standards. We are trusted for the timely delivery of orders as we are assisted by the modern transportation facilities. Features Operating Modes - Auto & Manual. Servo motors is used for accurate indexing.

• Type: Rotary Bottle Washing Machine
• Weight: 100-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg
• Color: Black, Brown, Grey, Light White
• Voltage: 220V, 380V, 440V
• Condition: New, Used
• Automatic Grade: Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic
• Warrenty: 1 Year, 2 Years

We are the main supplier of this product.

Salient Features Modular Design Energy Saving-Heat/Stream/Water/Power No Toppling of Bottles Occupying Less Space PLC Based-Download real Time data via Scada System Structure has been sand blasted for asthetics and increase life of structure. Energy Saving Overflow and Buffer System.

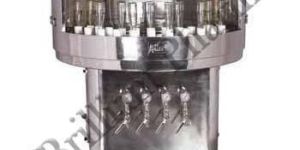

Rotary bottle washer is compact, highly dexterous and graceful in look. It has many functional features as per GMP standard to wash containers of glass, plastic or other material. The machine operates on the rotary principle with GENEVA instrument and requires manually loading and unloading of bottle.

Automatic bottle washing machine is designed to clean various types of glass bottles or plastic/metal containers, by subjecting to a series of distinct, processing operations. The washing is of various duration. The machine consists of two stainless steel tanks one for hot detergent and other for fresh water. Both are fitted with independent stainless steel centrifugal pump. The hot detergent tank shall be fitted with thermostatically controlled heater. The rated capacity is approx 3600 containers/hr.   Specifications: Motor for main drive: 0.5 hp 415 V, 3 PhaseMotor for pump: 1.0 hp 415 V, 3 PhaseElectric heater: 3 kw Available Models: 64 Jets 96 Jets   Bottle Washing Machine   The unit consists of motorized brushing unit with two chucks to hold various size of brushes mounted on Stainless steel socking tank. One side of tank is fitted with twelve SS rinses with water tap connection. Available Models: Two – Head with 12 rinsers with SS Tank Four – Head with 24 rinsers with SS Tank

Geneva Mechanism. Four inner (Included on air wash) & one outer. Sequence of washes to customer’s choice. Stationary nozzles eliminate contamination water cycles. Individual solenoid valve for each washing sequence. That eliminates carton plate and other accessories reduce leakage and maintenance to minimum. Higher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.) Pumps and tanks are mounted on portable stand for easy maintenance. Bottle guide system especially for weight bottle. Separate panel control to avoid any short circuit due to spraying of water.

Our Automatic Rotary Bottle Washing Machine reflect our intricate design of out trained professionals which breathe in quality, durability and flawlessness making these machines highly demanded in markets across the globe. Designed to clean vials, bottle and similar containers with utmost precision. Distinct processing operation are carried out by the machine. Machine works on AC current. The holders are fitted with spray nozzles with adjustable neck rings for wahing various sized of bottles, The rotting plate is fitted with 16 manifolds which have 5 spraying tulips bottle holders each, The rotation speed is one round per minute with the capacity to wash 2000 to 9000 bottles an hour.

Description :semi automatic bottle brushing and washing/rinsing machine is suitable for all kinds of bottles, vials, jars etc. It consists of following units.brushing unit: available in 2 or 4 heads. Have ss covered body and robust construction. Rotating chucks are provided to hold the brushes of suitable size for brushing the bottles.rinsing unit: each unit is made out of ss304, consists of 12 ss rinsers. Valve is provided for controlling flow of water. Leak proof construction. Whole unit is constructed over a drainage tray to avoid spillage of water out of tank. Rubber corks are provided over rinsing tray to avoid chipping of bottles.ss tank with sink: brushing and rinsing units are fitted on the ss tank. Waste water is stored or can be drained out by using sink. The whole structure is made out of 16 gauge ss.motor drive: 1hp, single phase.output: up to 30 bottles with 2head, 1 rinsing unit.

Flavored Milk Bottle Washing Machine

   : The machine operation is very simple. take two empty bottle and press it on machine head. When we press the bottle on the machine head the bottle get clean. The machine works on compresser. Tt is phenumatically operate machine.     MACHINE OPERATION : The machine operation is very simple. take two empty bottle and press it on machine head. When we press the bottle on the machine head the bottle get clean. The machine works on compresser. Tt is phenumatically operate machine. TECHNICAL SPECIFICATIONS : Approx. dimension (L x H x W) :   525 x 900 x 410 (mm) Air require :   4-6 Kg Bar Operator Require :   1 person Production :   As per Operator’s Efficiency 40-45

• Type: Linear Bottle Washing Machine
• Weight: 100-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg
• Color: Black, Brown, Grey, Light White
• Voltage: 220V, 380V, 440V, 450V
• Condition: New, Used
• Application: Washing Machine
• Automatic Grade: Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic
• Warrenty: 1 Year, 2 Years
• Capacity: 90 BPM - 225 BPM
• Air Pressure: 6 bar
• Size: 15 ml to 500 ml
