Cable Fault Locators Dealers in Thane

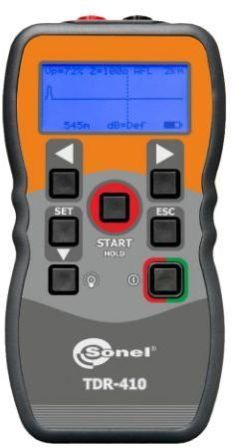

We are one of the respected names engaged in the process of supplying quality TDR-410 Cable Fault Locator at nominal rates. Our well-structured warehouse is the reason behind the safety of the products we offer. Moreover, we have installed advanced amenities essential for the safe storage of the lot. Features: Advanced technology Precision made Long life & sturdy

• Fault Distance Range: 300 m, 1 km, 3 km
• Measurement Mode: Auto
• Fault Measurement Accuracy: ± 1% ± 1 m
• Pulse Width: 30 nsec to 3msec
• Pulse Waveform: Square
• Pulse Amplitude: 24 V pp
• Cable Constant (VOP) range: 50 to 150 m/μs
• Measurement dead zone: 1 meter
• Auto Measurement dead zone: 15 meter
• Output Impedance: 50
• Sampling Speed: 50
• Gain Range Control: 1:10
• Display Readout: LED Display
• Power Supply: 12 V rechargeable battery 3.2 Ah Capacity built in charger
• Timer: Built in timer automatically switches off after 5 minutes to save the battery power
• Weight: About 1 Kg
• Dimensions: 205 mm x 160 mm x 54 mm approx.
• Accessories: Operation/Service manual, Mains cable, Output cable, Carrying case
• Environmental Spec.: Operation: 0 C to 50 C, Storage: -10 C to 60 C
• Working Temperature: 0 C to 55 C
