Cartridge Heaters Dealers in Wagle Estate, Thane

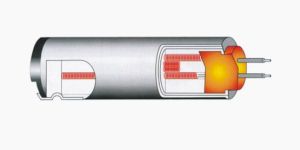

Anupam Electroheat’s Low & Medium Density Cartridge Heater is developed for heating applications not requiring high watt densities and sheath temperatures not exceeding 300°C. These Cartridge Heating Elements are designed in maximum watt densities of 30 to 45 watts per square inch depending on applications. Such a Cartridge Heating Elements of various sheath diameters can be used in any assembly, equipment or machine. The Low & Medium Density Cartridge Heater can be absolutely customized to suit customer’s needs. Such Cartridge Heating Elements can be an economical option for customers not requiring high process temperatures. Cartridge Heating Elements are designed & calibrated perfectly to ensure that optimum conductivity between the resistance coil and the Cartridge Heater is achieved. Construction The Low & Medium Density Cartridge Heater design consists of a helically wound resistance coil made from nickel-chrome wire, evenly stretched and strung through holes in a round ceramic insulator. The element assembly is inserted into a Chrome Nickel Steel. This alloy provides the best combination of physical strength and resistance to heat oxidation up to 450°C. Specially selected grain size and high purity magnesium oxide is used to fill all remaining space inside the ceramic insulator to increase thermal conductivity, dielectric strength, and provide longer operating life of the Cartridge Heater. DIE PLATEN HEATING DIE CASTING INDUSTRY EXTRUSION LINE HOT MELT ADHESIVES PACKAGING INDUSTRY PAPER INDUSTRY - EMBOSSING ROLLERS PREFORM MOLDS RUBBER MOLDING INDUSTRY SEAL BARS SEMI CONDUCTOR INDUSTRY TEXTILE INDUSTRY - HEATING OF CUTTING KNIVES

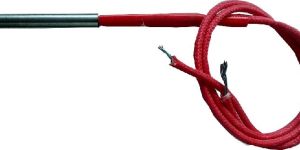

cartridge heater is manufactured in ss, brass pipes with high purity mgo (magnesium oxide powder),high quality in chrome wire.cartridge heater is inserted into close fit hole of dies mould or plates. cartridge heater are manufactured in any diameter and length.mgo powder insulation assures high electric strength and fast heat transfer and low oxidation of the resistance wire. it is used to heat rubber molding dies, hot plates, plastic injection moulds, sealing jaws of packaging & pharmaceutical machines. cartridge heater with built in thermocouple temperature sensors for runner less mould are available.   application : for die heating of plastic, rubber & packing machines in ss, brass tuhes. .

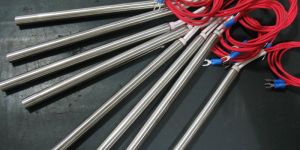

LEI™ cartridge heaters provide excellent heat transfer and are normally sheathed in Brass or Stainless Steel tubes. These heaters are designed for push fit into holes of nominal diameters. They are used for heating Dies, Molds, Platens and various other applications demanding localized heating.   LEI™ Cartridge heaters are available in 2 Types: Low and Medium Density Cartridge Heaters. High Density (Swaged) Cartridge Heaters.

High watt density split sheathed cartridge heaters uses less power, runs more efficiently and survives more that of cylindrical type conventional cartridge heaters. Due tornits elongation capability it clutches the mould when energized leaving no air gap and contractsrnwhen it cools down parting the following advantage.  maximizes heat transferrn easy maintenancern reduces the cost of operation
