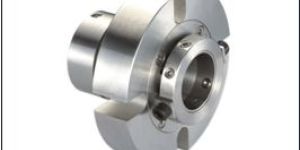

Cartridge Seals Dealers in Thane

• Packaging Type: Carton Box
• Material: Metal
• Temperature: - 20
• Pressure: 1.6 MPa or less
• Linear Speed: 10 m/s or less

Features Single end, Unbalanced,  Independent direction of rotation,  Cartridge shaft seals. Structure: Single End Pressure: Medium Pressure Mechanical Seals Speed: General Speed Mechanical Seal Temperature: General Temperature Mechanical Seal Performance: Wear and Weak Corrosion Standard: Specifically Designed for Grundfos Stamped Stainless Steel Centrifugal Pumps Model NO.: SSI-GF Balance: Unbalanced Specification: Inner Diameter: , 12 mm, 16 mm,  22 mm   Materials Rotary Ring Face: Carbon/SiC/TC Stationary Ring Face: Carbon/SiC/TC Elastomers (elastomer bellows for GB-B): NBR/Viton/EPDM Springs: SS304/SS316 Metal Parts: SS304/SS316   Recommended applications Oil Water Weak acid Alkali  Corrosive mediums.

• Model: UE - 75 - SSC
• Seal Faces: :CARBON/SIC./TC Vs SIC./ TC / CERAMIC
• Secondary Seals :: VITON/ TTV/ FEP / KALREZ
• Metal Parts: SS 316, HASTELLOY, ALLOY 20
• Shaft Diameter: 20mm to 150mm
• Pressure: 10 bar ( Max )
• Temperature: :(-}20°C to (+) 180°C
• Speed: 3000 rpm (Max)

Sealwell cartridge series mechanical series are assembled cartridge which can be directly installed on pump this seal has an integral sleeve with gland plate.the seal is pre-installed and do not require any dimensional adjustment during fitment on the pump these type of seals are best suited for slurryviscous applications .

"Single Cartridge Mechanical Seals" are used where there is corrosion and erosion in the seal media. This seal have good demand in sealing of rotation equipments. Single Cartridge seal are special purpose multi spring balance mechanical seals designees for use in abrasive or solid media.

CTX: CTX are fully preassembled. They are balanced, can be used in either direction of rotation and come with all the connections you need for the most common modes of operation.
