Ceramic Heaters Dealers in Thane

We are supplier of ceramic infrared heaters of germany ( elstian ) . We would like to introduce ourselves as an authorized dealer for ms. Elstein –werk m. Steinmetz gmbh & co. Kg germany which are known for best quality manufacturer of ceramic infrared heaters. Please find our company catalogue. We are quoating our best price in white and yellow colour.

Elstein SHTS super high temperature heaters were developed to increase the previous maximum possible surface rating of ceramic panel heaters from 64 kW/ m² to 77 kW/ m².The SHTS heaters, produced using the hollow casting ceramic process, are filled with thermal insulation material and have a special black glaze and a gold-plated back. At an operating temperature of 900 °C, over 75 % of the electrical energy supplied is transferred to the material to be heated as medium to long-wave IR radiation.Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.IR radiation panels can be assembled using REO reflectors, REF construction sets, EBI and EBF construction elements, BSI and BSH panels as well as mounting sheets MBO.The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

• Brand Name: COMMONWEALTH
• Material: Ceramic
• Finishing: Polished
• Shape: Round
• Color: White
• Condition: New
• Power: 400
• Power Source: Electric
• Size: WATTAGE

ceramic infrared  heater for surface heating & closed chambers

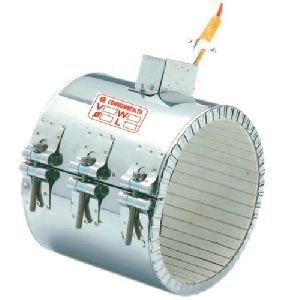

Anupam's Air Cooled Ceramic Band Heaters are designed for super efficient and economical cooling on extrusion and blow moulding machines. Heater band is 60% open by perforated metal sheet which ensures maximum surface exposure for better cooling. The heater band is covered with Blower cover for mounting the Blower. Advantages of air cooled over liquid cooled operation includes lower cost, easy replacement, low maintenance, no leakage problem and uniform temperature control. APPLICATION For Melting the plastic granules prior to Extrusion. FEATURES To heat and cool the barrel Low Maintenance Easy Replacement Improves Quality of finished products Space Saving Increases Productivity Available with Various Diameter, Length, Voltage, Wattage and Configurations. Perforated heater with fins to provide faster cooling. To heat and cool the barrel Low Maintenance Easy Replacement Improves Quality of finished products Space Saving Increases Productivity Available with Various Diameter, Length, Voltage, Wattage and Configurations Perforated heater with fins to provide faster cooling These Fins are available in width of 45mm, 60mm & 75mm Aluminum Fins take 25% & Copper fins takes 35% less time to reach set temperature of 350°C than standard Fins Aluminum Fins take 30% & Copper fins takes 35% less time for cooling from 350°C to 100°C than standard Fins If working temperature requirement is around 300° to 350°C, it is recommended to use Aluminum Fins as it is cost wise economical Aluminum & Copper cooling fins have a maximum operating temperature of 450° C These fins can also be used in mounting between heaters as cooling fins.

• Full Length: 245mm

Our Ceramic Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against much damage. We supply Custom Wattage Ceramic Infrared Heaters as per the requirement of our clients. Our Ceramic Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against much damage. We supply Custom Wattage Ceramic Infrared Heaters as per the requirement of our clients.

APPLICATION For Heating Machines, shapes & tools of plastic processing industry. Technical process – oriented applications   CONSTRUCTION Sheathing – aluminized steel, rust resistant steel, or stainless steel are used with clamps & screws to affix the heater rigidly on cylinder.Heating elements – The element is wound uniformly to eliminate hot spot. For temperature upto 600°C, the heater is also available with helix coiled element insulated with grooved refractories.Spirally wound heating coil insulated with Ceramic Insulators & cover with SS sheet, made as per required sizes with termi-nal connection & fixing clamps CONNECTION In the standard model the connection boxes extend with tangential cable introduction over the total width of the band heater. Shortened connection box seated on a definite axial position is possible under observation of technical features. Construction of the connection boxes, clamping & shutter fittings, perforation & bores in radial as well as axial position is possible, depending upon requirement. Heat Resistant, insulated, metal braided cable of any convenient length. STANDARD SIZES & CAPACITIES Inner dia. - 80 mm to 300 mm Width - 35 mm to 300 mm Supply (Volts) – Any convenient Voltage under the pre condition that it should be technically feasible. Power (Watts) - Any convenient Wattages up to 40 W / Sq. inch.

We offer high quality range of ceramic heater that is manufactured by using special ceramic material "stealite" with high thermal conductivity. Widely used in various industries such as Textile, Chemicals, Fertilizer and others, these are appreciated across the globe owing to the following features:• Versatile• Especially to heat the cylinders (barrels) on all types of plastics (s) processing machinery• Higher wall densities provide higher operating temperatures• Maximum sheath temperature up to8000C• Maximum wait density = 50 watts / square inches• By the use of higher temperatures, faster shot sequence is possible

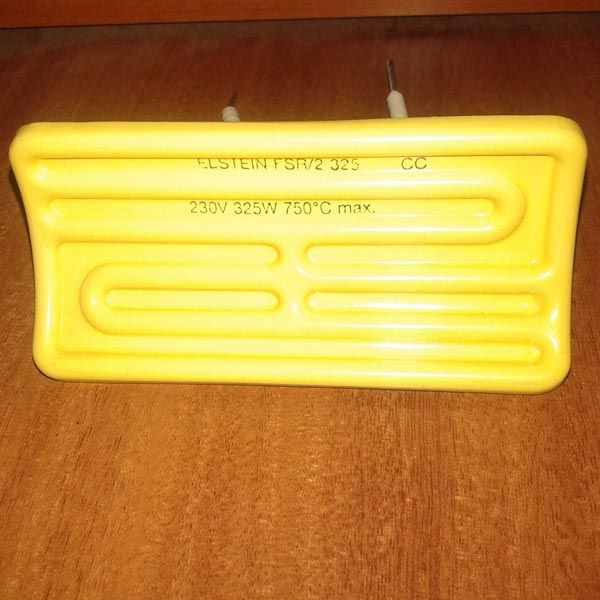

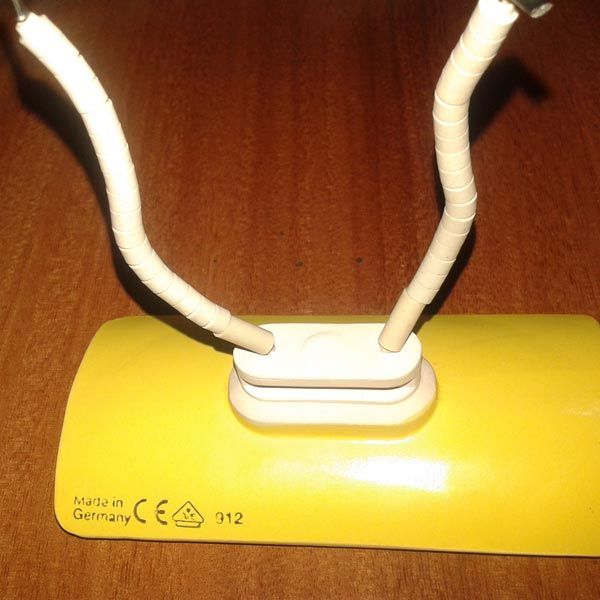

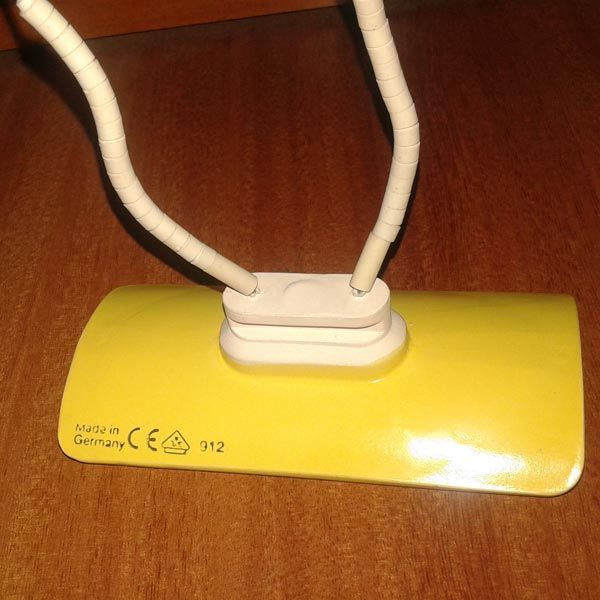

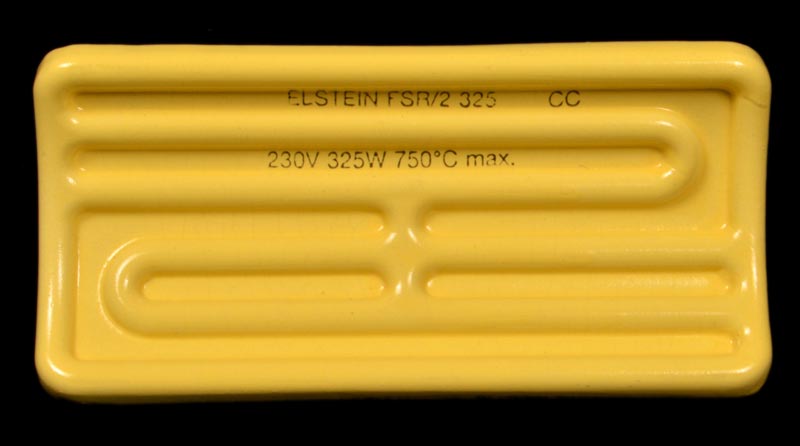

Ceramic Infrared Heaters.The Lakshmiheaters Ceramic infrared heaters consist of a ceramic body, which is filled with highly efficient heat insulation material. The heating coil is burnt into the ribs of the radiation area. The high quality heat insulation ceramic material introduced into the backside of the radiation element reduces the temperature in the wiring space. Heat loss on Non-radiant side is very little due to special design of ceramic layers. Crystal clear white or yellow glazing is done to help good radiation and the elements emit energy in the range of 5-10 UM. By using life prolonger in Ceramics, Element life is increased. The heat up curves for radiation elements with various power rating is shown in the diagram. The Elements are designed to withstand sudden voltage fluctuations.   Lakshmiheaters Manufacturers & Exports CIR Infrared Heaters, Ceramic Infrared heaters, Ceramic Infrared Heating Elements, Industrial Infrared heating, Energy Efficient Infrared Heaters, Quartz Infrared heaters, Short Wave Infrared heaters, Medium Wave Infrared heaters, Infrared heating Modules, Infrared heating panels, Quartz Space heater, Twin Tube Medium Wave Infrared heaters and Quartz Infrared heater Elements.   Application : Heaters for Thermoforming & Vacuum Forming Machines Heaters for Plastic forming Machines Heaters for Shrink packaging tunnels Heaters for Lamination/ lamination Machines Curing rubber heaters Drying textiles heaters Heaters for Drying lacquers and paints

• Brand Name: Elstein
• Power Source: Electric
• Features: Easy to use

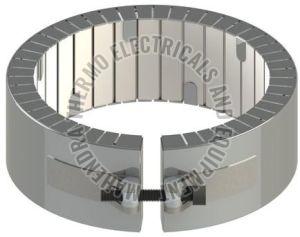

Ceramic Band Heaters are manufactured by using special ceramic insulation material ' Steatite ' and fabricated with stainless steel sheet.  The heating coils is made of high quality Nichrome wires.The spot welded clamp bars, Allen screw clamping provides a uniform clamping. Ceramic Band Heaters are used for heating of moulds,dies,nozzles and barrels on all types of plastic processing machinery. Heaters having high watt densities provide high operating temperature, resulting into high productivity. Maximum sheet temperature up to 800 degree Celsius   Application : These heaters are suitable to apply heat by conduction to cylinderical surfaces-Injection Moulding M/cs, Plastic & Rubber Extrudgers, Dies, Drum Heating, Blow Moulding M/cs.

• Power: 650 W
• Voltage: 220-230 V
• Wavelengths: 2-10 micron
• Weight: 150 gm
• Dimensions: 6 x 24.5 x 4.5 cm
• Operating Temperature: -55 Deg C up to +350 Deg C
• Maximum Effective Temperature: Up to 550 Deg C
