Clariflocculators Dealers in Thane

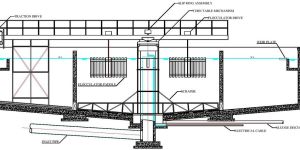

Peripheral driven clariflocculator: avighna claritec™ offers rotating structural bridge cum walkway spanning half or ¾ of the tank diameter with hand rail. Features of peripheral driven clariflocculator • in if type clariflocculator: slewing ring assembly is placed over the r.c.c center pier. • in hf type clariflocculator: center mechanism (concentric dual drive) is placed over the r.c.c center pier. • traction bridge rest over the center mechanism slewing ring and supported with hinge pinpivot arrangement. • slip ring (current collector) assembly is provided. • diameter of the flocculation tank is determined according to the diameter of the clarifier tank. • peripheral drive is designed with m.s.r.l. c.s.r.l along with the traction wheel running on the tank wall. • flocculation paddles coverage ranges from 20 to 25% of the cross-sectional area of the flocculation tank. • flocculator drive is comprised of: 1. drive mechanism (act-dh act-cdd) 2. worm reducer (make: as per client requirement) 3. chain drive with guard 4. motor (make: as per client requirement) • drives for flocculator are selected according to the application and the required torque, to achieve the tip speed of the flocculation paddle up to 0.3 – 0.4 mminute. • traction drive is comprised of: 1. traction wheel 2. worm reducer (make: as per client requirement) 3. chain drive with guard 4. motor (make: as per client requirement) • traction drives for clarifiers are selected according to the application and the required torque, to achieve the tip speed of scraper to 2.5 mminute. Optional features provided by avighna claritec™ • mechanical or electro-mechanical overload protection devices. • surface skimmer & v notch weir plate. • telescopic sludge discharge valve. • stator and rotor type clariflocculator.

Fixed Bridge Across the tank Rotating Bridge
