Coating PAN Dealers in Thane

• Power Source: Electric
• Material: Stainless Stee
• Application: Industrial
• Packaging Type: Container
• Voltage: 110 V, 200V
• Accessories: 0.3 micron HEPA filtration unit

We are an apex Elicon Coater Pharmaceutical Machinery Manufacturer, based in Thane, Maharashtra. We offer a range of Elicon Coater that is widely applicable for the purpose of coating pallets, granules and tablets. The Auto Coating Machine manufactured by us is built from Stainless Steel and has user-friendly applications. Applications Film coating with organic solvent Film coating with aqueous coating Sugar coating Features All contact parts made of SS 316 as per GMP standard Perforated pan with more than 55% perforation opening for process optimization and to reduce the losses during the process. The unique perforated pan design utilizes a totally enclosed, highly efficient air flow system for maximum drying uniformity and minimum process air usage. Pan speed control via VFD. Front entry stainless steel arm, with facility to adjust the angle pf spray guns is provided LHS and RHS wall of the machine will be insulated with Glass wool to prevent the heat lose. Optional Accessories Air Velocity measurement Inlet air humidity measurement HEPA maintenance monitoring Chilled water control valve ( De Humidification valve) PLC Control with color Touch Screen Display Connectivity of SCADA System Inlet & exhaust air ducting

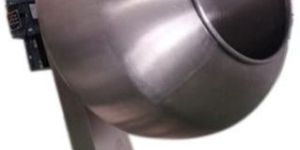

Coating Pan is a semi ellipsoidal sized pan that comes with a circular mouth for charging, discharging tablet. Coating Pan is mounted at an inclination of 45 degree and is mainly used for coating sugar, making pellet such as pill, water mill, money and other medicines. Moreover, Coating Pan is used for mixing, polishing and smoothing grainy materials. Thus, with adherence to quality standards, Coating Pan manufactured and supplied by us is regarded for its optimum quality and cost effectiveness.

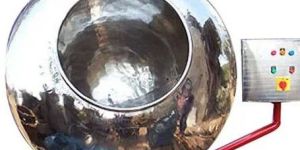

We are the leading manufacturers and suppliers of coating pans based in Thane, Maharashtra. We provide a qualitative range of coating pans that are used for coating tablets in pharmaceutical or chemical industries. Coating Pan This product comes with speed pulley system and motor and worm reduction gears and is customized according to the requirement of the client. It has SS316 semi ellipsoidal pan with HP 3 phase motor and suitable control panel. Coating system is conventional for manual coating and sugar coating.   Construction And Operation :  Pan : SS 316 semi ellipsoidal size pan with a circular mouth for charging & discharging of tablets Pan mounted at an inclination of 45 degrees to the horizontal. Drive Assembly : Consists of a suitable HP 3 Phase, 440 V, and 1440-RPM TEFC motor with suitable worm reduction gearbox and cone pulley arrangement to give three-speed output. Hot Air Blower : The unit is provided with a hot air blower consisting of suitable HP 3 Phase 440 V, 2880-RPM TEFC electric motor & centrifugal blower with damper delivering required CFM. The air is heated by means of   suitable electric heater to give air at 30 to 90 degrees Heater with thermostat control and flexible hose pipe Control Panel : Unit provided with suitable control panel with starters and push button to actuate the drive and for blower The circuits consists of MCCBs, relays and contractors in series Ample overload protection is provided by the MCCB and the relay Wires coming out of the connections are numbered for easy recognition. Mounting : The motor and gearbox is mounted inside sturdy MS frame and the pan mounted on the Gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in   remote location if required  Finish : All joints argon Arc welded and all SS Parts polished to suitable finished required of pharmaceutical equipment MS parts painted to smooth finish. Operation : The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.   Salient Features :  Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316/304 & non contact parts AISI 304. Conventional coating system for manual film coating and sugar coating. Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti vibration pad. Closed powerful pan drive with reduction gearbox and motor by variable speed pulley. Movable hot air blowing system with electric heater. Easy to replace polishing pan and other size coating pan.   Optional Features : A.C. frequency Drive for pan. Fixed or detachable type baffles. Interchange different size Pan & Polishing Pan Atomized Spraying system with Spray Gun, Peristaltic Pump and Solution tank and Electro Pneumatic controls. Pressurized vessel with spray gun. Flame Proof Electrical. Pellegrini type Coating machine.   Safety Features : Overload pressure release mechanism.   Application : Coating Pan is used for are used to sugar coat tablets, pills, etc in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds.   It used in various industries such as Pharmaceutical Chemicals Food

• Material: Stainless Steel
• Size: 12 inches to 16 inches

Trustworthy shipping facilities, competent workforce and prompt delivery of the products make us stand out in the industry. With the assistance of our safe and automatic warehousing system, we are able to store the entire lot of products in a secured manner. The entire lot is cross checked at regular basis for ensuring complete safety of the products.   Features : Safe to use Fine finish Longer life Specifications : Adaptability for the lower size of coating pan and polishing pan. Validation documentation can be provided on request. Matching suitable exhaust blower available. Heaters & blowers are electrically interlocked. Perforated bowls with suction for increased productivity, energy conservation, and dust control. GMP / Standard models

We are offering Suitable Exhaust Blower Available Heaters & Blower Motor Is Electrically Interlocked & enclosed in enclosure MOC SS 304 / 316 / 316 Angle Inclination Of 45 Degree And Can Be Adjusted As per Requirement cGMP Construction With High Pharmaceutical Finish With Documentation. Our products are available in different size range from 12, 24, 36, 42, 48, 60 to 72 inches

• Warranty: 12 Months
• Condition: New

Vats & Vessels Coating Pan is suitable for Tablet Coating. Coating process is complex and requires careful monitoring and control to ensure satisfactory results. The film coating process as such is a combination of four processes going on simultaneously:   Distribution of coating material on large number of tablets Mixing of large batch for homogenous result Drying or evaporation of solvent Solvent vapour removal By optimizing each process in relation to each other, Vats & Vessels Coating Pan gives the best results. Coating Pan is of Semi - Ellipsoidal shape with circular opening at the top. Pan is mounted at an inclination of 30° to 40° to the horizontal and it is driven with worm and worm wheel type gear box and electric motor. Machine is designed with M.S. fabricated structure and all arrangements are inside the enclosure - except electric control air filter and S.S. Pan.

• Uses: Coating & Polishing. Gives finest coating on tablets & granules
• Model: STD / GMP / Tilting
• MOC: S. S. 304 Q. / 316 Q. (contact parts)

Optional accessories / attachments S. S. Baffles inside the Pan SS Lid Hot air blower - 440 V, 2880 RPM TEFC motor & centrifugal blower with damper delivering 100/200 CFM (+20%).Finned heater capacity 1kw / 2kw / 230 V to give air at 30 to 90 thermostat & pipe Explosion / flame proof / hose proof motor SS Fishtail for hot air distribution Control Panel -

Get in touch with us for obtaining Coating Pan! We are a prominent Manufacturer, Supplier and Exporter of Coating Pan based in Maharashtra, India. Our Coating Pan is fabricated in-line with the international quality standards making use of preeminent quality metal and ultra-modern machines. It comes with compact hot air blower with inlet air damping. The mouth of our Pan is open so that easy loading can be done. One can obtain our Coating Pan at market-leading prices.  Highlights : MOC : SS 304, SS 316,SS 316L Size : 12’’to 72” Constructed in circular mouth opening for easy loading and unloading of tablet Baffles (welded or detachable type)

We offer high quality range of coating pan. These come with a circular mouth for charging & discharging of tablets pan mounted at an inclination of 45 degrees to the horizontal. These are designed to apply seasoning and coating to fried & roasted products in a uniform manner. We offer our range at market leading prices. specifications : pan : ss 304 semi ellipsoidal size pan with a circular mouth for charging & discharging of tablets pan mounted at an inclination of 45 degrees to the horizontal. drive assembly : consists of a suitable hp 3 phase, 440 v, 1440 rpm tefc motor with suitable worm reduction gear box and cone pulley arrangement to give three speed output. hot air blower : the unit is provided with a hot air blower consisting of suitable hp 3 phase 440 v, 2880 rpm tefc electric motor & centrifugal blower with damper delivering required cfm. The air is heated by means of suitable electric heater to give air at 30 to 90 degrees heater with thermostat control and flexible hose pipe. control panel : unit provided with suitable control panel with starters and push button to actuate the drive and for blower the circuits consists of mccbs, relays and contractors in series ample overload protection is provided by the mccb and the relay wires coming out of the connections are numbered for easy recognition. mounting : the motor and gear box is mounted inside sturdy ms frame and the pan mounted on the gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in remote location if required. finish : all joints argon arc welded and all ss parts polished to suitable finished required of pharmaceutical equipment ms parts painted to smooth finish.

Being a client-centric company, we are engaged in manufacturing and supplying Coating Pan. Coating Pan, offered by us, is made under the guidance of our professionals. Our quality checkers perform various tests on Coating Pan before the final delivery. Further, we offer excellent packaging of Coating Pan for easy and smooth transition.

We are offering all types of Coating Pan that are available from us at very nominal prices.
