Coaxial Cable Dealers in Thane

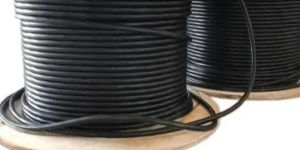

Coaxial Cable is a Cable consisting of an inner conductor, surrounded by an insulating layer made from a flexible material with a high dielectric constant. It is then surrounded by another conductive layer (typically of fine woven wire for flexibility, or of a thin metallic foil), and then finally covered again with a thin insulating layer on the outside. Tony Cables manufactures high quality coaxial cables available in different types such as RG-59, RG-6, RG-8, RG-11, RG-218, RG-58, RG-62 etc.   Salient features:   Strong and Durable Flame resistant Available in armoured construction High frequency cables with low loss signal quality

• Country of Origin: India
• Type: Coaxial Cable
• Color: Black
• Feature: Durable, Quality Assured
• Type: RG174
• Application: Ultrasonic Testing
• Country of Origin: India
• Size: 2M

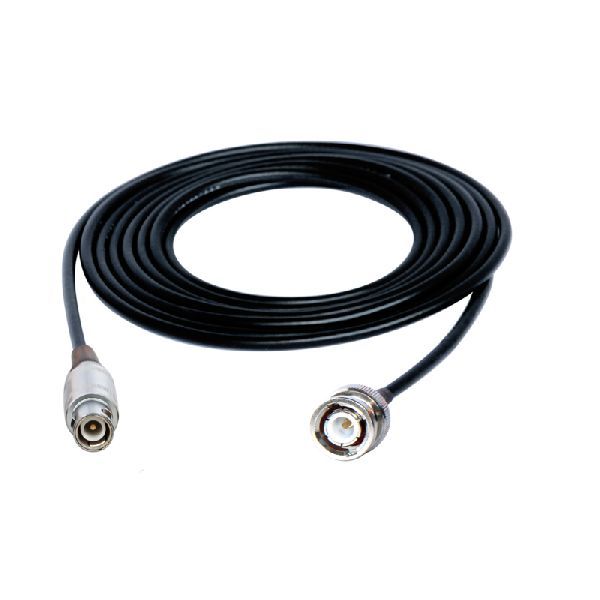

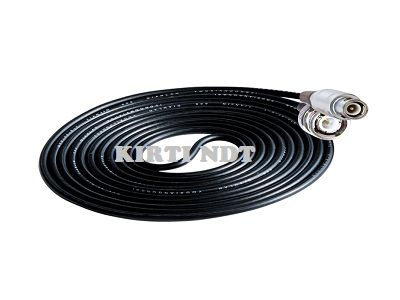

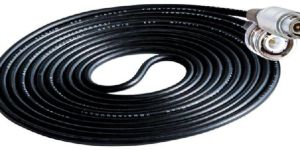

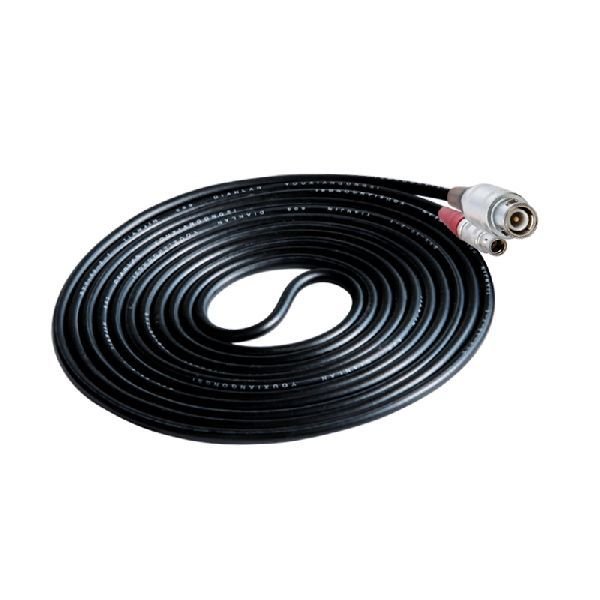

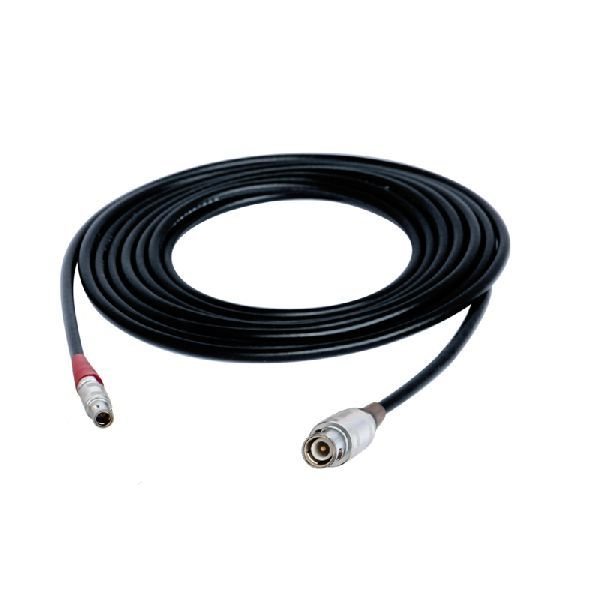

We offer full range of ultrasonic testing cables. These cables are manufacturer with reinforce junctions between the cable & the connector.  Cables are available in single, dual with Lemo, Mini Lemo, BNC & Microdot connector. We can also offer customizes cable as per our client requirement, Our standard Cable Length 2Meter.

• Impedance: 50 ohms
• Velocity of Propagation: 85 %
• Dielectric Constant: 1.32
• Time Delay: 1.17 nS/ft
• Capacitance: 23.4 pF/ft
• Inductance: 0.058 uH/ft
• Inner Conductor: 0.53 ohms

• Centre Conductor: Solid copper
• Dielectric: Solid PE, or Foam PE
• Shielding: Aluminum foil
• Braiding: Bare copper or Tin Copper braiding 95% coverage
• Sheathing: Overall PVC sheath

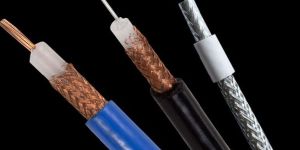

Co-Axial cables- RG-6, RG-8, RG-59, RG -11 etc.

We offer high quality Co Axial Cables that are known for durability and strength. These flame resistant wires are available in different types such as RG-59, RG-6, RG-8, RG-11, RG-218, RG-58, RG-62 etc. Based on advanced Bi-Metallic technology, we Manufacture different kinds of RF coaxial RG/AU cables having PTFE insulation. Available in armoured construction, these cables are high frequency cables with low loss signal quality.   Techno flex Cables have rich experience of manufacturing superior quality Digital VSAT satellite telecom cables and Radio Frequency Co-axial cables, RG Series 6 / 59 / 11 / 58 / 213 / 8AU Special Features : • High Band width • Low attenuation Value • Minimum structural return loss • Low loss in signal quality• Ideal for power pass application • Clear in reception Reduced cross talk. Coaxial cabling is the primary type of cabling used by the cable television industry and is also widely used for such as Although more expensive than standard telephone wire, it is much less susceptible to interference and can carry much more Coaxial cable is used as a forsignals. Its applications include with their antennas, computer network connections, and distributing signals. One advantage of coax over other types of radio is that in an ideal coaxial cable the carrying the signal exists only in the space between the inner and outer This allows coaxial cable runs to be installed next to metal objects such as gutters without the power losses that occur in other types of transmission lines. Coaxial cable also provides protection of the signal from external Coaxial cable differs from other used for carrying lower frequency signals, such as in that the dimensions of the cable are controlled to give a precise, constant conductor spacing, which is needed for it to function efficiently as a radio frequency Application : Specially used in electronic and digital instrument wiring / CCTV & Audio Visual VSAT / DATA cabling and recorder Multilocation network or surfacing etc.

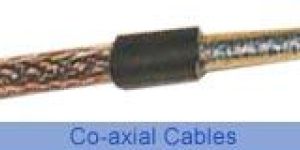

These cables are used for transmission of Video and Audio signals and are used in CATV Industry. Coaxial cables are the cables meant for radio frequency and have two conductors in the same axis hence called coaxial cables.

We offer high quality co-axial cables that are known for durability and strength. These flame resistant wires are available in different types such as RG-59, RG-6, RG-8, RG-11, RG-218, RG-58, RG-62 etc. Based on advanced Bi-Metallic technology, we manufacture different kinds of RF coaxial RG/AU cables having PTFE insulation. Available in armoured construction, these cables are high frequency cables with low loss signal quality.

co axial cables, Cctv Systems, Fiber Optic Cable, Fire Alarm
