Crane Brake Dealers in Thane

Electromagnetic brake, Emco Simplatroll DC Electromagnetic Flange Mounted Brakes are designed for high consistent operating characteristic. With torque range 7.5-2500Nm. These Brakes(Normally Off) are available with 3 different design to stop the drive or load side either shaft, pulley, sprocket. These are maintenance free & provided with unique pre-stressed spring made of German Spring Steel & coil with F insulation to give million of operations without fatigue. With asbestos free friction materials & long life.

• Warranty: 1 year, Extended warranty on service basis

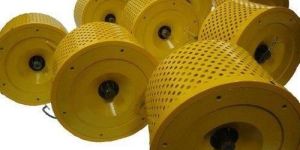

• Type: Air Cooled Eddy Current Brake
• Cooling Method: Self Cooled
• Torque Range: 1 to 1000 Nm
• Rated Current: 5A, but lower side depends on braking torque rating
• Speed: 9000 rpm
• Motor Power: 0.09 to 110 kW

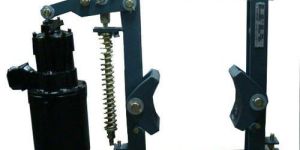

"ORTON" make Thrustor operated brakes are suitable to work on 415V.  3 Phase A.C. supply for a wide range of drum sizes from 100 mm to 400mm dia with braking torque ranging from 6KgM. to 110 KgM.  The mechanism is balanced to give equal shoe clearance throughout the face of drum.  The torque is applied by heavy duty compression springs or weight with thrustor.Thrustor is an electro-hydraulic device designed to exert a constant force to any mechanism to be operated.  This thrust can be effectively used in actuation of any part of mechanism like levers, to achieve the desired result.  The self contained, compact unit needs only 415 V/3 Ph electric supply to actuate it.   FEATURES : 1) Self contained unit-needs no external components or accessories 2) Constant thrust at all positions of working stock. 3) Smooth & Jerk free linear motion. 4) Compact & maintenance free. 5) Lower power inputs & low heat generation 6) Permissible upto 720 operations. 7) Thrustors are totally enclosed with IP-55 degree of protection

MITOOL Electro- Hydraulic Thrustor Brakes are suitable for 400 440 volts 3 phase A.C. Supply for a wide range of drum sizes from 100 mm to 600 mm dia higher sizes can be supplied.

These Brakes are suitable for A.C. supply uptp 440V. & are available for a wide range of Drum Sizes from 100mm to 400mm dia. These brakes are available with rated torque ranging from 130Kg. for the smallest brake (100mm dia drum), upto 6900 Kg. cms. (400mm drum dia.) Construction Base & Brakes are Cast Iron high grade, Shoes are self-aligned, easily removable with fabric lining fixed with aluminum rivets. Magnet is solenoid type with laminated magnetic circuit having pole faces to ensure quiet operation. Operation Compression springs provide the necessary working pressure to apply the brake. Release is effected by a single phase electromagnet. A hand release lever is fitted to the lock brake in the "off" position when required.

• Type: Electro Hydraulic Thruster Brake
• Material: Mild Steel
• Certification: ISI Certified
• Voltage: 415 v
• Condition: New
• Drum Diameter: 100-500 MM
• Application: EOT Crane, Engineering and Heavy industries
• Finishing: Powder Coated
• Phase: 3 Phase
• Automation Grade: Semi-Automatic

sintered plates, sintered clutch button, Friction Plates, Brake Shoe

Solenoid, Epoxy Encapsulated Coils, solenoid valve coils, Door Latch

Overhead Crane Motor Brakes

eh thruster brakes, electro magnetic disk brakes, Clutches, pneumatic brake

Cranes Components and Kits, hook blocks
