Crate Washer Dealers in Thane

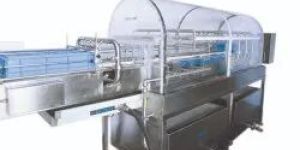

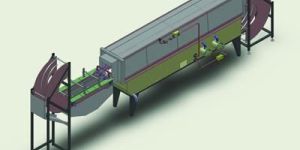

Salient Features Output (depends on crate size) : 25-30 Crates/min. Complete structure in SS and main drive with VFD. Crate Washer is used for removing debris from inside the crate and cleaning it from all the surfaces. The crate is brought in vertical position from an overhead conveyor and inverted in a dumper. The crate is moved through a tunnel with spray jets from all sides of the crate. The machine creates a space between each crate in order to clean the leading and lagging surfaces. Cleaning is done in three stages, pre spray, detergent spray and final spray. The crate travels upside down through the tunnel. Adjustments are provided to handle the various sizes of crates.

• Loading Type: Front Loading
• Production Capacity: 100 CPH -3000CPH
• Speed: 100 to 3000 crates/ nr
• Power Consumption: 15 - 30 HP
• Working Pressure: 60 - 120 Kg/cm
• Brand: Goma
• Usage/Application: milk crates,fruit vegetable crates,poultry crates,bakery crates,sweets crates cleaning / was

• • Capacity: 1800 Crates per hour
• • Length: 1700 mm
• • Volume (Direct from Bottle washer): Nil
• • Nozzles: 24 No.
• • Pump: 10 HP (Client supply)
• • Length: 1650 mm
• • Volume: 360 Lts.
• • Nozzles: 24 No.
• • Recirculating Pump: 10 HP
• • Main Tunnel Motor: 0.75 hp
• • Outfeed Conveyor Motor: 0.75 hp (CLIENT SCOPE)
• • Infeed Conveyor Motor: 0.75 hp (CLIENT SCOPE)
• • Dimensions: • 7500 mm (L) X 1650mm (W) X 2750mm (H)
• • Infeed Height Inclined (from – to): 900 / 2400 mm
• • Outfeed Height: 600 mm
• • Fresh Water Temp.: Ambient
• • Washing Tem.: 52o C. Hot Water
