Diaphragm Pump Dealers in Thane

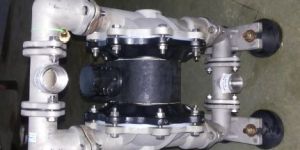

The air valve directs pressurized air to the back side of diaphragm 1. The compressed air is applied directly to the liquid column separately by elastometric diaphragms. The diaphragm acts as a separation membrane between the compressed air and the liquid. Driving the diaphragm with air instead of the shaft balances the load and removes mechanical stress from the diaphragm, dramatically extending diaphragm life. The compressed air moves the diaphragm away from the center block of the pump. The opposite diaphragm is pulled in by the shaft connected to the pressurized diaphragm. Diaphragm 2 is now on its air exhaust stroke; air behind the diaphragm has been forced out to atmosphere through the exhaust port of the pump. The movement of diaphragm 2 toward the center block of the pump creates a vacuum within chamber 2. Atmospheric pressure forces fluid into the inlet manifold forcing the inlet valve ball off its seat. Liquid is free to move past the inlet valve ball and fill the liquid chamber. Air-operated double diaphragm pumps can move anything from fine chemicals (gentle, non-shearing action), to abrasive and viscous slurries (no close-fitting parts, low internal velocities), and almost any other product that can move. A few of the thousands of products now being pumped: Paints & solvents Pigments Resins Construction water & waste Beer & wine Mine tailings Chemicals Oils & lubricants Glues & adhesives Dyes Foods Tanker loadingunloading Marine barges Ceramic slips, slurries & glazes Latex Driller's mud Inks & printing liquors Against filter press Low density powders Handling Barrels, Jerry Cans, Carbouys.

We offer 100% oil-free Diaphragm Vacuum Pumps. They can be used either as vacuum pumps or oil-free compressors and are designed for delivery of uncontaminated air, gases or va pours. They are suitable for producing oil-free compressed air or vacuum.» Heads are made of aluminum alloy castings » Diaphragms are made of neoprene rubber or other elastomers depending on applications » Specially designed motors in single - phase and three-phase constructions » Pumps are mounted on rubber pads for silent, vibration-free running » Due to compact design, these pumps are ideal for laboratories and original equipment   manufacturers » Compact, light-in-weight, hence portable

• Condition: New
• Application: Pressure Updown
• Power: Air
• Pressure: 2500 bar
• Fuel: Hydraulic Oil
• Structure: Ship And Industrial
• Theory: Load Updown
• Input Voltage: DC 24 V
• Pump Capacity: Up to 125 M3/Hr
• System Capacity: Up to 840 M3/Hr

• Number Of Stages: Single Stage
• Material: Cast Iron
• Voltage: 380 V
• Noise Level: 60 Db
• Max Vacuum: 560 mm of Hg
• Range: 600-5400 m3/hr
• Barometric Pressure: 760 mm of Hg

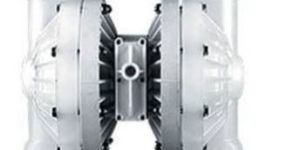

• Type: Air Operated Diaphragm Pump
• Application: Acidic Material, Barrels, High Viscous Liquid, Slurry Transfer
• Weight: 6 - 68
• Color: Grey, White
• Condition: New
• Driven Type: Air Operated
• Pressure: 0-10Bar
• Warranty: 1yr
• Pipe Size: 0.5Inch, 1.5Inch, 1Inch, 2Inch
• Automation Grade: Manual
• Flow Rating: 0-500LPM
• Brand Name: Airtech Pumps
• Material: SS/PP/PVDF / Aluminium

• Brand Name: SUTECH PUMPS
• Material: PP
• Application: LIQUID TRANSFER
• Power: 4 BAR
• Pressure: 4 BAR
• FLOW RATE IN LPM: 25
• MAX HEAD IN METER: 30
• OUTLET AND INLET SIZE: 1/2 INCH

max flow rate :      23lpm (6gpm)port size :     inlet: 12.70mm (1/2" bsp)discharge: 12.70mm (1/2" bsp)air inlet: 6.35mm (1/4" bsp)air exhaust: 12.70mm (1/2" bsp)suction lift : dry: 1.45m (4.75') wet: 2.83m (9.28')teflon : dry: 0.05m (1.64') wet: 0.90m (2.95')max particle size (dia) : 2mm (0.078").

• Type: Automatic
• Certification: CE Certified
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Pressure: 10-20Bar
• Warranty: 1 Year

We are the main supplier of this product.

Pumping speed from 130 m3/hr to 22000 m3/hr Reliable and robust design Simple construction Oil free vacuum generator High reliability Combination with all kind of backing pumps (Rotary Piston / Vane Pump or LRVP or Dry Pump) Long span of life Widely used for industrial applications

• Specialities: Easy installation, Dimensional accuracy, Fine finish, Sturdy design, High performance, Excellent quality

We supply Mechanical Vacuum Booster pump Manufactured by Reputed Indian manufacturers and Foreign Manufacturers. We take complete responsibility to integrate in your system, Booster pump size selection, Installation, Commissioning and after sale service of the pump. The boosters are in twin lobe design and capacities available are from 200 m3Hr to 10,000 m3Hr.

SV-PUMPS Chemically resistant diaphragm type Vacuum Pumps are dry running pumps for neutral, aggressive or corrosive gases or vapors and constant vacuum. Process gases are transferred without contamination, No Contamination during transfer, Evacuation and compression, For Aggressive gases and vapors.

• Max Flow Rate: 10 Ltr/Min
• Model: ME- 10
• Head: 3- 7 m
• Max Vacuum Inches of Hg: 27
• Max Pressure Psi: 25 PSI
• Motor: 1/25 HP
• Dimensions Approximately: 90 x 145 x 85 mm

We are offering diaphragm type vacuum pump. Salient features: no lubrication required noiseless performance absolutely portable totally oil free construction practically maintenance free all parts are made from special graded aluminum die cast material for light weight and good strength diaphragms are made of special 2 – ply nylon reinforced neophrence rubber special diaphragms also available (teflon, viton, etc.) valves made of ss 316 material built in macro suction filter extra large bearings for trouble free and smooth running pumps available with single as well as 3 phase motors pumps available with flame proof motor (model htc-45-fm) pumps available with 122448 volts dc (model htc-15dc-1500) pumps available with chemical sensitive parts (pp, teflon contact parts) (crp suffixed models) pumps available with ss 316 contct parts pumps available in 110 v ac motors pumps available for gas charging in acs (model htc-25-ax) ideally suited for original equipment manufacturers

• Features: Low noise, Easy to dissassemble and repair,No Leak, Durable
• Power Supply: 220V - 50Hz - Single Phase / 380V - 50Hz - Three Phase

• Certificate: CE ISO
• Model Number: Athena
• Supply Ability: 100 Piece/Pieces per Month
• Place of Origin: Maharashtra, India
• Classification: Other
• Lead Time: 1 week

Is suitable for pumping all types of liquids that can pass through a pipe or a hose. The robust Mandar pump can handle everything from water to sludge in the low flow range and offer versatility in wide variety of applications. The pump is excellent in situation where portable and submersible equipment is necessary. It can run dry without damage to the pump or valves.

• Type: Air Operated Diaphragm Pump
• Application: Acidic Material, Barrels, High Viscous Liquid, Slurry Transfer
• Weight: 100-150kg, 150-200kg, 200-250kg, 250-300kg, 50-100kg
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Air Operated
• Pressure: 0-10Bar, 10-20Bar, 20-40Bar, 40-80Bar
• Warranty: 1yr, 2yrs
• Pipe Size: 0.5Inch, 1Inch, 3Inch
• Automation Grade: Manual, Semi Automatic
• Flow Rating: 0-500LPM, 1000-1500LPM, 500-1000LPM

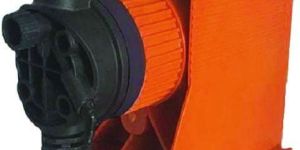

The driving member in this pump is a flexible diaphragm. The advantage of this arrangement is elimination of all gland packings and seals which are exposed to the liquid being pumped. This is an important feature when used with hazardous, toxic or corrosive liquids.   Diaphragm Metering / Dosing Pumps( Series FDD ) DIAPHRAGM PUMPS: Diaphragm Pump is Hydraulically operated with inbuilt Relief valve. Diaphragm Pump are positive Displacement reciprocating type. Diaphragm runs in oil bath which increases the life of Diaphragm. Hydraulic oil operated pumps are available from 2 Ltrs/hr to 6000 Ltrs/hr & Pressure up to 10 kg/cm2 with assurance of 100% Leak Proof. Diaphragm works as a seal for the liquid. Diaphragm Pumps has inbuilt pressure relief valve acts as a safeguard for Diaphragm when the pressure increases beyond the rated pressure.
