DISHAA ENGG. & AUTOMATIONS LLP. Thane West, Maharashtra

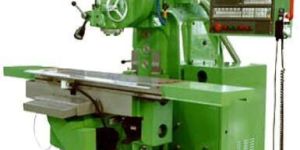

Vertical Milling Machines have a spindle that moves in a vertical orientation over the table, working on the top and bottom sides of the object being machined. Vertical milling machines lend themselves to standing machinists and detailed work. These machines tend to be taller than they are wide since their operation is vertical, which works well when dealing with die sinking. Die sinking is when a cavity of a particular size and shape is machined into a steel block. The opening can then be used for molding plastic or for forging, coining, or die-casting.

This universal drilling machine is a square column type drilling machine. It is mainly used for counter-sinking, spot-facing, drilling, tapping, boring, reaming etc.

Stronger, faster and Deeper Bends Our 3 axis CNC press machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features. Power-Bend Pro Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level with its user friendly CNC controller and low cost hydraulic maintenance. Our Products is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.   Combination of speed and Power High quality and repetitive bending is obtained by using synchronized cylinders and valves. Automatic utilisation of all axes on startup. All our metal bending machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest technology Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm. Well-known top and bottom tool brands are long lasting hardened and provide precise bending. Silent high pressure pump.   High Free Fall Speed High Bending Speed High Returning Speed     General Features Chrome coated cylinders are machined with 0,001 mm precision and pistons are specially hardened. Original clamps are user friendly and machined with high precision. Front support arms are slideable along machine length and easy to adjust. Compact and well-known brand Bosch-Rexroth hydraulics are produced according to CE standards. CNC press brake adopt wwo photocells on sides for rear guard. Fast tool tightening. Optic linear scales are sensitive up to ± 0,01 mm. Synchronized working cylinders will give you the best bending result with its perfect repeatability ratio. 2 axis ultra strong backgauge system (X=800 mm and R), with ± 0,01 mm. repeatability, moves along rails and ball screw, bending length controlled by CNC controller, foldable back gauge fingers for reverse bending applications. Multifunctional and highly programmable, DELEM DA52S CNC controller. The metalworking machinery uses SIEMENS electrical system. Automatic axis referencing when machine is turned on. Side guard is standard meeting CE regulations.   Your best bending solution This CNC hydraulic press brake has perfect configuration for sensitive bending and economic solutions. Precise results for long and deep bends. Continuous sensitivity with crowning system. Long lasting rigid body is also suitable for heavy duty applications. Easy maintenance. You can bend longer and deeper parts with maximum repeatability with standard DISHAA machines.   Standard Equipment Height adjustable and movable sliding front support arms. Top and bottom tools are surface hardened by special treatment. Promecam easy clamping system. Delem DA52s CNC controller. CNC controlled strong X=800 mm back gauge 410 mm throat depth. 2 back gauge fingers Scales in metric and inches. Crowning system in bottom beam 2500/…/4100 hydraulic crowning and from 600 tn and above motorized crowning is standard. Foot pedal is produced according to CE standards and suitable for single and multiple bends. 2 photocells are placed facing each other for rear guards. Covers for cylinders and top beam Preadjusted electrical requirements based on customer’s geographical area.   Delem DA52s CNC Control system Numerical, one page programming Quick, one-page programming Hotkey navigation 6,4″ VGA colour LCD (TFT) Up to 4 axes (Y1, Y2, and 2 auxiliary axes) Crowning control Tool/material/product library USB, memory stick interfacing Servo, frequency inverter and AC control for backgauge axes. Advanced Y-axis control algorithms for closed loop as well as open loop valves

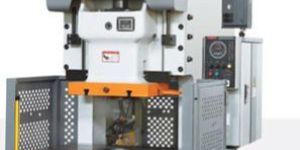

Main features of Mechanical Eccentric Presses Incredible pressing accuracy. Steel welded frame with high rigidity. Motor with inverter. Combined wet friction clutch. Rectangular hexahedral lengthened guide; ocp-315/400 with octahedral lengthened guide. Hydraulic overload protector. Ocp-25/45: manual adjusting, scale indicated. Ocp-45: optional elec. adjustment with digital display. Ocp-63 superior: elec. adjustment with digital display. Lifting balance cylinder. Imported dual solenoid valve. Forced grease lubrication. Integrated panel (elec. cam included). PLC controller. Ejector. Optional: air cushion, light curtain, automotive device.   Specifications of Mechanical Eccentric Press

W11S-Series Hydraulic 3-Roller A cylinder can be rolled, including the pre-bending of both ends, feeding the plate forward through the rolls, one time only. The operator should find only one position for each side roll, to get the part finished which is supported by permanent lubrication technology (bearing life period without refueling).

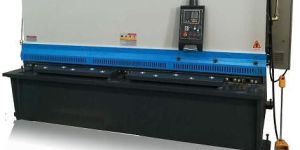

DISHAA manufactures a hydraulic swing beam shear for cutting of sheet metal with thicknesses between 4mm and 6000mm.

The cutting beam of hydraulic guillotine shear has been designed in inner-inclined structure with adjustable cutting angle and blade gap. The upper beam is able to move on the linear guide under the push of cylinder, to realize the shearing action.

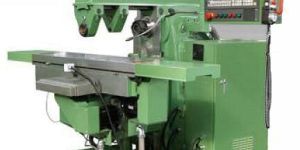

Horizontal Milling Machines have a spindle or cutters mounted on a horizontal arbor above an X-Y table. Horizontal mills are optimal for machining heavier pieces because the cutters have support from the arbor, as well as a bigger cross-section area than a vertical mill. The design of the horizontal milling machine allows for the rapid removal of material off of the piece one is machining. These types of milling machines can range in size from something small enough to fit on a tabletop to room-sized machines

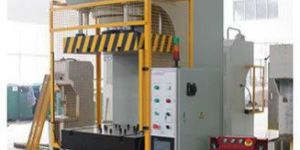

Features : The C-Type High Speed Press is one of the new generation of plate process and developed by DISHAA. C-frame design for large operating spaces – suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line. Totally European design, monoblock, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts, slide and bolster tables with T-slots. The C-frame hydraulic press uses a variable flow piston pump – offers high pressure resistance, high velocity, durability and low noise. Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency. Hydraulic pipe system uses integrated circuits – manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch, Germany. Protective fence and the safety interlock to ensure the operation safety. The hydraulic press has a movable single-hand pedal switch, easy to operate. Front side covers with safety switches, back light safety guards (Category-4), foot pedal conforming to CE regulation. Guiding device: the metal fabrication equipment adopts four cylindrical location guiding to make sure of the steady precision, and it’s easy to test and maintain. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic. This gap press uses PLC control, is flexible and safe. djustable proximity switches allows stroke adjustments in seconds. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe. The metalworking machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA. Dual control you can select to use: a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop. b) movable single-hand pedal switch. Optional touch screen terminals offer. a) Data storage of mould(s) and manufacturing conditions. b) Reduced mould replacement time and calibration, fabrication requirements. c) Programmable memory for working conditions, displays pressure, stroke, spend data, etc; one cycle process sequence.

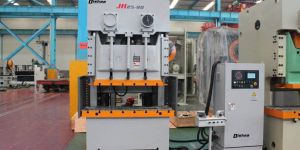

Main Features of Double-Point Mechanical Press JIS I accuracy. Steel welded frame. Double crankshafts reverse rotated to eliminate lateral force. Combined wet friction clutch. Octahedral lengthened gib. Hydraulic overload protector. Elec. adjustment with digital display. Lifting balance cylinder. Imported dual solenoid valve. Elec. oil lubrication. Balance cylinder: manual oil lubrication. Integrated panel (elec. cam included). PLC control. Ejector. Optional: air cushion (air bag or cylinder type), light curtain, NC feeder, motor with inverter.   Specifications of Double-Point Mechanical Press

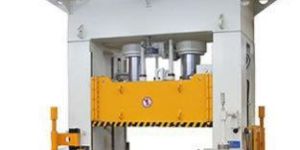

H Frame Hydraulic Press (Deep Drawing)     This H-frame hydraulic press is a deep drawing press that is similar in operation to our four-column hydraulic press but features a more compact design structure.   Main Features The H-frame hydraulic press is constructed from rigid high strength steel plates that help with precision power pressing during operation. The machine is fitted with a Siemens HMI screen and highly accurate position and pressure sensors. The hydraulic press features a user-friendly interface that allows compete user control for easy system adjustments. It is equipped with a hydraulic servo valve that allows the power press to run at high speeds and protects the system from impact forces. Monitoring software helps keep the sheet metal equipment operating at maximum capacity and helps keep the user and surrounding personnel safe at all times. The digital display shows operating cycle time, pressure settings, rem position, pressure release time, travel speed, travel setting, complete I/O information and safety alarms.   Specifications of the H-frame Hydraulic Press

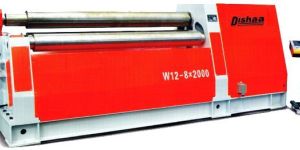

Hydraulic 4-Roller Rolling Machine The 4 roller bending machine is widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers, etc. Its working principle is rotating bending deformation. Safety devices are in compliance with European regulations. CE mark.

Four-Column Hydraulic Press HBP-500T/DDH.     Characteristics Adopt advanced Taiwan TWOWAY cartridge valve hydraulic circuit with little fault, minor reversing impact and high reliability. Oil cylinder is made of alloy cast steel with precision grinding, which ensures reliable performance in high pressure condition. Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance. The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance. The slide has fast speed and high productive efficiency. Designed with adjustable drawing speed, the machine is applicable for various thickness metalworking and deep drawing.   Security system Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch. The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety. Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface. Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.   Applications Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more. Shaping, stamping, drawing and edge cutting of metal and non-metal parts.

Fiber Laser Cutting Machine with Exchangable Pallet Widely applied to metal- sheet Processing, stainless steel decorative engineering, advertising trademark and advertising character, high/low voltage electrical cabinet, kitchenware, metal craftwork, Autoparts, farm machinery, medical instrument, sports equipment, environmental protection equipments, central air conditioning, hardware, tool and gauge etc.

Main Features of Open Back Double Point Power Press JIS I accuracy. Steel welded frame with high rigidity. Double crankshafts reverse rotated to eliminate lateral force. Motor with inverter. Combined wet friction clutch. Rectangular hexahedral lengthened gib. Hydraulic overload protector. Elec. adjustment with digital display. Lifting balance cylinder. Imported dual solenoid valve. Elec. forced grease lubrication. Balance cylinder: manual oil lubrication. Integrated panel (elec. cam included). PLC control. Ejector. Optional: air cushion, light curtain, automotive device.   Specifications of Open Back Double Point Power Press

Four-Column Deep Drawing Hydraulic Press HBP-40T – 160T.     Characteristics Four column structure enjoys outstanding rigidity. Each press is designed through finite element structural analysis and optimization to assure high strength and rigidity. This sheet metal machinery adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan) Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance. The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance. The four-column hydraulic press adopt Mitsubishi PLC + Touch screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic. Designed with adjustable drawing speed, the four column deep drawing press is applicable for various thickness metalworking and deep drawing. The hydraulic press fully meets CE safety requirements. The slide has fast speed and high productive efficiency.   Applications Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more. Specially for the following industries: a. Automobile industry: steel ring, vehicle body, chasis, axle housing, fuel tank, door and many more. b. Household appliance industry: components of air conditioner, refrigerator, washing machine, microwave oven, electric cooker and so on. c. Kitchen ware industry: stainless steel utensil, gas cylinder, stainless steel sink, cooking bench, etc.   Optional Moving bolster / die change trolley Stamping dampers for shock proof while stamping Trolley / moving bolster for easy die change Cushion device for anti-shock while stamping Water cooler / oil chiller Mould hydraulic clamping Air breathing design as per request   Technical Specifications

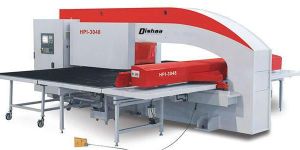

CNC Turret Punching Press Machine HPI 3048 This series of CNC punch press has a powerful high speed punching head that has a rotating device for quick punching tool rotation. The large support table of the rotative punch allows standard metal sheets to be worked quickly and easily without the need for alteration.

Our CNC turret punch press is an outstanding combination of performance and cost effectiveness. Our CNC punching machines feature an O-frame design and can work with mild steel sheet with a thickness up to 6.5 mm.

The series products one piece cast iron foot stand of lathe, ensure the machine has strong rigidity. The appearance of the machine tool protection design is according to international popular trend, novel and unique, waterproof, and prevent crumbs, easy for maintenance.

This machine is widely used in electrical equipment,Instrument apparatus industry, Cars, Motorcycle parts,Fastener bearing, Photographic equipment, movie mechanical, hardware various clocks and watches,Gas pipe fitting and other high precision machining and manufacturing of complex parts, Is a hardware machinery processing industry the most ideal efficient equipment.

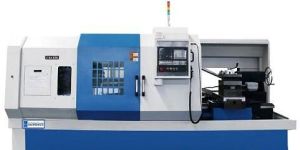

this machine can automatically process the inside cylinder surface, cone surface, circular arc surface, end face, such as processing and also can process the single and multiple threads in metric ,inch and other standards. CAK series CNC lathe machine is an economical, practical type machine tools with good quality.The machine has a very wide use which is suitable or internal and external turning, tapering, circular are, thread, boring, reaming of axle and disk workpiece, It also can achieve non-circular curve machining, you can choose the CNC system and optional accessories according to your requirement.

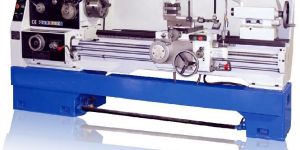

CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.

The radial drilling machine is considered the most versatile type of drill press.The drill head of the radial drilling machine can be moved, adjusted in height, and rotated. Aside from its compact design, the radial drill press is capable of positioning its drill head to the work piece through this radial arm mechanism. The tasks that a radial drilling machine can do include boring holes, countersinking, and grinding off small particles in masonry works.
