Earth Testers Dealers in Thane

• Type: Earth Resistance Tester
• Color: Grey, Light Green
• Condition: New, Used
• Application: Industrial Use
• Frequency: 45Hz, 66Hz
• Power Source: Battery, Electric
• Feature: Easy To Use, Electrical Porcelain, Four Times Stronger
• Warranty: 1year, 2years
• Operating Current: Double Phase, Single Phase, Triple Phase
• Temperature Capacity: High Temperature, Low Temperature, Medium Temperature

• Frequency: 20 MHz
• Modal: DCM30A
• DC Voltage: 1000V
• AC Voltage: 700V
• Resistance: up to 2 MΩ
• Use: This meter also has a Max button which is used for Inrush Current measurement & meter is powered by 9V Battery.

• Frequency: 128 Hz
• Measurement Range: Up to 0.1 Ohms
• Accuracy: 2%
• Display: 3½ digit, Low battery indication
• Battery: 12 V 1.5 Ah, rechargeable
• Weight: 1.5 kg
• Dimensions: 225 mm x 150 mm x 75 mm
• Working Temperature: 0 C to 55 C

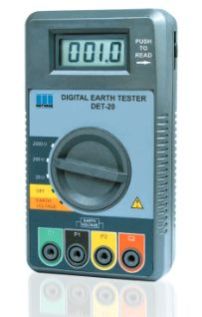

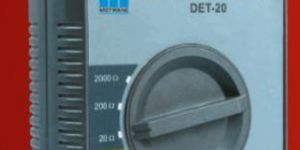

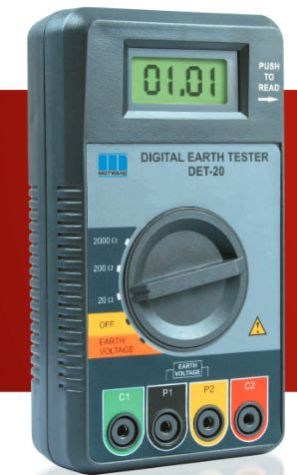

In order to reduce Broadband and ISDN Line transmission losses, it is essential to check Earth resistance. With this tester we can check earth resistance up to 0.1 ohms. We can also measure soil resistivity. Unit works on chargeable battery. Necessary accessories along with charger are provided with unit. Features Measurement up to 0.1 Ohms Accuracy up to 2% Digital display Generated signal is not in range of harmonics of mains supply to avoid interference Test resistor are provided to confirm calibration Low battery consumption Battery is chargeable maintenance free type Heavy duty accessories provided for proper reading Operation Short left side two terminals E1 & P1 and connect it to point whose resistance is to be measured. This wire should be shortest possible. Connect other 2 wire provided along with unit to other two terminals. Fix the rods at app.10 to 15 meters in different directions. Pour a glass of water on the rod to make good contact. Select 2V range & press test button. Then display will give direct reading of earth resistance.
