Energy Saving Heater Dealers in Thane

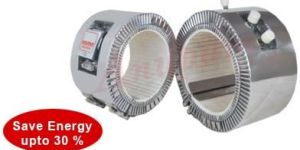

Energy Conservation is achieved by using 1" thick Ceramic fiber insulating blanket on the outer surface increasing the overall outer diameter by 2"(Minimum Length Required is 4"). Reducing power consumption upto 30% because of low thermal conductivity of the ceramic fiber insulation, the external surface temperature of the insulation plus ceramic band heater is approximately 80°C while running the inside surface temperature at 300°C. FEATURES Saving Energy Up to 30% Reduce Wattage of Heater More Uniform Heating Less Down time increases Productivity Reduced Preheating time of Machine Heater cost is recover in shorter time Cool working atmosphere for operator Overall Outer diameter increases by 2" (50 mm APPLICATION Injection Molding Machine Blow Molding Machine Extrusion Line

Elstein HTS High Temperature Heaters are ceramic infrared panel heaters, which can be used for operating temperatures up to 900 °C and surface ratings up to 64 kW/ m².HTS series heaters are produced using a hollow-casting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated.Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.Consideration The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.IR radiation panels can be assembled using REO reflectors, REF construction sets, EBI and EBF construction elements, BSI and BSH panels as well as mounting sheets MBO.The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.
