EVERSHINE ENGINEERING WORKS Bhiwandi, Thane, Maharashtra

Wall Mounting Enclosure Series This series of boxes unites best of welding and riveting techonolgy. This series exhibits IP-66 fully welded boxes to modular double door boxes with riveted top plate. We ensure that a wide variety of boxes will satisfy a wide variety of electrical and electronic applications. WM series manufactured in CRCA sheet is surface treated in our Autophoretic 930 Dip-Priming Plant and Powder coated. WM series is also available in Stainless Steel 304 and 316L.   Features Sheet Thickness of box body - 1.5mm & 2.0mm Gland plate available above 160mm Depth Entire range tested for IP65 & 66 protection class Internal door can be possible Door opening of 180 degrees. Door opening can be changed from Left to Right or Right to Left as per request. Heavy-Duty casting Hinges and Locks included Door with all round formed in place Polyurethene (PU) gasket. PU gasket ensures a reliable seal. Hemming of the door frame edges of the body for proper sealing & increased PU gasket life. Protection against scratches & cuts Mounting of a wide variety of Accesories made possible

Material : Stainless Steel

Finishing : Polished

Open Style : Hinged

Feature : Easy To Install, Excellent Strength, Fine Finishing, Premium Quality

Pattern : Plain

Type : Wall Mounting Enclosure

Country of Origin : India

Features Standard and Customized range of Enclosures available in Stainless Steel 304 and 316L Specially designed Hygienic Panels for Pharmaceutical and Food & Beverage Industry. Enclosures with Continuous Hinge and Padlock Latches for Oil & Gas Industry. Enclosures designed for the extreme climate conditions, IP 66 rating.

Material : Stainless Steel

Finishing : Polished

Shape : Rectangular

Color : Silver

Open Style : Hinged

Feature : Easy To Install, Excellent Strength, Fine Finishing, Premium Quality, Shiny

Pattern : Plain

Type : Stainless Steel Enclosure

Country of Origin : India

Features   This is manufactured in 'Modular Floor Standing Extensible Enclosure' (MFSE Construction.  50mm glass wool or rock wool is used as insulation. Cutout pockets on all sides (if any) are also insulated with nitrile foam gasket sheets.  Only 1OOmm in width, 1OOmm in depth and nothing in height is consumed for insulation. Compact in size and hence energy saving (Heave reduction in A.C. capacity specoification). Modularity is maintained and hence width can be extended. Use for Outdoor duty is possible with some changes without much increase in cost. Costing is 25% of E Room. This is better replacement for E Room. Better IP protection.

Material : Mild Steel

Finishing : Powder Coated

Shape : Rectangular

Open Style : Hinged

Feature : Easy To Install, Excellent Strength, Fine Finishing, Perfect Shape

Pattern : Plain

Width : 100 Mm

Type : Standard Enclosures

Country of Origin : India

Junction Box (JB or SB) Features IP-67 Ingress protection. Welded body with sides, top and bottom closed in 1.2 thk folded CRCA sheet. Front single door in 1.2 thk CRCA sheet. With metal hinges, cam locks. Polyethylene gasket on door and polyurethane foam on gland plate, both are fire retardant. M-4 tapped Z angles inside for DIN rail mountings (No component mounting plate inside). As side walls are not removable, inter panel separator is not required here. Gland plate optional at bottom in 2.00 thk CRCA. These types of enclosures are not suitable to join together, however if needed we can join them.

Material : Mild Steel

Finishing : Coated

Shape : Square

Color : Off White

Condition : New

Feature : Waterproof, Moisture Proof, Light Weight, Flameproof

Pattern : Plain

Type : Ms Junction Boxes

Country of Origin : India

IP Rating : IP-67

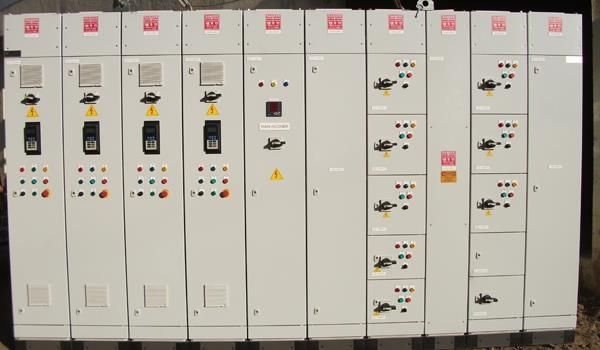

The best IP protection (IP-54).  Best strength for 1200 depth also.  Modularity for internal assembly. Doesn't require more pre-engineering. Each & every compartment is a separate box and hence we can alter complete elevation at any stage. Punched holes having pitch of 12.5mm. Universal mounting of doors and covers so that they can be interchanged or reverted, Detachable all the doors and covers facilitates faster interior assembly. Stronger support channels (plated or powder coated) screwed on the doors. Fire retardant & chemical resistant Polyurethane foamed D type gaskets (workability at 1000C temperature) on doors and covers for better IP protection. Easy and modular busbar mounting is provided in bus chambers. Depth and height adjustable mounting of component plate and horizontal / vertical partitions. Clamped and folded gland plates in parts for easy removing and fitting. Gland holes not necessary to decide earlier, can be drilled at site also. Angular mounting of terminals provides spacious access. Sheet metal folded base looks attractive with ease in grouting (Grouting holes visible).ISMC base also can be provided.

Material : Mild Steel

Shape : Rectangle

Surface Treatment : Powder Coating

Application : Factories, Industries, Power House

Feature : Fire Resistant, Shock Proof, Chemical Resistant

Type : Modular MCC / PCC Enclosures

Function : Electrical

Country of Origin : India

IP65 and IP66 Enclosures We offer enclosure solutions for your enhanced IP65 and IP66 requirements. Our wall-mounted IP 65 and IP66 enclosure ensures superior dust and water Ingress Protection   Features All round formed-in-placePolyurethane PU seal on Door to ensure a reliable sealing Door opening 180°- Heavy-duty casting hinges provided. Customized screwed cover arrangement Hemming of door frame edges of the body for proper sealing with PU gasket & increased gasket life protection against scratches & cuts Offset for gland plate cut-outto meet IP protection class. 2-mm Gland plate with 3-mm thk gasket sealing provided Mounting plate in 2.5-mm Galvanized sheet & it can be adjustable 25-mm up or down  Enclosure color – Range of RAL colors available on request  Available in Stainless Steel 304 & 316L

Material : Mild Steel

Finishing : Powder Coated

Shape : Rectangular

Open Style : Hinged

Feature : Easy To Install, Excellent Strength, Fine Finishing, Perfect Shape, Premium Quality

Pattern : Plain

Country of Origin : India

WM Box – Fully Welded Single Door Box This series of boxes unites best of welding and riveting technology. This series exhibits IP-66 fully welded boxes to modular double door boxes with riveted top plate. We ensure that a wide variety of boxes will satisfy a wide variety of electrical and electronic applications. WM series manufactured in CRCA sheet is surface treated in our Autophoretic 930 Dip-Priming Plant and Powder coated. WM series is also available in Stainless Steel 304 and 316L.   Features     Door with all round formed in place PU seal ensures a reliable seal Door opening 180° Heavy duty casting hinges / cam lock Door opening left to rignt, can be changed opposite Heming to body edges For proper sealing with PU gasket. & increase gasket life Protection against scratches & cut Offset for gland plate cutout For meet protection class 2-mm gland plate with 3-mm thk gasket sealing Mounting plate in 2.5-mm Galvanized sheet & it can be adjustable 25-mm up or down Enclosure colour – Ral-7035 textured paint Accessories that can be fit 7a – Vertical channel (necessary for internal door, depthwise rail led light, limit switch, Door stopper 7b – Horizontal channel (necessary for led light, door stopper) 7c – Depthwise rail (for cable support) 7d – Internal door 7e – limit switch bracket 7f – LED light 7g – Door stopper 7h – Wall mounting bracket 7i – Drawing pocket 7j – Cable support bracket on Ø22.5 hole 7k – Pad lock arrangement All accessories are not applicable for all type boxes availability is mentioned in chart Enclosure colour – Ral-7035 textured paint

Material : Stainless Steel

Finishing : Scratch Proof, Rust Proof, Optimum Performance, Easy To Fit, Durable

Shape : Rectangular

Condition : New

Door Style : Single

Installation : Wall Mounting

Country of Origin : India

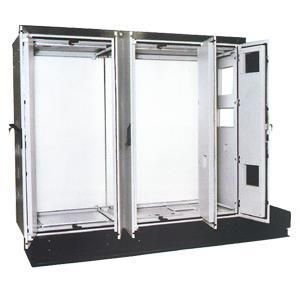

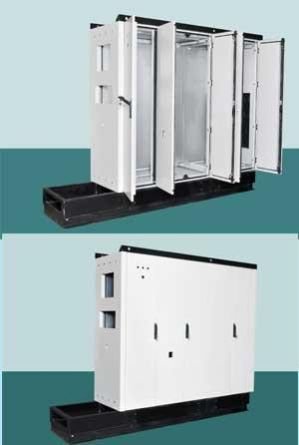

Floor Standing Enclosure Series The quintessential industry Workhorse. Our floor standing enclosures integrate the strength of welding with the agility of riveting technology. Our patented riveting technology ensures the possibility of supplying enclosures in fully dismantled (CKD) condition, bring down transportation and inventory carrying costs. A large load carrying capacity and the ability to intergate a wide range of accessories forms the cornerstone of our floor standing enclosure series. Our designs fulfil IP 54 requirements. Floor Standing series manufactured in CRCA sheet is surface treated in our Autophoretic 930 Dip-Priming Plant and Powder coated. Floor Standing series is also available in Stainless Steel 304 and 316L.   Features Sheet Thickness of box body - 1.5mm & 2.0mm Gland Plate of Galvanised Sheet in 3mm thickness provided Mounting Plate of Galvanised Sheet in 3mm thickness provided Entire range tested for IP54 protection class Door opening of 115 degrees. Door opening can be changed from Left to Right or Right to Left as per request. Internal Sheet-metal Hinges and Swing Handle (Three-Point) Locking arrangement included Door with all round formed in place Polyurethene (PU) gasket. PU gasket ensures a reliable seal. Hemming of the door frame edges of the body for proper sealing & increased PU gasket life. Protection against scratches & cuts Mounting of a wide variety of Accesories made possible

Material : Stainless Steel

Finishing : Polished

Shape : Rectangular

Color : Off White

Open Style : Hinged

Application : Home, Hotel

Feature : Easy To Install, Excellent Strength, Fine Finishing, Premium Quality

Pattern : Plain

Country of Origin : India

Continuous developement of new designs & products is of a vital importance to us. We specialize in manufacturing special cabinets for Control & Instrumentation Applications, Control Desks and Pendants. With a dedicated team of designers, we have been consistently addressing the unique requirements of our customers. We use SolidWorks (USA) software for our design and development processes. Our innovative designs give due consideration to the ease of assembly & possibility of supplying the enclosures in dismantled (CKD) condition for lower transportation and inventory costs. With the implementation of Lean Manufacturing & Single-Piece Flow processes, superiority of quality is ensured consistently. Lean Manufacturing enables us to execute very small quantitites of customized requirements in remarkably short processing times.

Material : Stainless Steel

Finishing : Polished

Shape : Rectangular

Color : Silver

Open Style : Hinged

Size : Customized

Feature : Easy To Install, Fine Finishing, Premium Quality, Shiny

Pattern : Plain

Type : Customized Enclosure

Country of Origin : India

Features The best IP protection (IP-55) Standard construction (design). Manufactured in modules. Floor standing or wall mounting arrangement is possible. Modifications possible at customer end also if needed. Modularity of extensibility and internal arrangements. Easy handling and transportation.   Standard sizes : These are standard products. Shape (construction) is fixed; only height, width and depth sizes can be changed.

Driven Type : Electric

Color : White

Condition : New

Automation Grade : Automatic

Application : Industrial

Type : Control Desk

Country of Origin : India

This design integrates the best of Welding and Riveting technology. Can be supplied in Flat-Pack (CKD) packaging, bringing down cost of transportation and iventory. Innovative Multi-Section Compartmental Design ensuring ease of assembly Feeder available with Back-Cover or Back Door Option Door opening of 130 degrees. Heavy-Duty casting Hinges and Locks included. Door with all round formed in place Polyurethene (PU) gasket. PU gasket ensures a reliable seal. Panels are manufactured in CRCA sheet and are surface treated in our Autophoretic 930 Dip-Priming Plant and Powder coated.

Material : Stainless Steel

Color : White

Application : Industrial Use

Feature : Easy To Install, Sturdy Construction, Superior Finish

Country of Origin : India
