Gas Meter Dealers in Thane

Having association with the leading names enable us to deliver high quality products to our worthy clientele. In addition to this, we procure the basic material from the trusted places only. The transactions related to payment carried out between us and our clients are kept confidential. You details are not shared with anyone except the concerned personnel to ensure high level of security.   Technical Specifications : Flow Range : DFM-01 - 1ml/min to 50ml/min with least count of 0.1ml/minDFM-02 - 5ml/min to 500ml/min with least count of 1 ml/min DFM-03 - 200ml/min to 2000ml/min with least count of 1ml/min DFM-04 - 1ml/min to 500ml/min with least count of 0.1ml/min (auto range) DFM-05 - 1ml/min to 1000ml/min with least count of 0.1ml/min (auto range) DFM-06 - 10ml/min to 400ml/min with least count of 1ml/min (auto range) Accuracy - 2% of Reading, 1 Digit Power Supply - 230 V AC, 50 Hz Resolution - 0.1ml/min & 1ml/min Dimensions :    DFM-01- 27cm (H) x 13cm (W) x 10cm (D)DFM-02 - 27cm (H) x 13cm (W) x 10cm (D) DFM-03 - 27cm (H) x 13cm (W) x 10cm (D) DFM-04 - 25cm (H) x 16cm (W) x 4 cm (D) DFM-05 -17cm (H) x 7cm (W) x 3.5cm (D)   Principle : The Digital Gas Flow Meter is based on the classical method viz. Soap film method. The instrument is automated by using Microcontroller which provides highly accurate Measurement and direct digital read out of gas flow rate. The time required for the soap film to pass through a fixed known volume is measured. The soap film is sensed by IR sensors. When the soap film passes through first sensor , it activates the timer of Microcontroller. Timer is stopped when the film crosses the second sensor. The flow rate is then calculated by Microcontroller and instantly.

Gas Flow Meter that we offer is manufactured using the latest techniques under the strict vigilance of experts. We are named among the renowned Manufacturers and Suppliers of Gas Flow Meter. We conduct stringent quality tests on Gas Flow Meter so as to ensure that only the defect-free product reaches the customers’ end. We have the capability to deliver retail as well as bulk orders for Gas Flow Meter within the stipulated time frame.

Digital Gas Flow Meter is based on the classical method viz. Soap film method. The instrument is automated by using Microcontroller which provides highly accurate measurement and direct digital read out of gas flow rate. The time required for the soap film to pass through a fixed known volume is measured. The soap film is sensed by IR sensors. When the soap film passes through the first sensor, it activates the timer of Microcontroller. The timer is stopped when the film crosses the second sensor. The flow rate is then calculated by Microcontroller and instantly displayed in ml/min. Where as DFM-05 DFM-06 are direct flow measurement based battery operated.   Features : » Direct Digital Readout» Digital Display of LED/LCD » Useful for measuring any gas flow rate specially for G.C. Analytical Instruments. » DFM-01, 02, 03 04 - Table Mounting (Soap Solution based)» DFM-05, DFM-06 - Portable (direct measurement)

• Weight: 150g
• Accuracy: +0.4 Ml/min Or 2.5 %
• Brand Name: PCI
• Size: 68 x 130 x 30 mm
• Model Name/Number: DFM 05
• Batteries: Yes
• Usage/Application: Laboratory
• Warranty: 1 Year
• Resolution: 0.1 ml/min
• Measure Range: 0 to 500ml/min

• Application: Gases
• Brand Name: Burak Metering
• Material: Stainless Steel
• Driven Type: Electric
• Power: 24 VDC, 2 AMP & 230 VAC
• Usage: Industrial, Water And Chemicals
• Packaging Type: Wooden Box
• Line Size: 4-20mm, 20-50mm, 50-100mm, 100-150mm
• Type: Thermal Mass Flow Meter
• Country of Origin: India
• Display: Digital
• Analog Output: 4-20 MA, HART
• Model No: Inline Thermal Mass Flow Meter/BT-3020-G

• 1. Service: Bio-Gas, Compressed Air, Compressed Gas, LPG, Steam.
• 2. Size: ½” to 14”
• 3. Type of Flow meter: Differential Pressure Type.
• 4. Flow Element: Orifice / Integral Orifice / Nozzle
• 5. MOC of Flow Element: SS 316
• 6. Density Compensation: Can be provided.
• 7. Type of Flanges: WNRF (Weld Neck Raised Face)
• 8. MOC of Flange: C.S / S.S / P.P.
• 9. Flange Rating: ANSI 150 / ANSI 300 / ANSI 600
• 10. Type Of Taps: Flanged Tapping / Corner Tapping / D & D/2
• 11. No. Of DP Tappings: 1 Pair
• 12. No. Of Drain Tappings: 1 Pair
• 13. Design Standard: BS - 1042 / ISO
• 14. Accuracy: ± 1% of actual reading (Flowmeter)

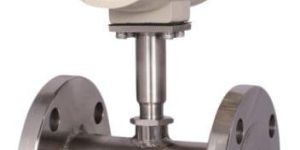

The Gas Flow Meter is orifice flow meter measures flow by inserting an Orifice Plate in the block between the pipes.The Differential pressure is detected by highly sensitive differential pressure transducer, by which the pressure drop is very low.

• Application: Other
• Gas Type: LPG
• Material: Alluminium steel
• Model: G1.6,G2.5
• Operating Pressure: 0.5 bar

• Type: Gas Flow Meter
• Material: Aluminum, Brass, Cast Iron, Copper, Plastic, Stainless Steel
• Color: Brown, Green, Grey, Maroon, Red, White, Yellow
• Voltage: 110V, 220V, 230V, 380V, 440V, 450V
• Application: Industrial, Residential
• Operating Temperature: 10-50D/C, 50-100D/C
• Driven Type: Electric
• Display: Local, Remote
• Warrenty: 1 Year, 2 Years, 6 Months
• Size: Multisizes
• Feature: Accuracy, Digital Water Meter Display, Lorawan Compatible, Multi Jet, Spiral Water Meter
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi, Semi Automatic

• Display: Remote
• Operating Temperature: 25C
• Accuracy: 0.01ml/min
• Frequency: 0-1000ml/min
• Voltage: battery
• Color: Grey
• Material: Fiber
• Model: Digital DFM
• Brand: Athena
• Electronics Enclosure: 0.01ml/min
• Base Rating: Digital
• Body Finish: Perfect
• Flange To Flange: Auto
• Stop Rate: Automatic

We are india's leading manufacturer & supplier of gas steam flow meter.
