Globe Valve Dealers in Thane

• Country of Origin: India
• Material: Carbon Steel
• Certification: ISI Certified, ISO 9001:2008 Certified
• Feature: Blow-Out-Proof, Casting Approved, Durable, Investment Casting
• Port Size: 0.1mm-5cm, 2cm-50cm
• Size: 1.1/2inch, 1.1/4inch, 1/2inch
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Pattern: Plain

We are the exporter and supplier of this products.

We are offering gate globe nrv gate globe nrv.

We present the clients with top quality Audco Y Type Globe Valves, which are used in diverse industrial applications. The Audco Y Type Globe Valves are meticulously engineered for durability and effectual performance. Our range of Audco Y Type Globe Valves undergoes stringent quality control measures to make the products free from all drawbacks. Specifictions design : api 602bs 5352 testing : api598bs 6755 part I material : astm specifications moulded pre-compressed graphite ring packing varieties of trim combination

We undertake Servicing / Overhauling of all type of control valves. Amarcon valve is specializes in problem solving. No need to remove a control valve for repair if the valve are welded in or If you are down for an emergency shut down and the clock is running Amarcon valve can repair your control valve in line and get your plant back up and running.

• Country of Origin: India
• Type: Forged
• Material: Metal
• Usage: Water Fitting
• Media: Water
• Automatic Grade: Automatic
• Specialities: Investment Casting, Heat Resistance
• Packaging Type: Carton

• Material: Carbon Steeel, Cast Iron, Cast Steel, Gun Metal, Metal, Stainless Steel
• Certification: ISO 9001:2008 Certified
• Color: Blue, Sky Blue, White
• Size: 1.1/2inch, 1/2inch, 1inch, 2inch, 3/4inch, 4/5
• Type: Globe Valve
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Pattern: Plain
• Power: Manual
• Pressure: High, Low, Medium
• Feature: Investment Casting
• Technic: Gear Operated
• Number Of Way: 2way

• Material: Carbon Steel / Alloy Steel / Stainless Steel / Alloy-20 / Monel Hastelloy-B&C
• Mfg. Std: BS 1873 / API 600
• Face to Face: ASME B 16.10
• Testing Std.: BS 6755 / API 598

Details : Bolted cover body and bonnet of forged Carbon steel a 105 plug type dice out side Screw and yoke 13% chrome trim class 800 PSIG at 850 f for screwed or socket weld And class 600 at 850 f for flanged design

We are offering seal valve

• Material: Carbon Steeel, Cast Iron, Cast Steel
• Structure: Double Half Shaft
• Application: Gas Fitting
• Power: Hydraulic
• Pressure: High
• Feature: Casting Approved, Durable
• Technic: Hard Sealing

• Type: Basket Type
• Design Std.: ASME 16.34, BS 1873
• Valve Size & Rating: 2” to 12” ANSI 150# to 300#
• Face To Face: Mfg Std.,B16.5
• Mesh: As per Requirement
• Testing: BS 6755, 5146,API 598
• Features: Compact Design, Suitable for Liquid, Gas.

• Automation Grade: Manual
• Media: Water Fitting

We provide Forged Steel Globe Valves that are precision engineered using best quality raw material.

We are offer wide range of globe valve, e.g. Forged steel globe valve, cast steel globe valve, stainless steel globe valve, gun metal (bronze) globe valve, bellow seal globe valve, chlorine service globe valve, cryogenic globe valve, & more.

Our company specializes in manufacturing, exporting and supplying of Double Seated Globe Valves. The Double Seated Globe Valves (Series 2000) that we offer are accurately manufactured by us using high quality material. The Double Seated Globe Valves are quality tested and conform to the international quality standards. We supply efficient and durable Double Seated Globe Valves at competitive prices. Sizes : 1 ½" to 18" (Higher sizes available on request) Ratings : ANSI 150 to ANSI 600. (Other standards available on request) Features High Flow CapacityMinimum differential plug areas to reduce actuator force requirementOptional anti �cavitation /low noise trim option for high pressure drop applicationCharacteristics : Equal percentage, Linear, Quick openLeakproof packing is available on requestHeavy duty top and bottom guided construction Application : For high flow and high pressure services

• Design: BS 1873 / ISO 15761
• Face to Face: ASME B 16.10
• Flanges: ASME B 16.5
• Butt welding: ASME B 16.25
• Testing: API 598 / EN 12266 PART 1 & 2

SPECIFICATION Valve Size: ½” (15 mm) to 2″ (50 mm). Rating: ANSI 150. Temperature: -10°C to 180°C. Max. Pressure : 16 BAR End Connection: Screwed, Flanged, Triclover (Special on Request) Body / Bonnet : Investment Casting ASTM A 351 Gr . CF8 / CF8M. Gland Packing: Self adjusting, spring loaded Teflon packing. T rim Materials: SS 316 Seat-Seal : PTFE / Metal Seated VITON / EPDM, Buna Nitrile Characteristics: On / Off Seat Leakage : As per FCI-70-2 Class IV, V and VI Metal to Soft Seating-Bubble tight (Zero Leakage) Actuator Type : Piston Actuator Action: Direct / Reverse / Double Acting Direct acting air failure “Opens” Reverse acting air failure “Closes” Double Acting air failure “Stayput”

globe valves are extensively used through-out the refineries,hydrocarbon,energy and process & the power industries. size: 2” up to 24“ (dn 50 up to dn 600) pressure rating: asme 150# to 2500# materials: carbon steels, low temperature carbon steel, martensitic steels, austenitic stainless steel, duplex stainless steels, super duplex stainless steels, nickel alloys, nickel aluminum bronze, hastelloy, inconel, titanium alloy & carbon steel with internal corrosion resistant alloy (cra) overlay design standard: bs 1873, api 623 pressure / temperature rating: asme b 16.34 test (inspection) standard: api 598,iso 5208,bs 6364 construction details: bolted bonnet / pressure seal bonnet, os & y type rising stem end connection: flanged,butt-weld operator / actuator: handwheel gear, actuator (pneumatic, hydraulic, electro-hydraulic and electric motorised) cryogenic service: globe valves can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the customer, down to cryogenic -196°c. If required by the customer, specific cryogenic tests are performed to verify the behaviour of production valves in terms of valve torque, sealing capability, emissions vs the ambient.

Globe valve is a Controlling or Throttling type of control valve. It is used for the precise flow control. Like Gate valve, Globe valve is also preferred choice for Petroleum, Fertilizer and large Chemical plants. While Gate valves are used for On-Off flow control, Globe valves are used for the controlled fluid flow. “IVE” Offers “STARTEK” make Gate valves, manufactured by M/S. Star Engineers, India, an API 6D registered Globe valve manufacturer. Gate Valves are offered with the standard specifications or can also be customized as per client’s specifications. Key Features and Benefits of Globe Valve Manufactured by an API 6D registered Industrial valves manufacturer. GLOBE VALVES are available in the range from ½” (15mm) to 12” (150 mm) Globe valves are manufactured with the Outside screw & Yoke type arrangement with Bolted Bonnet design. For Cryogenic application Extended Bonnet design offered. Rising Stem with Rising as well as fixed Hand wheels design. Also available in Plug Type Disc Or Parabolic disc design. Seat Rings can be Integral as well as renewable. Regular Gland sealing as well as lantern ring sealing is also offered as per requirement. Back Seating is provided to ensure repacking of Packing rings in on line condition. Valves control by Manual hand Wheel or Gear operated as per requirement. Used by leading Petrochemical, Oil & Gas companies such as ONGC, HPCL, BPCL and IOL. “STARTEK” GLOBE VALVES are metal seated Globe valves manufactured with variety of Trim Options, varying from Trim 1 to Trim 20 as per user requirement to achieve specific Pressure Temperature requirements.

• Maximum temperature:: 1800 C
• Maximum pressure: 10 Bar

Metal Housed Globe Teflon Valve Globe Metal Housed Teflon Valves are °Cost Effective” and excellent in handling highly corrosive Fluids, Acids. Higher PTFE Valve thickness as 6mm minimum,

• DESIGN:  BS 5352
•  TESTING:  API 598/ BS 6755 PART I
•  SW END:  ANSI B 16.11
•  BW END:  ANSI B 16.25
•  SCREWED END:  ANSI B 1.20.1/ ANSI B 2.1
•  MOC:  A 105/ F 304(L)/ F 316(L)/ F 11/ F 22
•  SIZE:  15 MM TO 50 MM

DESCRIPTION :   Globe valve are closing down valves in which the closure member is moved squarely on and off the seat. In this way the opening of the port is directly proportional to the travel of the disc. This proportional relationship is ideally suited for duties requiring regulation of low rate. Further more the short travel of the disc between the open and closed position makes these valves ideally suited for on-off duties when they must be opened and closed frequently. Globe valves are uni-directional valves and are installed so the fluid pressure is under the disc.

• RATING: ANSI 150 to 2500 or Equivalents to BS, DIN, etc.

This type of Valve with its classic globe body shape, which reflects its name, uses the variable area generated between the plug and seat to control fluid flow. It is very versatile offering reduced trim options as well as a variety of special trims for severe high pressure drop applications. This style of valve is easily adapted for use on cryogenic tempetatures and for high temperature duties. This valve is preferred for tight shut – off, positioning accuracy, high rangeability and simplified maintenance, satisfy the majority of control valve applications throughout the process and power industries in control of Air, Steam, Water, Gas, Chemicals etc.

RK SERIES 10 CONTROL VALVES are produced by combining high technology engineering, modern manufacturing techniques & stringent quality control procedures. A wide variety of trim options, combined with design flexibility will satisfy majority of critical and non - critical applications found throughout the process, power and oil industries. Pressure Ratings: ASME class 150 to 2500 (PN 10 to PN 400) Other standards available on request. Application: To control large range of process parameters, specially for oil and gas production, power generation, chemical, petrochemical, fertilizer, pharmaceutical, sugar, processed food and other process industries.   Features: High flow capacity Spring & Diaphragm, Multi spring, Piston & Electrical Actuator options available Streamlined flow passage Tight shut off High rangeability Large variety of trim design varying from contoured trims to single stage ported and multiple stage low noise anti cavitation trims Suitable for high presure drop and other critical application Can be supplied with wide range of interchangeable trims sizes, to handle wide range of process parameters. Characteristics - Equal percentage, Linear and Quick open Bellows seal (leakproof packing) available Full range of body & trim material End connection to suit any pipe work configuration as per standard

A Globe Valve Is A Type Of Valve Used For Regulating Flow In A Pipeline, Consisting Of A Movable Disk-Type Element And A Stationary Ring Seat In A Generally Spherical Body. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug[2] can be screwed in to close (or shut) the valve. The plug is also called a disc or disk.In globe valves, the plug is connected to a stem which is operated by screw action in manual valves. Typically, automated valves use sliding stems. Automated globe valves have a smooth stem rather than threaded and are opened and closed by an actuator assembly. When a globe valve is manually operated, the stem is turned by a hand wheel.Although globe valves in the past had the spherical bodies which gave them their name, many modern globe valves do not have much of a spherical shape. However, the term globe valve is still often used for valves that have such an internal mechanism. In plumbing, valves with such a mechanism are also often called stop valves since they don't have the global appearance, but the term stop valve may refer to valves which are used to stop flow even when they have other mechanisms or designs.Globe valves are used for applications requiring throttling and frequent operation. For example, globe valves or valves with a similar mechanism may be used as sampling valves, which are normally shut except when liquid samples are being taken. Since the baffle restricts flow, they're not recommended where full, unobstructed flow is required..

Tecnik’s lined globe valve is specially used for controlling strong aggressive media. Its body inner surface is lined with special lining material which can be selected to suit for different working temperature and fluid properties. High quality liner materials cover a wide range of corrosive applications.As metal parts are protected from process fluid use of expensive alloys is not needed.Proper Linear thickness ensured a high degree of protection.T-Grooves provides a positive mechanical connection between the linear material & valve body.Unique bellow design, allows working pressure up to 15 kg/cm2.High flow capacity to line size ratio.Long service life and operational reliability.Backup packing provides additional safety.Modular design permits easy maintenance.

FEATURES Size Range : 1/2" To 30" Pressure Ratings : Upto 2500 Class Mgf. Standard : API 600 Testing Std. : API 598 Material : ASTM A216 Gr WCB/ASTM351CF8/ ASTM351CF8M/ASTM351CF3M/ Customize

We offer Y-type-flush-bottom-tank-valve. Pressure Rating ASA 150# Design Upward Downward Pressure Test BS 6755 End Connection ANSI B16.50 BS10 Table 'DEF' Flanges M.O.C. CS SS304 SS316 WCB CF8 CF8M & Higher Alloys on request Operation Hand Wheel Operated Option Jacketed Size Range 40 mm to 150 mm

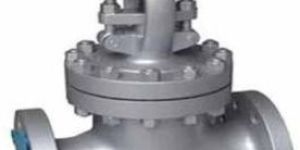

Cast steel globe valves are available in wide range of sizes and pressure. These are also available for high pressure, temperature and variety of fluids. Valves are marked with flow direction since they are recommended to install with flow and pressure under the disc.

• Size: 1/2 to 16
• RATING: 150, 300, 600, 800
