We offer the htc oil sealed rotary high vacuum pumps. Htc range of vacuum pumps are of oil immersed rotary vane type, the sliding vane pump has a cylindrical housing. The rotor, linked by its shaft to an electric motor via a cooling, usually carries two spring loaded opposing blades to ride on the stationary housing. As the rotor turns, a blades sweep the stator walls and gas molecules entering the inlet of the pump pass into the volume created by the eccentric mounting of the rotor in the sector. The gas is then compressed forcing the exhaust valve to open and permitting gas discharge. The inlet port and exhaust valves are separated by a contract area where the housing in machined to the same radius as the rotor. A film of oil is used on all moving parts to lubricate and seal the pump.

The htc range of pumps are lateral channel pumps with open impellers. The impellers run between two intermediate casings of which one is plain disk with suction opening and other incorporates a lateral channel ending in the discharge opening, it also incorporates a small de airing channel. This principle has the effect of the handling medium being transported in a screw like manner from suction to delivery, this movement is accelerated with the discharge head increasing. The higher the discharge head, the more frequent liquid enters the cell of the impeller and levels on the other side. Between the liquid in the impeller (in the impeller cell) and the liquid in the lateral channel, a steady impulse takes place until the liquid leaves through the discharge opening. The principle of energy absorbed by the liquid in a lateral channel pumps gives us a characteristic of linear curves and is several times that of a true centrifugal pump.

We offer Laboratory Models Liquid Ring Vacuum Pumps. HTC Liquid Ring Vacuum Pumps are positive displacement pumps of simple and robust monoblock direct driven design. HTC offer these small, compact, single stage liquid ring vacuum pumps of this design have the following important features: HTC Pumps are supplied ready for connection. Installation of separate motors and bed plates is eliminated. Compact design ensures that a minimum of space is requires. Pumps require a minimum of maintenance. Low noise and vibration levels. Virtually isothermal compression. Can be used for dry gases or for vapors. Limited quantities of liquid can be handled in addition to the gas or vapor being pumped. Service liquids other than water can be used. Thus, the service liquid can be chosen so that it is compatible with the process gas or vapor.

Htc meat mincing machine plays a very vital role in the industries like pharmaceuticals, food and confectioneries, metallurgical, food preservation etc. Htc meat mincing machine work round the clock satisfactorily, even under bad service conditions with minimum supervision due to rugged flexible design and not at all affected by slight impurities, dust or small particles. Performance is guaranteed since it has to pass through strict, difficult and rigid tests of quality control at different stages of manufacturing each and every meat mincing machine.

We offer Double Stage Water Ring Vacuum Pumps & Compressors. HTC Liquid ring gas pumps are rotary displacement pumps. A circulating auxiliary fluid normally water, absorbs the driving power supplied to the impellers and transmits it to the gas to be compressed. Shaft and Impellers are the only moving components. They do not have sliding contact with fixed pump components. The gaps which exists are filled with the auxiliary fluid. No lubricants can get into the pumping chamber and the gas to be pumped is not contaminated. In design, the pumps is adopted to the intended application.

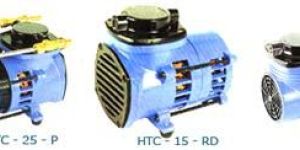

We are offering diaphragm type vacuum pump. Salient features: no lubrication required noiseless performance absolutely portable totally oil free construction practically maintenance free all parts are made from special graded aluminum die cast material for light weight and good strength diaphragms are made of special 2 – ply nylon reinforced neophrence rubber special diaphragms also available (teflon, viton, etc.) valves made of ss 316 material built in macro suction filter extra large bearings for trouble free and smooth running pumps available with single as well as 3 phase motors pumps available with flame proof motor (model htc-45-fm) pumps available with 122448 volts dc (model htc-15dc-1500) pumps available with chemical sensitive parts (pp, teflon contact parts) (crp suffixed models) pumps available with ss 316 contct parts pumps available in 110 v ac motors pumps available for gas charging in acs (model htc-25-ax) ideally suited for original equipment manufacturers
