High Temperature Pump Dealers in Thane

• Type: Automatic
• Certification: CE Certified
• Application: Industrial
• Weight: 20-300kg
• Driven Type: Electric
• Warranty: 1 Year

• Pressure: 30 bar
• temperature: up to 400° C

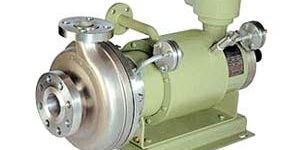

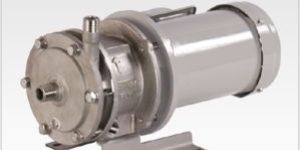

Type HT high temperature pumps are high temperature pumps suitable up to 400° C. These pumps differ in construction from basic pumps, as pump and motor are separated thermally by an adaptor which prevents heat transfer from the pump to motor area. In these pumps, an independent circulating system using same liquid being pumped with cooling jacket and heat exchanger is provided. The circulation is achieved with the aid of an auxiliary impeller mounted at the fore end of the motor chamber. The cooling arrangement permits the motor and bearings to operate at temperatures much lower than the processed fluid.

Two Intrinsic Designs covering wide range of HighTemperature Fluids and other Vegetable Oil Applications.Maximum Temperature handling up to 350o C. Back Ribs on Impeller. Heat Barrier plate for better heat dissipation. Cooling Fins (Air-Cooled) are provided to eliminate use of External Cooling Systems. Oil Lubricated Bearing Housing Only, with Ball Bearings provided on the Product Side as well as the Drive Side to ensure Ease of Maintenance & Better Service Life. Intermediate element Provided for Vegetable Oil Applications Under Vaccum, eliminating use of Expensive Double or Metal Bellow Seals.

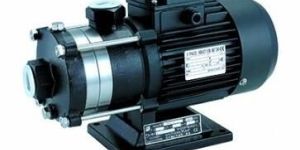

• Brand Name: CNP
• Head: Max. 60 m
• Max Flow Rate: 0.5 to 28.0 m3/hr
• Liquid Temperature: 15 C to 110 C
• Voltage: 220V / 415V
• Material: Stainless Steel 304 / 316
