High Vacuum Pump Dealers in Thane

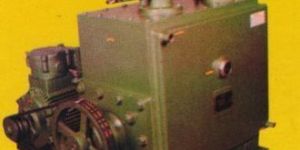

Our Rotary High Vacuum Pumps carry greater strength and require the least maintenance.  We properly package our products using premium supplies and ultramodern technologies to make sure they endure shipping, handling, mechanical damages etc. We provide customized packaging solutions. To handle both automated inbound and outbound orders, we have exceptional warehousing solutions. We keep the wide array of products sorted in the warehouse to make sure that the delivery commences systematically.

• Model No: ME-3
• Motor Horsepower: 0.25 HP
• Motor Speed RPM: 1500 Rpm
• Number of Stages: Single stage
• Power Source: Electric
• Voltage: 220 V
• Free Air Displacement: 50 Ltr/Min
• Oil Change In L: 2.5 Liter

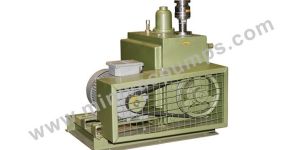

In this type, the pump is immersed in the sealing fluid (oil) and this is re circulated. The vapors sucked by the pump are exhausted thru the oil resulting in the vapors condensing in the oil and contaminants. Again if the vapors are corrosive then the pump itself will be subject to corrosion and heavy maintenance. To regain the required ultimate vacuum one needs to service the pump and fill in fresh oil which is time consuming and expensive.

• Capacity: 18m3/hr to 250m3/hr

Minivac RVL Series vacuum pumps are oil sealed high vacuum pumps running on rotary vane technology.  Graded quality of materials as well as precise machining tolerance enables us to manufacture pumps which give high efficiency over long periods.  Special Glass fiber vanes ensure longer life and superior performance.  System designed to operate at 80° thereby enhancing moisture and vapor handling capacity.  Pump uses 10% of oil when compared to oil submerged high vacuum pumps.

• Ult. Vacuum: Up to 0.005 mm of Hg. Double stage Up to 0. 05 mm of Hg. Single stage
• Capacity: 50 to 10000 Lit / min

Our clients can avail a wide range of Oil Sealed High Vacuum Pumps in various models such as laboratory models and industrial models. These pumps are highly used in distillation, drying, bright annealing, evacuation of large systems and impregnation purpose. We are offering our range of oil sealed high vacuum pumps in single and double stage.

We offer the htc oil sealed rotary high vacuum pumps. Htc range of vacuum pumps are of oil immersed rotary vane type, the sliding vane pump has a cylindrical housing. The rotor, linked by its shaft to an electric motor via a cooling, usually carries two spring loaded opposing blades to ride on the stationary housing. As the rotor turns, a blades sweep the stator walls and gas molecules entering the inlet of the pump pass into the volume created by the eccentric mounting of the rotor in the sector. The gas is then compressed forcing the exhaust valve to open and permitting gas discharge. The inlet port and exhaust valves are separated by a contract area where the housing in machined to the same radius as the rotor. A film of oil is used on all moving parts to lubricate and seal the pump.

• Built - in - anti-suck-back mechanism: Low oil consumption
• Built –in gas ballast valve: Silent Operation
• High vapour handling capacity: Compact & Sturdy

Direct Driven High Vacuum Pumps are designed to meet the requirement of high vacuum applications of Freeze Drying. The Pump comprises of two stage offset rotary vane arrangement with a special inbuilt oil pump to take care of oil circulation and to assure continuous silent operation under high vacuum. Operation of the pump with the inbuilt gas ballast valve in open condition warms up the pump thereby preventing vapour condensation inside the pump. This increases the water handling capacity and thereby makes them ideal for use in Freeze drying operations. Product code Description VP001 Vacuum Pump 100 LPM VP002 Vacuum Pump 200 LPM VP003 Vacuum Pump 250 LPM EMF10 Oil Mist Filter
