Hoist-O-Hind Upvan, Thane, Maharashtra

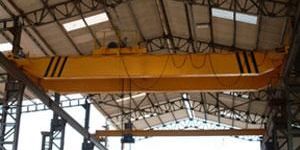

Up to 20 ton Capacity Tailor Made end carriages Twin drive (geared brake motors) Sturdy Hoisting crabs Under Slung Conical Rotor Hoists 100 % fail proof Brakes Panels With genuine Siemens switches VVF(Ac) drives for Soft Start (optional) Remote Control operation (optional) Desired DSL Systems.

Material : PVC

Application : Material Handling,Hydraulic,Mining

Voltage : 110 Volt

Current : 90 A

Up to 5 ton Capacity Both 180⁰ to 360⁰ turning radius for the Jib Arm Motor driven radial Arm Motorised Trolley Hoist on the arm. 100 % fail proof Brakes

Hook blocks (Lower block assembly) and Idler Pulleys (Upper block assembly) can be designed and manufactured as per requirements. It ranges from 1 ton to 50 tons. The hook can be forged in mild steel, C45 & EAN Materials. Test-certificates can issued for all kinds of hooks. The pulleys can be made from CI casting and also Mild steel.

Hook blocks (Lower block assembly) and Idler Pulleys (Upper block assembly) can be designed and manufactured as per requirements. It ranges from 1 ton to 50 tons. The hook can be forged in mild steel, C45 & EAN Materials. Test-certificates can issued for all kinds of hooks. The pulleys can be made from CI casting and also Mild steel.

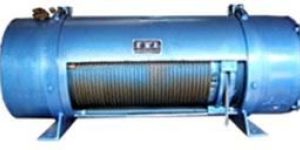

Hoist-o-hind are manufacturers of hoists with a wide range of lifting capacity varying from 0.25 tons to 50 tons, They confirm to class II duty as laid down in IS 39381983. Hoists confirming to class IV as per IS 39381983 can also be supplied, Special adjusting system. Takes only a few minutes to adjust thus reducing the down time, Trolley is so designed that it is adaptable to wide range on I beam Sizes, Built-in safety limit switches control top and bottom position of the hoo, Hoist motors are designed for 'F' class insulation which is superior to class 'A' 'E' and 'B' types of insulations.

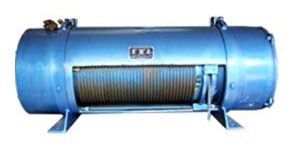

Hoist-o-hind are manufacturers of hoists with a wide range of lifting capacity varying from 0.25 tons to 50 tons.They confirm to class II duty as laid down in IS 3938/1983. Hoists confirming to class IV as per IS 3938/1983 can also be supplied.   Special Highlights of our hoists are: 1) Special adjusting system. Takes only a few minutes to adjust thus reducing the down time. 2) Trolley is so designed that it is adaptable to wide range on I beam Sizes 3)Built-in safety limit switches control top and bottom position of the hook 4)Hoist motors are designed for 'F' class insulation which is superior to class 'A' 'E' and 'B' types of insulations.   Salient Features HOIST-O-HIND Electric Hoists   Motor : The motor (10) is three phases squirrel cage, conical rotor type working on 440 volts. 50 c/sec. A.C. supply. This motor is specially designed for hoist and crane and is insulated by class ‘F' type of insulation according to B.S. : 2613. The starting and stalling torques of this motor are 220% and 290% of the full load torque. The motor is rated at 40% ED.   Brake : The axial movement of the rotor is one of the characteristics of the conical rotor type of motor. This characteristic is taken advantage of in the actuation of the brake. When the motor is started the rotor (11) is axially pulled into the magnetic centre of the stator and the brake is released. As soon as the current is cut off the brake spring (9) presses the brake disc (12) against the cover and the brake is applied. The braking torque is 100% above the motor torque at the rated load. The maintenance and adjustment of the brake us very simple due to system and can be done without removing any part. The brake disc and brake end cover (3) are both made of high grade cast iron and the brake lining is of ‘Ferrodo' type.   Gear Box : The gear box (2) is made out of high grade cast iron. The precision spur gears (4) are machined from alloy steel and are fitted with ball/needle roller bearings. The gear box is filled with grease.   Rope Drum : The rope drum (5) is rolled welded and precision machined. This rope drum is supported on large diameter roller bearings (6) on both ends and the drive is through internal gears. The ample drum diameter ensures the best possible working condition for the wire rope.   Rope Guide : The rope guide (7) is made of high grade cast iron. The rope tightener (8) is built-in in the rope guide itself. This rope guide moves on the drum like a nut and prevents the rope from overriding and loosening.   Rope : Generally 6 x 37 construction fibre core, pre-formed type, ungalvanised wire rope is supplied. (Galvanised and steel core wire ropes can also be supplied, if specifically asked for.)   Main Housing : All hoist parts are enclosed in the main housing (1) thus forming a better looking integral unit. The main housing like the rope drum is also of rolled and welded construction, equipped with mounting bracket.   Limit Switches : Every hoist is provide with built-in limit switches (16) to control the top and bottom position of the hook. Tappets (13 & 15) can be adjusted to any position in between the range provided. These limit switches are actuated by the rope guide.   Control: The hoist is controlled by a pendant push button station. Supply to the pendent push button is of 110 volts as per IS specification.   Microspeed : All hoists can be fitted with a micro speed attachment which reduces the hoisting speed to 1/10 th of the main hoisting speed. The micro speed attachment works independent of the load and main hoist. There is a separate control for the micro speed. This arrangement is invaluable in the handling of bulky, heavy and delicate loads.   Testing : Every hoist unit before dispatch is tested at 125% of the rated load capacity on single fall of rope. Only after all the components pass the rigorous inspection tests, the hoist is approved for dispatch.

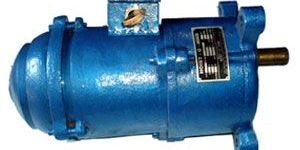

Geared Brake Motors are used for Cross travel and Long travel in hoists and cranes. These motors are available in a variety of speed and different Horse powers. The Geared brake motor consists of 3 parts i.e. conical squirrel cage motor, gear box & integral brake. The motors have very high efficiency and are very compact. Flange mounted and foot mounting options available.

The Geared brake motor consists of 3 parts i.e. conical squirrel cage motor, gear box & integral brake. The motors have very high efficiency and are very compact. Flange mounted and foot mounting options available.

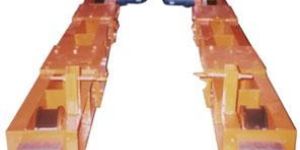

We manufacture motorised end carriages for Single girder & Double girder cranes. The design and fabrication is done according to the span of the crane and gantry.

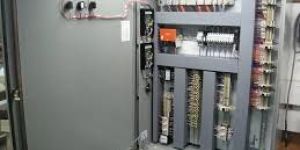

Panels for cranes & Goods lift are designed and manufactured & tested by us. Panels with VVF(AC) drives of ABB, Yaskawa are used to contol the speed of the motor. Panels are made as per requirements. Genuine switches From branded companies like Siemens, Telemecanique , BCH & L&T are used for manufacture of panels.

Panels for cranes & Goods lift are designed and manufactured & tested by us. Panels with VVF(AC) drives of ABB, Yaskawa are used to contol the speed of the motor. Panels are made as per requirements. Genuine switches From branded companies like Siemens, Telemecanique , BCH & L&T are used for manufacture of panels.

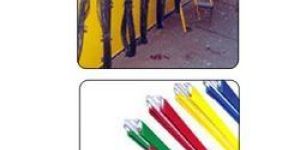

Special Features Shrouded DSL offered are finger safe, insulated from end to end making them accident free. Maintenance free The sleeves are in red, yellow, blue and green colours for distinct indication of phase and earth conductors. Spring loaded current collectors ensure that there is no sparking/loss of contact and therefore no single phasing. Only contact shoes are wearing parts. GI/Copper conductors are available for a wide range of current ratings upto 600 amps. SS/Aluminium conductors are available for corrosive atmosphere. They are very compact and require very less space.   Spares Spares are available for Hoist-o-mech (homech) Hoists. Spares for cranes and other conical type hoists are available Ex-Stock.

Shrouded DSL offered are finger safe, insulated from end to end making them accident free. Maintenance free, The sleeves are in red, yellow, blue and green colours for distinct indication of phase and earth conductors, Spring loaded current collectors ensure that there is no sparkingloss of contact and therefore no single phasing,Only contact shoes are wearing parts, GICopper conductors are available for a wide range of current ratings upto 600 amps, They are very compact and require very less space.

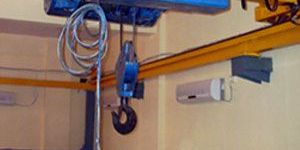

Up to 50 ton Capacity Tailor Made end carriages Twin drive (geared brake motors) Sturdy Hoisting crabs Conical Rotor Hoists 100 % fail proof Brakes Panels With genuine Siemens switches VVF(Ac) drives for Soft Start (optional) Remote Control (optional) Desired DSL Systems.

Geared Brake Motors are used for Cross travel and Long travel in hoists and cranes. These motors are available in a variety of speed and different Horse powers.The Geared brake motor consists of 3 parts i.e. conical squirrel cage motor, gear box & integral brake.The motors have very high efficiency and are very compact.
