Hydrostatic Level Transmitter Dealers in Thane

• Material: Metal
• Range: Up to 20 Bar (200 Mh2o)
• Accuracy: 0.1%FS, 0.2% FS, 0.4 %FS and 1%FS.
• Material: Stainless steel submersible
• Quick response time: < 25 to 30 ms
• Output: 4 ... 20 Ma and Voltage Outputs

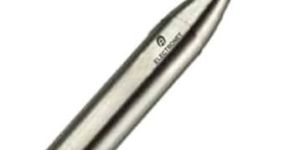

This Instrument are a pressure transmitter available in 4 ... 20 mA current loop or in voltage output signal versions. This transmitter offers a very high accuracy over a wide temperature range, an excellent repeatability and very long term stability.The piezo-resistive silicon sensor is anodic bonded on a very stable glass base, which is attached to a stainless steel construction. This assembly guaranties an excellent thermal isolation.The sensor is isolated from the process by a stainless steel diaphragm (1.4435 / 316L) and a filling liquid. The electronics is located within the hermetically sealed transmitter housing which give the Instrument an excellent resistance to shock and vibration. Protection class IP 68.Because these are small and submersible is universally suitable for all kinds of hydrostatic level measurements. It is the ideal product for environments such as in the food and beverage industries, water level measurement and all kind of standard industrial and processing applications.External zero setting ATEX II 1G, II 2G and II 1D Lloyd‘s Register Approval High long-term stability Excellent repeatability

• Range: up to 20 bar (200 mH2O)
• Accuracy: 0.1%FS, 0.2% FS, 0.4 %FS and 1%FS.

This Instrument are a pressure transmitter available in 4 ... 20 mA current loop or in voltage output signal versions. This transmitter offers a very high accuracy over a wide temperature range, an excellent repeatability and very long term stability. The piezo-resistive silicon sensor is anodic bonded on a very stable glass base, which is attached to a stainless steel construction. This assembly guaranties an excellent thermal isolation. The sensor is isolated from the process by a stainless steel diaphragm (1.4435 316L) and a filling liquid. The electronics is located within the hermetically sealed transmitter housing which give the Instrument an excellent resistance to shock and vibration. Protection class IP 68. Because these are small and submersible is universally suitable for all kinds of hydrostatic level measurements. It is the ideal product for environments such as in the food and beverage industries, water level measurement and all kind of standard industrial and processing applications.

SDSPLT static pressure level indicator transmitter assembled with advanced pressure sensor and double layers cable which are our original creation with wear resistant and water proof featutes can meet the demands of various extreme service conditions. Full welding stainless steel armored tube structure ensures the measurement in the corrosive liquids.The measured medium can be water, oil, acid, alkali or viscous liquid. Advanced in technology, precise in measure, reliable in quality, easy in installation, SDSPLT transmitter is an ideal and economical level instrument for process measure and control system.SDSPLT level indicator transmitter is tailored for liquid sulfur and high temperature naphthol and combined with previous international application experiences. This product with stainless steel armored welding cable and adopted with special high temperature large diaphragm sensor can be used to measure high temperature nd strong viscosity medium and can solve other measuring difficulties process industry.
