Impact Testers Dealers in Thane

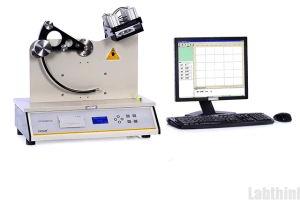

• Specifications: FIT-01 Pendulum Impact Tester
• Impact Energy: 1 J, 2 J, 3 J (Standard)
• Resolution: 0.001 J
• Impact Head Size: ?25.4 mm, ?19 mm, ?12.7 mm (Customization is available)
• Specimen Clamp Diameter: ?89 mm, ?60 mm
• Specimen Size: 100 mm x 100 mm or ?100 mm
• Gas Supply Pressure: 0.6 MPa (outside of supply scope)
• Port Size: ?6 mm PU Tubing
• Instrument Dimension: 600 mm (L) x 390 mm (W) x 600 mm (H)
• Power Supply: 220VAC 50Hz / 120VAC 60Hz
• Net Weight: 64 kg

Pneumatic Impact Hammers have many uses especially in the removal of tubes from a pressure vessel. If the tubes have been cut out and all you have left are the stub ends then using the collapsing tool with the impact hammer makes light work in removing the stub.The chisel end of the collapsing tool is forced down inbetween the tube and the tube sheet. The centre groove on the collapsing chisel forces the tube to collapse inwardly therefore releasing pressure on the tube sheet and breaking the seal.If the tube is thick walled then using the wall reducer will make the overall removal of the stub end much more easier.Tubes which are flush with the outside of the tube sheet can also be removed with the Knockout/Drift tools. These fit inside the tube or stub end and force the tube back through the tube sheet.

• Power: 120 Watts
• Paint: Powder coated

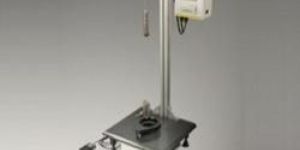

Darts : 2 no’s supplied with equipment. Dart Falling Heights : 220, 660 & 1524 in mm. Weight Box : 5 to 500 grams incremental loads. Dart HoldRelease System : Electromagnet with “0”, Noise + “0” Vibration. Start Command : Paddle Switch. Vacuum System : In built + Noise less. Vacuum Range : 760 mm of Hg. Counter : Digital with memory back up. Shaft Length Adjustment: Easy with accurate alignment. Supply : 230 VAC50 Hz.

• Machine Capacity: Up to 25.00Joules
• Supply: 230 VAC ± 10 VAC/ 50 Hz.

As Per IS-15801, ISO9854-1: 1994, ISO9854-2: 1994 Impact Energy: 15J, 25J Resolution: 0.001J Velocity of striking: 3.8 m/s Results visible on controller display Graphic display and results through PC software. (Optional) Report consists of as per ASTM, ISO & IS. Results on direct display in J/m; Kgcm/cm; J/m²; J/cm²; Kj/cm² Paint: Powder coated

The resistance to breakage by flexural shock of plastics and Electrical insulating materials as indicated by the energy extracted from standardized pendulum type hammers mounted on standardized machines in breaking standard specimens with pendulum swing. The energy absorbed per unit of specimen width is reported in joules.

The Impact Testing Machines that we make available are produced using strong & sturdy basic material such as stainless steel, etc. and the latest technology under the vigilance of our experts. Outstanding performance, hassle-free functioning, reliable results, longer service life and high corrosion resistance are the highlights of these products. Rely on us for bulk orders of Civil Engineering Laboratory Equipment!

We are a high-flying name when it comes to superlative hydraulic impact hammer! We are capable of delivering the orders on time and at any desired Maharashtra(India) as we are supported by up-to-the-minute facilities.

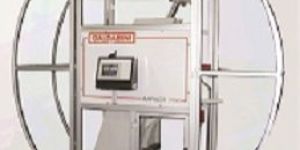

Pendulum machines can perform resilience test on plastics, metals & high resistance sheets. Important features are motorized automatic lifting of the hammer after test which is useful in low temperature test.

• Model: ITM-300
• Display: Digital
• Pendulum drop angle for Charpy: 140 deg
• Pendulum drop angle for Izod: 90 deg
• Standard: ASTM: E-23
• Initial Potential Energy for Charpy: 300 Joules
• Initial Potential Energy for Izod: 170 Joules
• Least Count: 2 Joules
• features: Longer functional life, Least maintenance, Improved test accuracy, Dimensional accuracy, Robustness

Resilience Tester, Abrasion Tester, foam tester, multifunction rheometer

SC-70 Hydraulic Impact Hammers, Cross Cutter Core Barrel
