Indofab Industries Bhayandar, Thane, Maharashtra

Application : Waste Water Treatment

Material : PVC, PP

We are providing our clients with Table Feeders such as rotary table feeders that are manufactured using quality raw material procured from reliable vendors. Our range of rotary table feeders is available in various capacities ranging from 3 TPH to 100 TPH. Rotary Table feeders are widely used for extracting and feeding the free flowing powdery, granularly and small lumpy material from silo at control rate. The material that can be handled are available in various diameters ranging from 450 mm dia to 1500 mm dia. Moreover, variable speed drive is provided with rotary table feeder as per the requirement of our clients.

Power : 2.0 HP, 3.0 HP, 5.0 HP, 7.5 HP, 10.0 HP, 15.0 HP, 20.0 HP, 25.0 HP, 30.0 HP

Brand Name : Akar

Inline with similar operating structure and application as Drum Filter (Ref.Above) the Disc Filter is a macro screen used for macro solids removal and product recovery. The disc design is particularly advantageous when a large filter area is needed. The compact design of the disc filter configuration results in 2-3 times more filter area compared to drum filters of the same external dimensions. This makes the Disc filters a good choice for recirculation systems, effluent polishing of wastewater, fine filtration of intake water, or other applications where a space-saving filter with fine filter openings and large filter area is required.

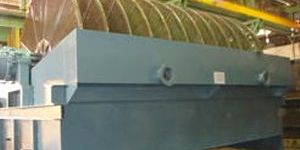

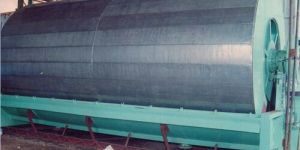

We Manufacture a wide range of Continuous Vacuum Filters more Popularly known as Rotary Vacuum Drum Filters (RVDF). Rotary Vacuum Drum Filters are designed to handle the broadest range of slurries of any Filter offering De-watering, washing or Clarification Applications or a combination of two. In order to minimize energy consumption, size requirements and overall cost, Feed slurry should be concentrated as much as possible prior to Filtration by RVDF.

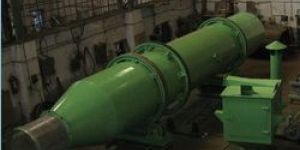

Drum Slaker consists of a rotating, generally horizontal cylindrical vessel; lime and green liquor enter at one end and leave at the other end after slaking. A Trommel screen is installed at the exit to catch large oversize pebbles and grits. (60% Green liquor enters at feed end and 40% at the discharge end through a splitter box).Baffles are provided inside the Drum Slaker to ensure proper chemical reactions with the desired retention time.

We are offering our clients with DSM Screens that are widely used in the paper industry. A fine wire mesh is used in DSM screens to separate solid from liquid under flow of gravity. DSM screens are manufactured using latest technology and quality raw material such as stainless steel 304, 316. Further, our range of DSM screens find application in various paper mills and are available in various sizes such as 2' wide & 4' wide,Mechanical Bar Screening ,The Bar Screen are installed for the purpose of removing bulky material which would be objectionable and cause trouble in later processes in a sewage treatment plant. It is a continuous and automatically cleaned mechanism requiring a minimum of care and attention.
