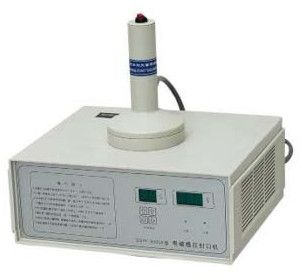

Induction Sealing Machine Dealers in Thane

nduction Sealing Machine consist of SS or MS powder coated fabricated Body and Sealing Head part. Provision are provided for lower & raising the height of the upper sealing head, which unable us to adjust the sealing head nearer to bottle cap for proper sealing of the aluminum foil on the neck of the bottle. The machine is mounted on wheel based unit, which provides added mobility. To radiate out the excess heat from the machine, water cooling system is used. Operation / Working: For 1 KW or 2 KW Online Fully Automatic Induction Sealing or Sealer Machine. Successful screw cap sealed container or bottle pass along the conveyor and enter below the sealing head or induction coil of the induction sealing machine which emits an oscillating electromagnetic field. As the container passes under the induction coil (sealing head) the conductive aluminum foil liner begins to heat. The heat melts the wax, which is absorbed into the pulp backing and releases the foil from the cap. The polymer film also heats and flows onto the lip of the container. When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product. Neither the container nor its contents are affected, and this all happens in a matter of seconds. Technical Details: Depending upon the speed requirement & size of the cap different model are available. Single Phase 230 V power Supply Salient Features: Portability: The machine is mounted on a wheel based unit, which provides added mobility. This make it easy for line relocation. Power Efficient Latest solid state semiconductor technology ensures reliability. It has more than 90% power conversion efficiency; therefore less power is required. Security Features: Built in protection circuitry for Over Current/ Over Voltage / Over Temperature. All this comes at NO EXTRA COST. It is Provided as a regular feature in all our equipment. Microprocessor Controls: No extra PLC required. Save Cost. Soft Touch Membrane Control Panel: For easy operator interface. Ease of Use: No tools, just plug it into 230 V Single mains power supply, set the correct power level and seal. Water Cooling System: Houses the most efficient water cooling system. Benefits of Foil Sealing: Leak Proof Increase Shelf Life Retains Aroma Tamper Proof Safe & Hygiene

Manufactures and Exports induction Cap Sealing Machine, Which is of High Quality. this is Evident from the Various Tests the Induction Cap Sealing Machine Undergoes to Ensure that It is Manufactured in Accordance with Industry Standards. These Machines are Very Efficient and are Easy to Operate. These Machines are in High Demand Since the Induction Cap Sealing Machine is Used in Industries Dealing with Textiles, Chemicals, Etc.

• Cap Size :20mm to 135mm : Max. Line Speed:20 feet/minute

Features: • Less Power Required • Fault Indicator • Safety and Protection Alarms • Compact Design • Membrane Control Panel This system has many optional value added accessories like: • No Foil Detector • Auto Stop System • Auto Start System • Bottle Jamming Detector • Total production / bottle counter • Conveyor Stop system

SpecificationsThis machine gives complete flexibility allowing for the sealing of 22mm to 150mm diameter caps without any change parts and can be wheeled easily from line to line with full tool free adjustment for head height and leveling. Is an all in one compact mobile induction sealing system featuring the latest logic control cards and smooth power regulation Veena pharma’s induction Sealing system is a sturdy design model suitable for non contact sealing of laminated AL-Foil for neck.• Suitable for non contact sealing of laminated AL-Foil for neck• Neck size 20mm to 100mm• Max 40f/min line speed (10 to 50 bottles per minute)• Single phase electricity 230 volts,10amps,50Hz• Standby power 0.4Kw• 1 no. induction sealing coil (Wide Flat Universal)Water Circulating system inbuilt make Italy• Dimension in mm approx.650(W)x650(D)x1650(L)• MOC; SS 304• Sealing coil height movement upto 350mm• Fault indicationSafety and protection features• Protection against over temperature,current,voltage flow failure
