Y TYPE JACKETED FLUSH BOTTOM VALVES
The liquid or slurry which changes the state while passing through the valve can be handle smoothly with the jacketed flush bottom valves. Steam, Oil or Water can be circulated in the jacket for heating or cooling of the liquid or slurry passing through the valve. KEY FEATURES AND BENEFITS IVE- Jacketed Flush Bottom Valves available in C.S or S.S Jacket for uniform heating or cooling. Heating, Cooling and drain nozzle can be screwed or flanged design. Unique design of IVE flush bottom valves assure “Zero- Hold Up” in the bottom pad of the tank. And facilitate the free flow and quick discharge of the liquid or slurry through the valves. Available in both designs, Disc Opening in to the tank and Disc Lowering in to the valve. Valves available in the range of 25 NB to 150 NB and in BS, ANSI, DIN, standards. Valves can be operated manually as well as pneumatically. Flush Bottom valves can also be provided with the temperature sensors to measure the temperature in the vessel. Outlet discharge angle available in 450and can also be tailored made to 600. Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20, Hast alloy and as per special specifications. Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard faced by Stellite TM where distortion of seat by aggressive liquid or slurry is common. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service. Rinsing & Non Rinsing stem with outside ACME thread.
...moreY TYPE FLUSH BOTTOM VALVES
“Y” TYPE Flush bottom valves are used to discharge Liquids &Slurry from the bottom of Reactors, Receivers & huge Tanks. “IVE” Flush Bottom valves are available in design of Disc opening into the Tank ( vessel opening design) & Disc lowering (inside valve opening design) into the valve body. Flush bottom valves with disc opening into the tank or opening upwards is the most commonly used. It is used where enough space is available between bottom pad and the starrier of the tank. The mass load inside the tank helps closing & tight shut off the flush bottom valve. KEY FEATURES AND BENEFITS Unique design of IVE flush bottom valves assure “Zero- Hold Up” in the bottom pad of the tank. And facilitate the free flow and quick discharge of the liquid or slurry through the valves. Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20, Hast alloy and as per special specifications. Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard faced by Stellite TM where distortion of seat by aggressive liquid or slurry is common. Valves available in the size range of 15 NB to 250 NB in BS, ANSI & DIN standards. Available in the design of Jacketed, Actuated & Lined. Offered for Sanitaryaseptic application. Outlet discharge angle available in 450and can also be tailored made to 600. IVE Flush Bottom vales can also be provided with the temperature sensors to measure the temperature in the vessel. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service. Rinsing & Non Rinsing stem with outside ACME thread.
...moreY TYPE ACTUATED FLUSH BOTTOM VALVES
Pneumaticcylinders are used to automate the working of the “IVE” Y Type Flush Bottom Valves. Liquid &Slurry can be drained off remotely and with minimum labor. “IVE” offers pneumatic cylinders with Single acting (fail safe) design and Double acting (stay-put) design. KEY FEATURES AND BENEFITS Automate liquid drain operation, minimize the labor. Automation accessories such as solenoid, limit switches, positioner offer as option. Precise control over important process parameters. Valves available in the range of 15 NB to 250 NB and in BS, ANSI, DIN, standards. Available in the design of Jacketed, Lined and also for the Sanitary application. Manual override provided for safety and emergency. Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20, Hast alloy and as per special specifications. Conical Metal to Metal disc seating/ PTFE seating with option of fixed or Renewable seat. Further metal seating can be hard faced by Stellite TM where distortion of seat by aggressive liquid or slurry is common. Outlet discharge angle available in 45°and can also be tailored made to 60°. IVE Flush Bottom vales can also be provided with the temperature sensors to measure the temperature in the vessel. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service.
...moreView Glasses
View glasses or Sight glasses are used to monitor the in line flow in the process lines. They are Bi directional, reliable, economical & available with Standard 150 mm long Tube. They can also be fabricated in required length. “IVE” Manufactures QVF (Quick Visual Flow) type Sight Tube Glasses with Flanged as well as Screwed connection. Silent Features and Benefits of View Glasses IVE” Sight glasses have PTFE seat rings that prevent flowing media from coming in contact with the metal Flanges. Borosilicate tubes are used to view the clear flow inside the process lines. View glasses with Double Window Sight flow Indicators, Drip type to ensure the flow of liquid / media flowing inside the line. The advantage of such sight glass is, the glass can be changed in line without dismantling the line. Toughened Borosilicate round glass is used to view the flow inside the line.
...moreTWO PIECE DESIGN BALL VALVE FLANGED ENDS
IVE” Two piece design Ball valves Flanged ends are available in the sizes from ½” (15mm) to 8” (200 mm) Two piece ball valves are offered with Single sealing joints design. This design offers better leak proof characteristics then three piece design ball valves but no better than single piece design. Two piece ball valves are made from High quality Investment castings procured from the reputed foundries. Compact Design, superior Quality and interchangeability makes it most versatile valves. Easy for maintenance as compared to single piece design.
...moreStrainers- High Filtration Capacity
We offer Strainers- High Filtration Capacity & Low Pressure Drop. Strainers are very important part of the pipeline. Along with Pipeline and Valves it completes the flow circuit. Strainers are used to filter out the impurities from the flowing liquid in the Pipeline. An unfiltered liquid will carry the impurities with it straight in to the equipments and will damage the same. This makes proper design, manufacturing, installation and maintenance of the online strainers very critical.
...moreStrainers
strainers are very important part of the pipeline. Along with pipeline and valves it completes the flow circuit. strainers are used to filter out the impurities from the flowing liquid in the pipeline. An unfiltered liquid will carry the impurities with it straight in to the equipments and will damage the same. This makes proper design, manufacturing, installation and maintenance of the online strainers very critical. type of strainers “ive” designed and manufacture bucket type & duplex strainers. While we also offer “startek” “y” type strainers manufactured by m/s. Star engineers, india. high filtration capacity & low pressure drop are the key features of all strainers offered by us. bucket type strainers the strainers are so called because the filter element inside the strainer is in the shape of a bucket. “ive” bucket type strainers are designed & manufactured to give minimum pressure drop across the line. The unique design of strainer element will filter 100% of the flowing media even if the filtering element is 50% clogged. As the filtering element is designed 4 times the size of lined area, it doesn’t require frequent cleaning, thus reducing the down time. duplex type strainers this design has two strainers mounted in parallel. “ive” design & manufacture duplex type strainers. These strainers are used in continuous process lines, where shut down to the service is not possible. In the event one strainer gets clogged, the flow of the media is shifted to another standby strainer by switching off the valve position. 3 way ball valves & butterfly valves are used to divert the flow to the required strainer. “ive” bucket & duplex strainers are available in the range of 1 ½”(40 mm) to 14” (350 mm) y type strainer “ive” offers “startek” make “y” type strainer. “y” type strainers are named so because of their shape. Though the filtration capacity of “y” type strainer is less than the bucket type strainer or “t” type strainers, it can filter the basic course particles in the primary stage to protect the pipe line accessories such as pumps, valves, flow meters etc which are installed in the pipe line. they can be used in utility lines, process lines as well as product lines depending upon the requirement. “startek” “y” strainers are available in the range of ½” (15mm) to 14” (350 mm) “ive” & “startek” strainers can be provided with single as well as double strainer elements. The strainer element can be of brass, ss 304 or ss 316. Generally a perforated sheet with wire mesh or required micron size is backed to it.

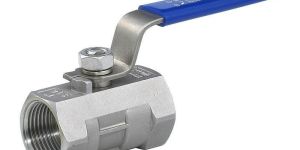

...moreSingle Piece Ball Valve
Ball valves are On-Off valves and also known as Shuts off valves and are used for flow control in On-Off fashion. These valves are used in utilities like water, air and steam pipe line, Three way & Four Way ball valve ; & PTFE lined ball Valve. With pressure rating of 150# to 1500, Single piece design Ball valve, Three piece design Ball valve.
...morePTFE Lined Valves
We are offering ptfe lined valves. Fep pfa lined valves have 3 to 5 mm thick flouro polymers lining which is anti corrosive as well as food grade. Lined valves found wide application in chemical as well as pharmaceutical industries. Fluoropolymers are inert to almost major acids and alkalis and gives longer working life. Feppfa lining up to 5mm thick is tested up to 10 kva.
...morePTFE LINED FLUSH BOTTOM VALVES Y TYPE
FEP / PFA Lined Flush Bottom Valves have 3 to 5 mm thick flouro polymers lining which is Anti corrosive as well as food grade. Lined Flush Bottom Valves found wide application in Chemical as well as pharmaceutical Industries. Fluoropolymers are inert to almost major acids and alkalis and gives longer working life. “IVE” flush bottom valves also offered with ECTFE / ETFE and different anti corrosive coating, instead of FEP and PFA lining. Coated valves have coating thickness of 800 to 1000 micron. KEY FEATURES AND BENEFITS “IVE” flush bottom valves suitable for corrosive as well as food grade application. FEP/ PFA lining available up to 5mm thick. Tested up to 10 KVA. ECTFE/ETFE/ Xylan coating available up to 1000 micron. Tested up to 5 KVA. Available in both designs, Disc Opening in to the tank (vessel opening design)and Disc Lowering (inside valve opening design) in to the valve. Valves available in the range of 15 NB to 150 NB and in BS, ANSI, DIN, standards. Operation of flush bottom valve can be automated with pneumatic cylinder and useful accessories. Outlet discharge angle available in 450C. Bolted Stuffing Box (Gland), easily adjustable & with Repackable service. Rinsing & Non Rinsing stem with outside ACME thread.
...morePTFE Lined Ball Valves
FEP / PFA Lined Flush Bottom Ball Valves have 3 to 5 mm thick flouro polymers lining which is Anti corrosive as well as food grade. Lined Flush Bottom Valves found wide application in Chemical as well as pharmaceutical Industries. Fluoropolymers are inert to almost major acids and alkalis and gives longer working life. “IVE” Manufactures soft seated Ball valves with variety of seating material to withstand temperature from -30 C to +260C. “IVE” uses Virgin PTFE, Glass Filled PTFE, Carbon Filled PTFE, PEEK Filled PTFE, Delrin, PEEK® to achieve these temperatures. “IVE” Offer different metallurgy as per the end user requirement. It can be made available in variety of metal & polymer combination
...moreONE PIECE DESIGN BALL VALVE
“IVE” One piece design ball valves is offered in NO-JOINTS design. This design assures highest leak proof characteristic. It is generally preferred in the pipe lines carrying hazardous or toxic liquids.
...moreLINED FLUSH BOTTOM BALL VALVES
FEP / PFA lined flush bottom ball valves are used for special application to handle corrosive liquid or pharmaceutical application where any contact material should be approved for the food grade. Lined Flush Bottom Ball Valves have 3 to 5 mm thick lining which is Anti corrosive as well as food grade. KEY FEATURES AND BENEFITS “IVE” Anti corrosive lined flush bottom ball valves suitable for corrosive as well as food grade application. Unique design of “IVE” Flush bottom ball valves minimize the dead leg area above the ball where it tends to close. FEP/ PFA lining available up to 5mm thick. Tested up to 10 KVA. Valves available in the range of 25 NB to 100 NB and in BS, ANSI, DIN, standards. Operation of flush bottom ball valves can be automated. Operation of flush bottom ball valve can be automated with pneumatic actuator and useful accessories.

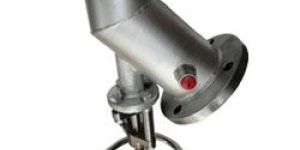

...morejacketed valves
The liquid or slurry which changes the state while passing through the valve can be handle smoothly with the jacketed flush bottom valves. Steam, Oil or Water can be circulated in the jacket for heating or cooling of the liquid or slurry passing through the valve. Available in both designs, Disc Opening in to the tank and Disc Lowering in to the valve. Outlet discharge angle available in 450and can also be tailored made to 600.
...moreJACKETED BALL VALVES FLANGED ENDS
Certain types of fluids may get solidify or crystalize while passing through the valve . In such condition heating or cooling to the flowing fluid in the valve can be provided by circulating steam, oil or water in the jacket of the single piece design ball valve. Heating or cooling of the flowing fluid will assure the smooth flow of the fluid within the valve. “IVE” Manufactures High precision Jacketed Ball valves.
...moreGlobe Valve
Globe valve is a Controlling or Throttling type of control valve. It is used for the precise flow control. Like Gate valve, Globe valve is also preferred choice for Petroleum, Fertilizer and large Chemical plants. While Gate valves are used for On-Off flow control, Globe valves are used for the controlled fluid flow. “IVE” Offers “STARTEK” make Gate valves, manufactured by M/S. Star Engineers, India, an API 6D registered Globe valve manufacturer. Gate Valves are offered with the standard specifications or can also be customized as per client’s specifications. Key Features and Benefits of Globe Valve Manufactured by an API 6D registered Industrial valves manufacturer. GLOBE VALVES are available in the range from ½” (15mm) to 12” (150 mm) Globe valves are manufactured with the Outside screw & Yoke type arrangement with Bolted Bonnet design. For Cryogenic application Extended Bonnet design offered. Rising Stem with Rising as well as fixed Hand wheels design. Also available in Plug Type Disc Or Parabolic disc design. Seat Rings can be Integral as well as renewable. Regular Gland sealing as well as lantern ring sealing is also offered as per requirement. Back Seating is provided to ensure repacking of Packing rings in on line condition. Valves control by Manual hand Wheel or Gear operated as per requirement. Used by leading Petrochemical, Oil & Gas companies such as ONGC, HPCL, BPCL and IOL. “STARTEK” GLOBE VALVES are metal seated Globe valves manufactured with variety of Trim Options, varying from Trim 1 to Trim 20 as per user requirement to achieve specific Pressure Temperature requirements.
...moreGate Valve
Gate valve function as an On-Off or Shuts off valve. And it is used for On-Off flow control in the straight and bigger diameter pipe lines which offer minimum flow resistance. Gate valves are preferred choice with Petroleum, Fertilizer and large Chemical plants. “IVE” Offers “STARTEK” make Gate valves, manufactured by M/S. Star Engineers, India, an API 6D registered Gate valve manufacturer. Gate Valves are offered with the standard specifications or can also be customized as per client’s specifications. Key Features and Benefits of Gate Valve Manufactured by an API 6D registered company. “STARTEK” GATE VALVES are available in range from ½” (15mm) to 24” (600 mm) Offered with Outside screw & Yoke type arrangement, Bolted Bonnet design. Extended Bonnet Gate valve design for Cryogenic application is also offered. Design with Rising Stem Gate valve with Fixed Hand wheels Supplied with Regular Gland sealing as well as lantern ring sealing Option of Flexible, solid or double Disc wedge design. Valves control by Manual hand Wheel or Gear operated as per requirement. Used by leading Petrochemical, Oil & Gas companies such as ONGC, HPCL, BPCL and IOL. “STARTEK” GATE VALVES are metal seated Gate valves, manufactured with variety of Trim Options, from Trim 1 to Trim 18 as per user requirement to achieve specific Pressure- Temperature requirements. Key Features and Benefits of Globe Valve Manufactured by an API 6D registered Industrial valves manufacturer. GLOBE VALVES are available in the range from ½” (15mm) to 12” (150 mm) Globe valves are manufactured with the Outside screw & Yoke type arrangement with Bolted Bonnet design. For Cryogenic application Extended Bonnet design offered. Rising Stem with Rising as well as fixed Hand wheels design. Also available in Plug Type Disc Or Parabolic disc design. Seat Rings can be Integral as well as renewable. Regular Gland sealing as well as lantern ring sealing is also offered as per requirement. Back Seating is provided to ensure repacking of Packing rings in on line condition. Valves control by Manual hand Wheel or Gear operated as per requirement. Used by leading Petrochemical, Oil & Gas companies such as ONGC, HPCL, BPCL and IOL Screwed Ends (BSP, NPT) : ANSI B 1.20.1 { ½” (15 mm) to 2” (50 mm)} Flanged Ends : ANSI B 16.5 ASA 150# TO ASA 800# Socket Weld Ends : ANSI B 16.11 Butt Weld Ends : ANSI B 16.25 Valve Design : BS 5351 Valve testing : BS 6755
...moreflush tank bottom valves
Flush Bottom Valves
Flush bottom ball valve is also known as bottom valve or drain valve. As the name suggest, it is widely used to flush out the liquid or slurry from the bottom of Reactors, Receivers & Huge Tanks. “IVE” is a leading flush bottom valve manufacturer. Our Flush bottom valve assures perfect drain of the liquid slurry from the tank. The unique design of the flush bottom ball valve will prevent formation of the dead area in the valve, hence no hold up area in the tank or vessel. This is achieved as ball of the valve will comes in the level with the inlet flange.

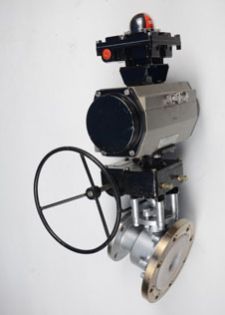

...moreFlush Bottom Ball Valve
Flush bottom ball valve is also known as bottom valve or drain valve. As the name suggest, it is widely used to flush out the liquid or slurry from the bottom of Reactors, Receivers & Huge Tanks. “IVE” is a leading flush bottom valve manufacturer. Our Flush bottom valve assures perfect drain of the liquid / slurry from the tank. The unique design of the flush bottom ball valve will prevent formation of the dead area in the valve, hence no hold up area in the tank or vessel. This is achieved as ball of the valve will comes in the level with the inlet flange. “IVE” offers following types of Flush Bottom Ball valves: 1) Lined flush bottom ball valve 2) Actuated ball and Y typeflush bottom valve Download Cataloge/ drawing for FLUSH BOTTOM BALL VALVE FLANGED ENDS ACTUATED FLUSH BOTTOM BALL VALVE FLANGED ENDS MANUAL

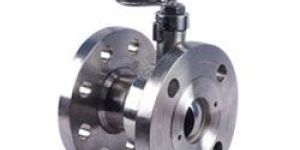

...moreflush bottom ball valves
Flush bottom ball vales ideally suitable for the free flowing of liquid where space below vessel, tank or reactor is insufficient. KEY FEATURES AND BENEFITS Unique design of “IVE” Flush bottom ball valves assures “ Zero Dead Leg Area” above the ball where it tends to close. Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20, Hast alloy and as per special specifications. Valves available in the range of 25 NB to 200 NB and in BS, ANSI, DIN, standards. Screwed/ Bolted stuffing box (Gland), easily adjustable and with repackable service. Anti blow off proof stem.

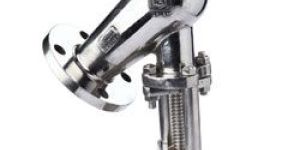

...moreflash bottom valve
“Y” TYPE Flush bottom valves are used to discharge Liquids &Slurry from the bottom of Reactors, Receivers & huge Tanks. “IVE” Flush Bottom valves are available in design of Disc opening into the Tank ( vessel opening design) & Disc lowering (inside valve opening design) into the valve body. Flush bottom valves with disc opening into the tank or opening upwards is the most commonly used. It is used where enough space is available between bottom pad and the starrier of the tank. The mass load inside the tank helps closing & tight shut off the flush bottom valve.

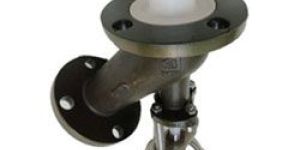

...morefep lined valve
FEP PFA Lined Flush Bottom Valves have 3 to 5 mm thick flouro polymers lining which is Anti corrosive as well as food grade. Lined Flush Bottom Valves found wide application in Chemical as well as pharmaceutical Industries. Fluoropolymers are inert to almost major acids and alkalis and gives longer working life. “IVE” flush bottom valves also offered with ECTFE ETFE and different anti corrosive coating, instead of FEP and PFA lining. Coated valves have coating thickness of 800 to 1000 micron.
...moreDiaphragm Valve
We are offering diaphragm valve. “ive” diaphragm valves are used for the aseptic application in pharmaceutical industries in pipeline carrying pure water, process fluids & major utilities. The valves are supplied with manual operation. Diaphragm valves are also used in pipeline carrying abrasive and toxic fluids. Key Features and Benefits of Diaphragm Valves “IVE” Supplies Diaphragm valves in range of ½” (15mm) to 12” (300 mm) Material of construction for Diaphragm can be EPDM / SILICON / PTFE . For highly corrosive liquid & Gases such as Chlorine , Fluorine, Bromine & other Hazardous material “IVE” offers FEP / PFA Lined Diaphragm valves
