Jacketed Vessel Dealers in Thane

• Color: Natural
• Material: Stainless Steel
• Automation Grade: Automatic
• Power: Electricity
• I Deal In: New Only
• Power Source: Electricity

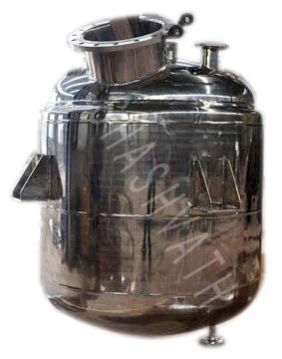

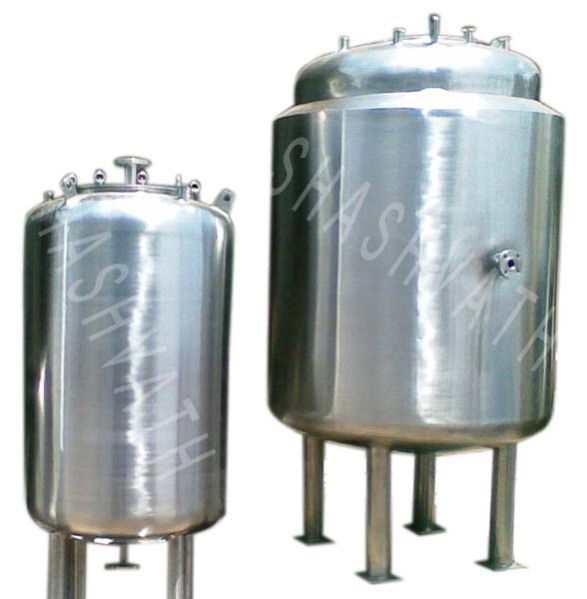

Jacketed Vessel is manufactured and supplied by us from Thane, Maharashtra. It is suitable for carrying out both exothermic and endothermic reactions. It controls the temperature for both the reactionary processes as per the requirement. It is available in the range of 500 litres to 60,000 litres. The client can give his own specification. We offer the product in three material ranges, SS 316, SS 304 and carbon steel material.   Benefits of Shashvath Jacketed Vessel Available in the range of 500 Liters to 60,000 Liters Offered in Stainless Steel 316, 304 or Carbon Steel material Spirals welded on outer surface of  the main vessel for uniform circulation of heating or cooling media like steam, oil, water etc. And also provides extra strength to the main vessel Adheres to ASME and other standards with special attention to Argon and Arc welding procedures Save Energy using two part Jacket design for smaller batch GMP range of equipments available for Pharmaceutical industry.  With mirror finish from 220 grit to 440 grit, smooth welding, flush grinding and Insulation with mirror finished S.S cladding Energy efficient direct drive design for the agitator , with VFD option to vary the RPM of the drive Agitator design to suit the reactants viscosity and density Vessel design with form cutter for the process which generates forms Save time and money with our Value added products and services like Process  Automation, valves and fittings Manufactured as per your specifications Manufacturing facilities approved by the renowned consultants and Third party inspection agencies

• Model: STD / GMP as desire
•  MOC: S. S. 304 Q / 316 Q, 14 / 16 / 18 gauge
•  Jacket: MS / SS 304 Q / 316 Q
•  Stand:  Vessel mounted on SS / MS pipe legs
•  Values:  nlet & outlet value

Optional accessories / attachments Tilting Arrangement (for easy discharge) Dished end / Conical bottom SS lid Outlet valve with hose nipple Castor wheels Trolley for easy portability Can be supplied with Agitator, Anchor stirrer, Homoginizer, Disperser Capacity 50 – 1000 liters or as per desire

At the bottom the rotating shaft consists of an impeller. All the contact parts i.e. the rotating shaft, the cross bars, the inner shell and the base of the vessel will be made from S.S.304 material.The drive will consist of a Motor of desired HP coupled to a suitable gear box to give a final output between 100~125 rpm.
