• Brand Name: Automatic Electric Ltd.
• Product Code: Dual Kwh Meter

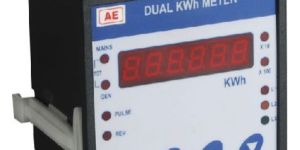

AE Dual Source KWH meter measures energy (Watt hour) Of both MAINS as well as GENSET, consumed in, Three phase 2 / 3 element,3 / 4 Wire, balanced / unbalanced load circuits. The meter comprises of advanced microcontroller technology for reliability & accuracy. The user-friendly operation is the unique feature of this meter. Features : Available in Size 96mm x 96mm. True RMS measurement of energy. Phase sequence and Current direction reversal indication. Self Powered Auxilliary supply. Single meter records both mains / DG energy consumption. Individual phase missing indication. Automatic source (MAINS/GENSET) detection. ONSite selectable CT ratio. Isolated solid state separate pulse outputs for both DG & MAINS. Display Total Energy (MAINS+GENSET). In built RS 485 communication port Password protection. Model available in this range : 6-digit LED display With MODBUS (RS-485) communication 6-digit LED display Without MODBUS (RS-485) communication Application : Industrial & Commercial Generator sets. Building management System. Energy Management System. Control & Monitoring Systems Process Control. Switch Gears.

• Display Type: Digital
• Type: 3P2E3W/3P3E5W
• Operating Temperature: 0-60 degree C
• Brand: AE
• Accuracy Class: 1
• Auxiliary Supply: Self Powered
• Pulse output: 2400 imp/KWH
• Open Collector Output: 24 V,100mA DC
• Insulation Resistance: Greater Than 20m Ohm
• Humidity: 95%
• Display Digit: 6 Digit
• Input Voltage: 110V/240V/415V AC
• Nominal Input Current: 1A/5A
• Operating Frequency: 45-55 Hz
• Operating PF: 0.5Lag,Unity 0.8 Lead
