Level Gauges Dealers in Naupada, Thane

• MOC of Float: SS 304 / SS 316 / SS316 L / Monel
• Float dimension: 50 mm OD X 250 mm long or, 45 mm OD X 150 mm long
• Mounting: Top Mounted or, Side Mounted along with Bypass assembly
• Service: Any Non Sticky Liquid
• Level Indicating Scale: Acrylic or, Aluminium Scale of 25 mm width with 10 mm Intervals.
• Max. Working pressure & temperature: 10 Kg/cm2 and 150 degree C - Standard
• Level Switch: Field settable Reed or, Micro Switches also can be provided with this typ eof gauge

Bi-colour Roller Magnets type Level Gauges consistes of series of bi-color magnets housed in a rectangular narrow chamber.These bi-color magnets are actuated by a magnetic float, which moves with the liquid level.   Display type : Red & White or, similar colored rollers (ball type or strips type) with delrin bushes protected with Aluminium or, SS channel.

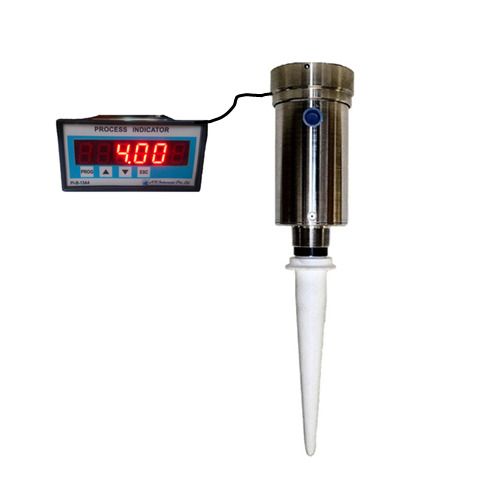

We offer Radar Level Indicator. We are capable of supplying highly operational and functional radar level indicators in the indian market that are procured from reliable vendors. These radar level indicators offered by us are widely appreciated in the market for the high efficiency they provide. Further, we are also capable of meeting clients’ bulk requirements in stipulated time. The clients can avail these radar level indicators at very moderate price. technical specifications self adjusting tracking radar programmable (recommended) and simple push-button calibration output 4-20 ma 20-4ma (isolated on 4 wire model's only ) optional rs232 or rs485 for communications with calibration diagnostics & data logging software pl compatible (modbus rtu) three or four wire operation used in food and beverages industrieswater wastewater chemicals with vaporssolids with dust powder to enquire about the desired product(s), just check the box and then click “inquiry now” button which is provided below.

• Feature: Simple push-button calibration (Accurate), Output 4-20 mA / 20-4 mA, PLC compatible

The Transmitter works on Sound Waves and the out put from the same ( 4 to 20 mA) is given to a Digital level Indicator. The instrument is suitable for Foam Free and fumes Free material only. The type of Transmitters are 2 wire type and 34 wire type.

• Range: 300 mm to 6000 mm.
• Temp. Rating: 150 Deg C.

Magnetic level indicators are used to measure the level of fluids. Fabricated using superior quality basic material by employing advanced machinery and sophisticated tools, these products compiled to the defined parameters of the industry in an efficient manner. These magnetic level indicators are mainly used in the hazardous pressurized vessels. Therefore, customers can avail these offered products from us in multifarious sizes and specifications as per their requirement.

We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Float & Board Type Level Indicator. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life.  Float & Board Type Level Indicators : Suitable for tall & overhead tanks of non pressurized and non hazardous chemical storage tanks.In this level indicator, the indication pointer is gliding over a screen printed scale board with the help of wire rope and float moving on dust free pulleys.MOC       - SS 304/ SS 316 / PP & PVDF/ Halar CoatedRange     -1-20 meterAccuracy - +/-1 cm.Option     - 1) Vapour Seal Magnetic Type                2) U Type Liquid Seal.

Level Indicators, conductivity indicators, flow transmitters

Conical Basket Strainer
