Level Switches Dealers in Naupada, Thane

• Housing: Aluminum, Weather Proof, Powder Coated. Integral with the Probe
• Cable Entry: 2 Nos.
• Ambient Temperature: 0 ° C to +60° C
• Power Consumption: 1.9 VA
• Mains Voltage: 230/110 V AC (+/-15%), 50 Hz
• Output: 1 sets of potential free c/o contacts rated at 5 amps, 230 V AC for non-inductive loads.
• Switch Status Display: Green LED shows Normal, Red LED shows alarm condition
• Mounting: Screwed – 1 ½” BSP (standard) Or Flanged (optional)
• Sense Rod: Stainless steel, 12 MM DIA
• Paddle: 1 – 4; Paddles depending upon application.
• Operating Temp. in: 80 Deg for the Standard Unit. 200°c On Request

We offer Rf Admittance Level Switches. The rf admittance level switches offered by us are procured from reliable vendors and are widely appreciated and used in various applications of building industry material as well as in food industry. The rf admittance level switches made available by us are in great demand in the national market for their efficient working, high functionality and excellent features. The clients can avail these rf admittance level switches at market’s leading price. comprises of specially designed electronics and sensing probe using driven shield coat guard circuit corresponding 3-element probe salient features three element coat guard technologyconfigured for both high and low level point switchingreduces inventory costignores material build-up suitable for highly dusty environmenteasy installation field selectable operation logicprovides economical solutions to enquire about the desired product(s), just check the box and then click “inquiry now” button which is provided below.

Our rf level switch is widely applied in various products such as building industry materials, cement, sand, lime, milk powder, flour, salt, food grains, powder, granular, chemical and mining etc. These comprise of a specially designed electronics and sensing probe using driven shield coat guard circuit and corresponding 3-element probe. The electro-mechanical combination of the coat guard technique is there makes the system immune to the material build-up on the probe and material bridging between the probe and the hopper wall. The measured signal does not flow to the hopper wall through the probe in the backward direction but flows only through the material.

• Mains Voltage: 230/110 V AC (+/-15%), 50 Hz OR 24 V DC
• Power consumption:: 1.9 VA
• Ambient temperature: 0 ° C to +60° C

RF level switch is widely applied in various products such as Building industry materials, cement, sand, lime, milk powder, flour, salt, food grains, powder, granular, chemical and mining etc. These comprise of a specially designed electronics and sensing probe using Driven Shield Coat Guard circuit and corresponding 3-Element Probe. The electro-mechanical combination of the Coat Guard technique is there makes the system immune to the material build-up on the probe and material bridging between the probe and the hopper wall. The measured signal does not flow to the hopper wall through the probe in the backward direction but flows only through the material.

• Switch Type: SPDT
• Usage/Application: Industrial
• Pole And Throw Specification: SPST
• Media Type: Dry Material
• Level Measurement Type: Point Level
• Working Pressure: 5 bar

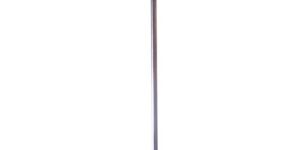

We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Side & Top Magnetic Level Indicator. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life.. The switch works on magnetic principle. The float carries a powerful magnet activating the microswitch which is enclosed in a FLP/WP housing. This snap acting switch is completely Glandless, hence no leakage possibility in the Switch housing.Enclosure       - Whether proof / Flame proofMOC                 - CS/SS 304 /SS 316/PPContacts         -1 No + 1 NcSwitch Rating - 5 Amps X 230 VAC Snap acting microswitch Size     - Min. 50 NB -150 NB Max.                       Flanged / Screw type.
