Level Transmitter Dealers in Naupada, Thane

• Accuracy: 1% FSD
• Medium: Conducting liquids like water based solutions or, even non conducting mediums like diesel
• Mounting: From Top of the Tank
• Level Indication: Digital through a Panel mounted Indicator (needs external power supply)
• Max.sensing Length of the Transmitter: Up to 3 Meters with Rod and Up to 10 Meters with Rope
• Sensor MOC: PFTE coated SS 316 (Rod type probe or, Rope type probe)
• Process connection: Threaded, flanged or, Triclover connection
• Electrical Terminal Housing: Weather proof Aluminium or, flameproof
• Output of the transmitter: 4 to 20 mA
• Power Supply: 24 V DC (2 wire)
• Max. Fluid Temp.: Up to 150 Degree C
• Max. Fluid Pressure: 10 Kg/cm2
• Note: If temperature is continuously varying, capacitance level transmitters are not recommended.

Capacitance type level transmitters are used for all types of liquids (without moisture, fumes and foam) capacitance level transmitter works on principle of change in capacitance between two metallic surfaces. The sensing probe would be ss rod coated with ptfe and the metallic tank would be considered as reference. We also have the capacitance type level transmitter suitable even to operate in non-metallic tanks accuracy : 1% fsd medium : conducting liquids like water based solutions or, even non conducting mediums like diesel mounting : from top of the tank level indication : digital through a panel mounted indicator (needs external power supply) max.sensing length of the transmitter : up to 3 meters with rod and up to 10 meters with rope sensor moc : pfte coated ss 316 (rod type probe or, rope type probe) process connection: threaded, flanged or, triclover connection electrical terminal housing : weather proof aluminium or, flameproof output of the transmitter : 4 to 20 ma power supply : 24 v dc (2 wire) max. Fluid temp. : up to 150 degree c max. Fluid pressure : 10 kgcm2 if temperature is continuously varying, capacitance level transmitters are not recommended.

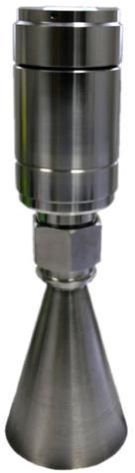

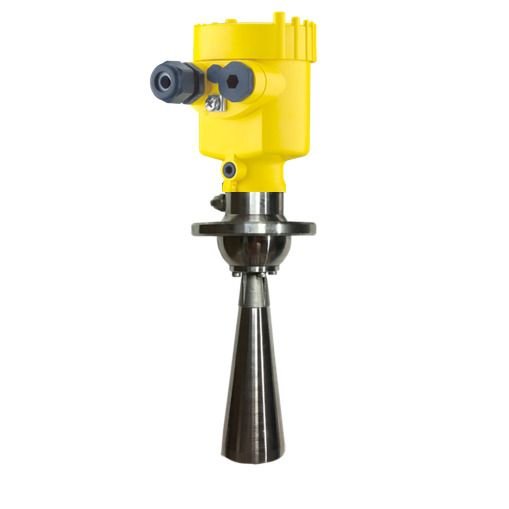

Self Adjusting Tracking Radar Programmable (recommended) and Simple push-button calibration Output 4-20 mA 20-4mA (Isolated on 4 Wire Model's only ) Optional RS232 OR RS485 For communications with calibration diagnostics & data logging software PL Compatible (Modbus RTU) Three or four Wire Operation Application: 1) Food and Beverages Water Wastewater Chemicals with vapors 2) Solids with Dust Powder

• Brand Name: NK Instruments Pvt Ltd
• Type: Rigid
• Usage/Application: Level Measurement of liquid in the tank
• Material: SS, PP or any Alloy
• Ambient Temperature: 60 degree C
• Voltage V: 24 V DC
• Temp Press: standard version
• Process Connection: Threaded or, Flange type

• Frequency: 50 To 60 Hz
• Accuracy: 0.2 % FS
• Country of Origin: Made in India
• Measuring Range: 0-50 M
• Pressure Unit: 0-5MPa
• Voltage V: 12 to 36 V DC
• Temperature Unit: -40 to 80 degree C

We offer Float Transmitter Indicator and Float type Level Transmitter.

We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Level Transmitter. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life. This is more reliable techniques for continuous level indication and controlling of any liquid, since it is add on magnetic level indicator, has no direct contact with actual liquid. Hence – there is no question of corrosion, Sp. Gravity, temp, pressure, for smooth operation, this sensor tube is magnetically actuated with movement of magnetic float / tip.Construction & Working:The sensor tube is manufactured from non magnetic material to achieve undisturbed flux. it contains chain of reed switches & resisters. A magnetic float are tip tracks the level & activates reed chain. The change in resistance is in proportional to level & same is converted into 4-20 ma current by loop power transmitter and LCD unit indicates the reading.Technical SpecificationElectrical:Sensor – resistiveResolution – 10 mmAdjustment – Zero for 4, full for 20 maInput – 12 to 30 V DC (From Loop)Output – 4 - 20 ma, 30 mA MAX.Wiring System – 2 wireResistive Load - < 750 ohmsEnclosure – Die Cast Aluminum ( LM-6 )Cable Entry – ¾ ET, ½ NPT / BSPProtection– IP 65 / FLP IS -2148 GR II A II BInstallation – On top & side mounted level indicator.Max Range- 0-3 MTRS.Option : With or Without HART Protocol Indicator Unit:Display- 3 ½ Digit. 7 segment LCDPower Supply - 230 ACHousing Panel mounting: cut to size 96 x 96Set Points: Multiple alarm relay

• Range: 0.6 - 15m.{2-49 ft}
• Accuracy: : 0.25 %

Monoscan is a product of solid applied technologies ltd., Israel. Monoscan is an ultrasonic level measuring instrument with a loop-powered 4-20ma device, with integral lcd display.Monoscan is an excellent choice for measuring the level with a 0.25 % accuracy.

Level Transmitters, Pressure Gauges, conductivity indicators

Level Transmitters, Effluent Water Treatment Plant
