Level Transmitter Dealers in Thane

• Material: Metal
• Range: Up to 20 Bar (200 Mh2o)
• Accuracy: 0.1%FS, 0.2% FS, 0.4 %FS and 1%FS.
• Material: Stainless steel submersible
• Quick response time: < 25 to 30 ms
• Output: 4 ... 20 Ma and Voltage Outputs

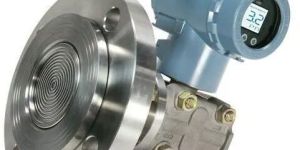

This Instrument are a pressure transmitter available in 4 ... 20 mA current loop or in voltage output signal versions. This transmitter offers a very high accuracy over a wide temperature range, an excellent repeatability and very long term stability.The piezo-resistive silicon sensor is anodic bonded on a very stable glass base, which is attached to a stainless steel construction. This assembly guaranties an excellent thermal isolation.The sensor is isolated from the process by a stainless steel diaphragm (1.4435 / 316L) and a filling liquid. The electronics is located within the hermetically sealed transmitter housing which give the Instrument an excellent resistance to shock and vibration. Protection class IP 68.Because these are small and submersible is universally suitable for all kinds of hydrostatic level measurements. It is the ideal product for environments such as in the food and beverage industries, water level measurement and all kind of standard industrial and processing applications.External zero setting ATEX II 1G, II 2G and II 1D Lloyd‘s Register Approval High long-term stability Excellent repeatability

• Type: Digital
• Color: black
• Application: Laboratory
• Size: standard
• Deal In: New Only
• sampling rate: 200 MS/s

• Range: up to 20 bar (200 mH2O)
• Accuracy: 0.1%FS, 0.2% FS, 0.4 %FS and 1%FS.

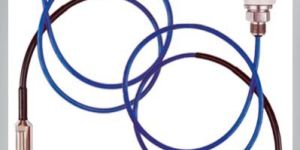

This Instrument are a pressure transmitter available in 4 ... 20 mA current loop or in voltage output signal versions. This transmitter offers a very high accuracy over a wide temperature range, an excellent repeatability and very long term stability. The piezo-resistive silicon sensor is anodic bonded on a very stable glass base, which is attached to a stainless steel construction. This assembly guaranties an excellent thermal isolation. The sensor is isolated from the process by a stainless steel diaphragm (1.4435 316L) and a filling liquid. The electronics is located within the hermetically sealed transmitter housing which give the Instrument an excellent resistance to shock and vibration. Protection class IP 68. Because these are small and submersible is universally suitable for all kinds of hydrostatic level measurements. It is the ideal product for environments such as in the food and beverage industries, water level measurement and all kind of standard industrial and processing applications.

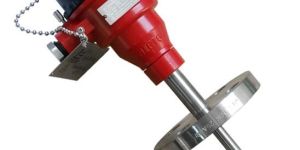

Capacitance type level transmitters are used for all types of liquids (without moisture, fumes and foam) capacitance level transmitter works on principle of change in capacitance between two metallic surfaces. The sensing probe would be ss rod coated with ptfe and the metallic tank would be considered as reference. We also have the capacitance type level transmitter suitable even to operate in non-metallic tanks accuracy : 1% fsd medium : conducting liquids like water based solutions or, even non conducting mediums like diesel mounting : from top of the tank level indication : digital through a panel mounted indicator (needs external power supply) max.sensing length of the transmitter : up to 3 meters with rod and up to 10 meters with rope sensor moc : pfte coated ss 316 (rod type probe or, rope type probe) process connection: threaded, flanged or, triclover connection electrical terminal housing : weather proof aluminium or, flameproof output of the transmitter : 4 to 20 ma power supply : 24 v dc (2 wire) max. Fluid temp. : up to 150 degree c max. Fluid pressure : 10 kgcm2 if temperature is continuously varying, capacitance level transmitters are not recommended.

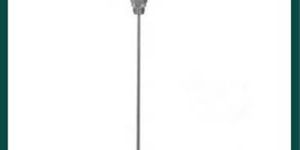

(Model No. LLT - 01)   Principle of operation :This is level transmitter - employing magnet embedded float. The magnet embedded float buoys Up along with the level rise & it cuts in or cuts out a series of resistors kept sealed inside a stem. The out put which us current signal of 0 -20 or 4-20 mA is transmitted to remote area i.e. Say Pump room or control room.Electronic unitInput supply : 230 V AC 50 HzOutput : 4-20mA, 3 wire typeAccuracy :+/- 20mm of the total rangeIndicator : Will be Box Type analogues meter or Digital display, reading in cm & Alarm : Hi-Low, Contact - NO-C-NC, Weather Proof & Flame Proof as per requirement. Display Panel Box can be Mounted any where as per like place Operator Room, Plant control Room, even more distance from Tank. It gives very clear Level Indication in Digital FormatAccuracy : +/- 1% of total range

• Process Pressure: -0.1
• Measuring Range: 10 meters
• Process Connection: Thread, Flange
• Medium Temperature: -40℃
• Accuracy: ± 5mm
• Protection Grade: IP67
• Frequency Range: 26GHz

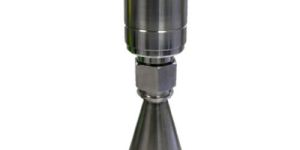

The Tank Gauging radar gauge is designed to give the best results for your specific tank. Our experienced engineers can recommend the right radar gauge for your storage tank. Tank Gauging has a range of solutions for interfacing its tank radar gauge with DCS/SCADA systems as well as gauges / monitoring systems supplied by other companies.

• Range: 50 To 2000 mm
• Out Put: : 4–20ma @ constant current load of 500 Ohms

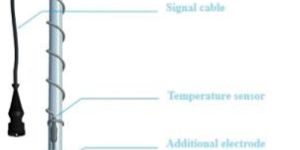

new generation capacitance based level transmitter for any type of liquids. “ELTRAN” is based on the physical properties of capacitor.The sensor selection is based on the type of liquid and can be measured from 50 mm to 2000 mm with rugged probe and above 2000 till 10000 flexible probe are used.

• Frequency: 50 To 60 Hz
• Accuracy: 0.2 % FS
• Country of Origin: Made in India
• Measuring Range: 0-50 M
• Pressure Unit: 0-5MPa
• Voltage V: 12 to 36 V DC
• Temperature Unit: -40 to 80 degree C

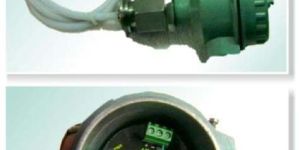

Our company is engaged in offer a wide array of products one of which is PCLX 3000MICRO CONTROLLER BASED CAPACITIVE LEVEL TRANSMITTER. Our products are value for money, as they are subjected to stringent quality control policies and are trusted by many.

We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Level Transmitter. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life. This is more reliable techniques for continuous level indication and controlling of any liquid, since it is add on magnetic level indicator, has no direct contact with actual liquid. Hence – there is no question of corrosion, Sp. Gravity, temp, pressure, for smooth operation, this sensor tube is magnetically actuated with movement of magnetic float / tip.Construction & Working:The sensor tube is manufactured from non magnetic material to achieve undisturbed flux. it contains chain of reed switches & resisters. A magnetic float are tip tracks the level & activates reed chain. The change in resistance is in proportional to level & same is converted into 4-20 ma current by loop power transmitter and LCD unit indicates the reading.Technical SpecificationElectrical:Sensor – resistiveResolution – 10 mmAdjustment – Zero for 4, full for 20 maInput – 12 to 30 V DC (From Loop)Output – 4 - 20 ma, 30 mA MAX.Wiring System – 2 wireResistive Load - < 750 ohmsEnclosure – Die Cast Aluminum ( LM-6 )Cable Entry – ¾ ET, ½ NPT / BSPProtection– IP 65 / FLP IS -2148 GR II A II BInstallation – On top & side mounted level indicator.Max Range- 0-3 MTRS.Option : With or Without HART Protocol Indicator Unit:Display- 3 ½ Digit. 7 segment LCDPower Supply - 230 ACHousing Panel mounting: cut to size 96 x 96Set Points: Multiple alarm relay

• Brand Name: NK Instruments Pvt Ltd
• Type: Rigid
• Usage/Application: Level Measurement of liquid in the tank
• Material: SS, PP or any Alloy
• Ambient Temperature: 60 degree C
• Voltage V: 24 V DC
• Temp Press: standard version
• Process Connection: Threaded or, Flange type

Ultrasonic level meter is manufactured by Scientific Devices, absorbed many kinds of level meter advantage, achieve full digital, humanized design concept, now become our last update and high end products, use cast aluminium and waterproof housing, use international common appliance connector, with standard wire connector, easy to install and with waterproof sealing cover, has perfect liquid level monitoring measuring, data transfer and human-machine communication features, use big display for the operation manu, can recode ten interrerence echo point, use import industrial class single chip, digital temperature compensation and use about ten relatived specific IC ship with wide input voltage. With a strong anti-interference, can be set for the upper and lower liquid level limitation and output adjust, also with on site display, selectable analog, switch and RS485 output, at the same time support RS485 (Modbus) serial mode debug menu, to make up for the lack of display function, convenient interface and related facilities, also intelligent software design, for make up to no display, also can use external adjustment resistor to set internal parameters. Easy to connect with the relative facility, no need to connect with industrial media to meet most of the level measurement requirements,accordingly , it can completely solve the blockage, leakage, corrosion, maintenance inconvenience shortcomings from the traditional measurement of pressure, capacitive, float type winding. Applications Water and water meter treatment Pumping stations, collection wells, biochemical reactions pool, settling ponds Electricity, mining Mortar Pool, coal slurry pond, water treatment.

We offer Sanitary Radar Level Transmitter.
