Shashvath Fabricators And Engineers Vasai, Thane, Maharashtra

  The filter press is a solid liquid separation device using the principle of pressure feeding. It is highly efficient, compact, dewatering device for separating solids from liquid slurries in the form of compressed cake. It has wide range of applications by several industries like Pharma, bulk drugs, distilleries, beverages & other industries.   The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates. As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance.   SALIENT FEATURES:   Central feeding of Unfiltered liquid ensures : Single pass clear filteration. Full Batch recovery of the filterate. No Scavenging of the filterate. Complete Cake retains on the Plate. Uniform distribution of cake on each plate. Reduce the cost of treatement of Catalyst, Toxic Chemicals. Less Exposure to the operating person. No contamination of the internal surface of the Shell.       EQUAL THICKNESS OF THE CAKE ON EACH PLATE ENSURES :   Minimum amount of solvent required to wash the Active Material from the Cake. Reduce the cost of expensive solvents. Cake can be thoroughly dried either by compressed air or by inert Gas. Uniform Filter - Aid Bed can be formed.       CLOSED SYSTEM ENSURES :   Filteration of Toxic, Hazardous, Explosive materials/ Unit can be sterilised.       PLATE PACK ARRANGEMENT ENSURES :   Any type of filtering media singularly or in combination, can be used to achieve required micro efficiency. Easy removal and cleaning of the Cartridge Assembly.       ADDITIONAL PROVISION OF EXTERNAL TIGHTENING ARRANGEMENT ENSURES :   Tightening of the Cartridge, Assembly during Filteration.       WORKING PRESSURE :   Minimum 0.1 Kg / Cm2 & maximum 10 kg/cm2       WORKING :   The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquids spreads out equally on each plate fitted with filter media. Solids remain on filter media and clear. filterate flows through precisely made holes on sides of plates and collects in the shell, which then comes out through the outlet. In this process, solids are evenly distributed on each plate. At the end of the cycle the cake can be dried by applying compressed air or inhert gas.       MATERIAL OF CONSTRUCTION :   Stainless Steel : SS 304 / SS 316 / SS 316 L       OPTIONAL :   For hot filteration application S.S. Jacket can be provided around and at the bottom of the shell, for circulation of heat transfer media viz, hot water, Steam or thermic fluids.       APPLICATIONS :   Pharmaceuticals, Perfumes, I.V. Fluids, Dyes & Chemicals, Activated Carbon, Pesticides, Cosmetics, Varnishes, Polymers, Resins & Paints, Sugar Syrup, Food, Plant Water Polishing, Fruit Juice, Soft drink, Beer & Liquors, Edible & Non-Edible Oils.       NOTES :   Filtration area and cake holding capacity have been computed for standard models 8", 14", 18" and 33" Ø.   The values of "Flow-Rates" mentioned in technical specifications have been estimated for the following operating parameters :       a) Fluid : Water   b) Insoluable : Carbon   c) Filter media : Non-woven polypropylen cloth of 418 grade.   d) Carbon loading : 5 kg/m2 filteration area.       The actual flow-rate will differ from the estimated value depending on   the operating variables.       TYPES OF FILTER     8”X6” ZEROHOLD UP     8”X8” ZEROHOLD UP     14”X8” ZEROHOLD UP     14”X10” ZEROHOLD UP     18”X8” ZEROHOLD UP     18”X12” ZEROHOLD UP     18”X15” ZEROHOLD UP     18”X23” ZEROHOLD UP     18”X23”PLATE WITH CENTRIFUGAL PUMP     24”X10”PLATE WITH CENTRIFUGAL PUMP     24”X18”PLATE WITH CENTRIFUGAL PUMP     24”X13’PLATE WITH CENTRIFUGAL PUMP     24”X24”PLATE WITH CENTRIFUGAL PUMP

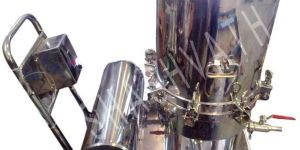

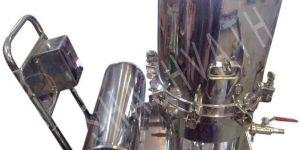

Manufactured and supplied by us from Thane, Maharashtra, Zero Hold Filter Press is a device used for the separation of solid and liquid by using the principle of pressure feeding where the filtration is done under pressure and is used in pharma, beverages and other such industries. The solid cake uses a minimum amount of solvents for cost effectiveness. It shows a working pressure of 0.1 kg/cm2 and the whole device is made of stainless steel.   Salient Featurea : Central feeding of Unfiltered liquid ensures : Single pass clear filteration. Full Batch recovery of the filterate. No Scavenging of the filterate. Complete Cake retains on the Plate. Uniform distribution of cake on each plate. Reduce the cost of treatement of Catalyst, Toxic Chemicals. Less Exposure to the operating person. No contamination of the internal surface of the Shell.   Equal Thickness of the Cake On Each Plate Ensures : Minimum amount of solvent required to wash the Active Material from the Cake. Reduce the cost of expensive solvents. Cake can be thoroughly dried either by compressed air or by inert Gas. Uniform Filter - Aid Bed can be formed.   Closed System Ensures : Filteration of Toxic, Hazardous, Explosive materials/ Unit can be sterilised.   Plate Pack Arrangement Ensures : Any type of filtering media singularly or in combination, can be used to achieve required micro efficiency. Easy removal and cleaning of the Cartridge Assembly.   Addtional Provision Of External Tightening Arrangement Ensures : Tightening of the Cartridge, Assembly during Filteration.   Working Pressure : Minimum 0.1 Kg / Cm2 & maximum 10 kg/cm2   Working : The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquids spreads out equally on each plate fitted with filter media. Solids remain on filter media and clear. filterate flows through precisely made holes on sides of plates and collects in the shell, which then comes out through the outlet. In this process, solids are evenly distributed on each plate. At the end of the cycle the cake can be dried by applying compressed air or inhert gas.   Material Of Construction : Stainless Steel : SS 304 / SS 316 / SS 316 L   Optional : For hot filteration application S.S. Jacket can be provided around and at the bottom of the shell, for circulation of heat transfer media viz, hot water, Steam or thermic fluids.   Applications : Pharmaceuticals, Perfumes, I.V. Fluids, Dyes & Chemicals, Activated Carbon, Pesticides, Cosmetics, Varnishes, Polymers, Resins & Paints, Sugar Syrup, Food, Plant Water Polishing, Fruit Juice, Soft drink, Beer & Liquors, Edible & Non-Edible Oils.   Notes : Filtration area and cake holding capacity have been computed for standard models 8", 14", 18" and 33" Ø.   The values of "Flow-Rates" mentioned in technical specifications have been estimated for the following operating parameters : Fluid : Water Insoluable : Carbon Filter media : Non-woven polypropylen cloth of 418 grade. Carbon loading : 5 kg/m2 filteration area.   The actual flow-rate will differ from the estimated value depending on the operating variables.   Type of filter 8”X6” Zerohold Up    8”X8” Zerohold Up    14”X8” Zerohold Up  14”X10” Zerohold Up 18”X8” Zerohold Up  18”X12” Zerohold Up 18”X15” Zerohold Up  18”X23” Zerohold Up 18”X23”Plate with Centrifugal Pump 24”X10”Plate with Centrifugal Pump 24”X18”Plate with Centrifugal Pump 24”X13’Plate with Centrifugal Pump 24”X24”Plate with Centrifugal Pump

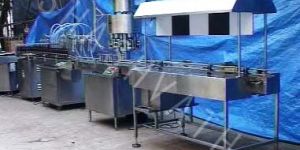

Get in touch for purchasing the Visual Bottle Inspection Machines of the fine quality within your budgetary limits. We are enlisted amid the illustrious Manufacturers and Suppliers of the Visual Bottle Inspection Machines from Maharashtra, India. Equipped with hi-tech parts and features, our Visual Bottle Inspection Machine delivers impressive results.   Operation : The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts and further on the side tables for operator sitting on either side of the table. The operator sin turn pick up the bottles and visually inspect the bottles in the alternate white and black background to check for any particles in the liquid filled, sealed and breakage of bottle. After inspection the bottles are placed in the central track.Salient Features : Designed as per cGMP - Current Good Manufacturing Practices compliance A machine structure is made from AISI 304 with matt finish. High-speed visual inspection with high output. Length can make as per customer requirement. PVC black & white board as per GMP norms Belt drives through gear motor with variable frequency drive. Provides guide for chain of UHMW self lubrication. Adjustable height of conveyor belt, to align with other machine of the line Self-alignment bearing for easy maintenance.

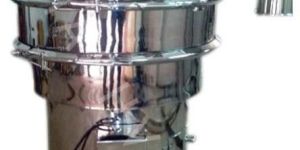

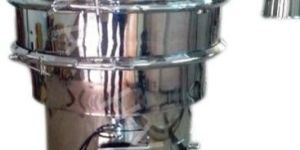

  Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force. This whole assembly is covered by SS plate. The deck hopper is fabricated from SS 316 sheet. To collect the discharge tangential, discharge port is provided on the hopper.       Conical shape top lid is provided with charging port. Screen is fitted in between the hopper & top lid. The machine inner & outer surfaces are mirror polished.       CONSTRUTION AND OPERATION :       Vibro separators are circular unitary gyratory screens used to separate mass composition of solids from solids. Liquids from solid and for gradation of materials as per particle size, having a very wide range of applications. This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis . The angle of lead of the lower weight with relation to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening. Vibrosifter are available with a wide range of possible screen sizes (mesh) option for multiple deck separation is also possible.       The unit consist of specially designed vibratory motor to run on 400/440V , HP, 3 phase, 50 cycles electric supply, with adjustable eccentric weights at the top and bottom of the motor shafts mounted vertically at the center of the base plate of screening unit. Screening unit consists of SS 304 screen sandwiched between SS 304 hopper and bowl with the help of special clamp with gasket. This in turn is clamped to the base plate. Rugged springs placed over the circular motor base amplify the vibration and at the same time restrict the vibration from being transferred to the floor.           SALIENT FEATURES:       Noiseless, Maintenance free & high speeds. Portable and compact. Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system. Standard machine are with TEFC motor explosion proof/flame proof motor material. All contact parts and screen of SS 316 material. & Non Contact Parts in SS 304. Special requirement like brushing arrangement. SS lid with charging port and spring loaded outlets. Easy dismantling and cleaning facility for contact parts. Wide range of screen sizes 4-00 Mesh. Double & triple deck screens with outlet and hopper for bottom deck available on request..   Amplitude of Vibratory Motion adjustable through moveable eccentric weight. SS 316 Hood with 200 mm dia Nozzle for dust free charging of Powders. The machine can easily be dismantled, cleaned & assemble through quick opening SS 316 clamps. Portable mounted on sturdy Castor Wheels. The Vibrating assembly is isolated by rugged springs.   Finish: Inside - 0.3 Ra. Mirror Polish. Outside - 0.3 Ra. Mirror Polish. Independent Jacks for lifting the machine off the floor for effective sifting. Dust free docking station for loading and Unloading. Silicon Bonded Integrated Mesh. Silicon Balls for Lump Breaking & Mesh cleaning.           Salient Features :   Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Side outlet & fines discharge. Easy movable & clean. Noiseless operation. Lead free and Silicon seal sieve.           Optional Features :   Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Double or triple deck sifting system           APPLICATION :       Vibro Sifter is used for screening, sieving, grading for solid-liquid separation, process to separate the desired elements and the undesired elements from the combination of solid to solid (where two solids are generally having different properties) and solid to liquid material.   It used in various industries such as   Pharmaceutical Chemicals Cosmetics Plastics Paints Minerals Rubber Compounds Metal Powders Detergents Pesticides Fertilizers Dyestuff Pigments   TECHNICAL SPECIFICATION   MODEL SFE-VS-20 SFE-VS-30 SFE-VS-36 SFE-VS-48 SFE-VS-60 Output- kg / hour 50 to 200 75 to 300 100 to 400 125 to 500 150 to 1000 Screen Diameter- mm. 500 750 915 1220 1524 Charging height- mm. 1190 1190 1190 1330 1250 Discharging height- mm. 750 750 750 700 740 Electric Power hp/kw 0.5 / 0.37 0.5 / 0.37 0.5 / 0.37 1 / 0.75 2 / 1.5

Brand Name : Shashvath

Country of Origin : Made in India

Voltage : 415 V

  Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force. This whole assembly is covered by SS plate. The deck hopper is fabricated from SS 316 sheet. To collect the discharge tangential, discharge port is provided on the hopper.       Conical shape top lid is provided with charging port. Screen is fitted in between the hopper & top lid. The machine inner & outer surfaces are mirror polished.   CONSTRUTION AND OPERATION :       Vibro separators are circular unitary gyratory screens used to separate mass composition of solids from solids. Liquids from solid and for gradation of materials as per particle size, having a very wide range of applications. This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis . The angle of lead of the lower weight with relation to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening. Vibrosifter are available with a wide range of possible screen sizes (mesh) option for multiple deck separation is also possible.       The unit consist of specially designed vibratory motor to run on 400/440V , HP, 3 phase, 50 cycles electric supply, with adjustable eccentric weights at the top and bottom of the motor shafts mounted vertically at the center of the base plate of screening unit. Screening unit consists of SS 304 screen sandwiched between SS 304 hopper and bowl with the help of special clamp with gasket. This in turn is clamped to the base plate. Rugged springs placed over the circular motor base amplify the vibration and at the same time restrict the vibration from being transferred to the floor.           SALIENT FEATURES:       Noiseless, Maintenance free & high speeds. Portable and compact. Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system. Standard machine are with TEFC motor explosion proof/flame proof motor material. All contact parts and screen of SS 316 material. & Non Contact Parts in SS 304. Special requirement like brushing arrangement. SS lid with charging port and spring loaded outlets. Easy dismantling and cleaning facility for contact parts. Wide range of screen sizes 4-00 Mesh. Double & triple deck screens with outlet and hopper for bottom deck available on request..   Amplitude of Vibratory Motion adjustable through moveable eccentric weight. SS 316 Hood with 200 mm dia Nozzle for dust free charging of Powders. The machine can easily be dismantled, cleaned & assemble through quick opening SS 316 clamps. Portable mounted on sturdy Castor Wheels. The Vibrating assembly is isolated by rugged springs.   Finish: Inside - 0.3 Ra. Mirror Polish. Outside - 0.3 Ra. Mirror Polish. Independent Jacks for lifting the machine off the floor for effective sifting. Dust free docking station for loading and Unloading. Silicon Bonded Integrated Mesh. Silicon Balls for Lump Breaking & Mesh cleaning.           Salient Features :   Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Side outlet & fines discharge. Easy movable & clean. Noiseless operation. Lead free and Silicon seal sieve.           Optional Features :   Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Double or triple deck sifting system     APPLICATION :       Vibro Sifter is used for screening, sieving, grading for solid-liquid separation, process to separate the desired elements and the undesired elements from the combination of solid to solid (where two solids are generally having different properties) and solid to liquid material.   It used in various industries such as   Pharmaceutical Chemicals Cosmetics Plastics Paints Minerals Rubber Compounds Metal Powders Detergents Pesticides Fertilizers Dyestuff Pigments

Material : : SS 304 ,SS 316 ,SS 316L

Weight : : Approximately 50 Kg

Stainless Steel Vibrators are used for driving feeds and sieves. The material used for preparing the device is SS 304,SS316 and SS316 L. They are available with a dimension of 650x1043 and weigh about 50 kg. The types of mesh used are #80 and #60 and it contains compressed air of 3 kgs. Being a leading manufacturer and supplier of stainless steel vibrators, based in Thane, Maharashtra, we at Shashvath Fabricators and Engineers handle bulk orders from our valued clients.   Details : Material - SS 304 ,SS 316 ,SS 316L Dimension - ø650(diameter) x 1,043(H) Weight - Approximately 50 Kg Types of mesh - #80 mesh and #60 mesh Compressed Air - 3kgs

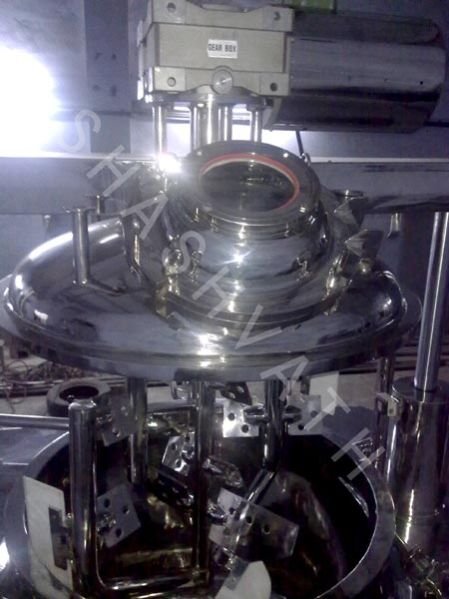

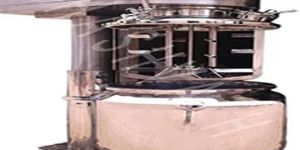

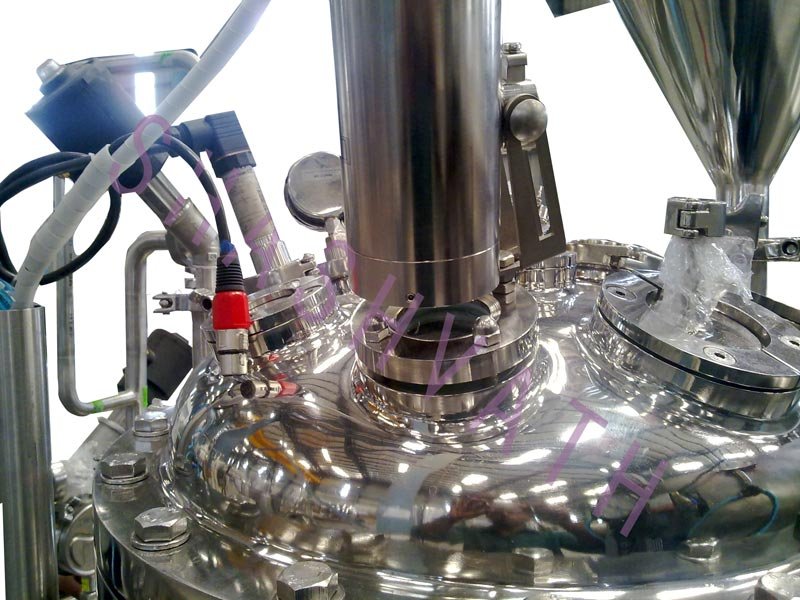

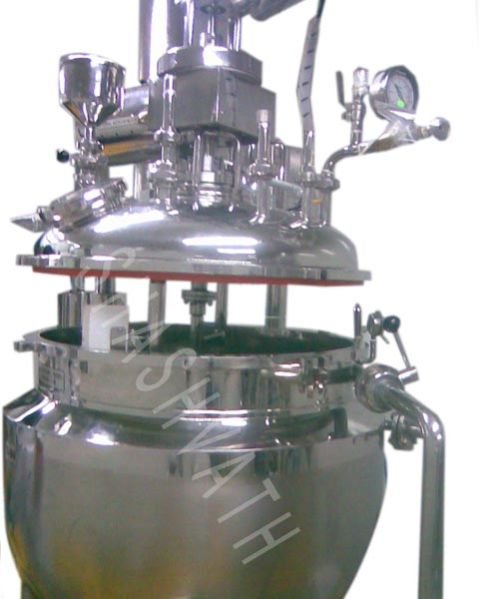

Vacuum Homogenizer Mixer is applicable for a wide variety of viscosity product, i.e. emulsions and semisolid. It integrates with pressure, heating, cooling and vacuum for Agitating, Mixing, Emulgating, Dispergating, Suspending, Homogenizing & agglomeration functions into single machine AGITATOR MIXER Two low speed agitator; Counter rotating mixer with outer anchor stirrer with self pressure Teflon scrappers and contrs rotating inner paddle blade. Ultra Mixer is a combination of counter – rotating inner paddle agitator and outer anchor agitator, generating a disturbance in the normally circular flow pattern and dampens vortex formation. The blades of paddles are pitched to promote top – to bottom flow. In addition, self adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps. HIGH SPEED HOMOGENIZER Toothed rotor / stator type Homo disperser, locates at the bottom of the vessel, accomplishes emulsification by physical action and centrifugal forces created by high speed rotation of the rotor. These actions would break up oil phase / aqueous phase liquid stream into tiny and discrete droplets. CAPACITY – 10 ltrs to 5000 ltrs

V Blender is manufactured and supplied by us in Thane, Maharashtra. A V blender is a very popularly used blender in many pharmaceutical and food factories, owing to its ability to efficiently lubricate, mix and blend ingredients. The V blenders manufactured in our Thane unit, are also commissioned at many chemical, pesticide and plastic industries. These specially designed units do not have any packing glands that enter the chamber, and thus prevent any cross contamination. The advantages of using V blenders are that it is easy to clean, charge and discharge, can be used for delicate materials and prevents product contamination.   Construction and Operation : The V-Blender is made of two hollow cylindrical shells joined at an angle of 75° to 90°. The blender container is mounted on trunnions to allow it to tumble. As the V-blender tumbles, the material continuously splits and recombines, with the mixing occurring as the material free-falls randomly inside the vessel. The repetitive converging and diverging motion of material combined with increased frictional contact between the material and the vessel's long, straight sides result in gentle yet homogenous blending. The primary mechanism of blending in a V-Blender is diffusion. Diffusion blending is characterized by small scale random motion of solid particles. Blender movements increase the mobility of the individual particles and thus promote diffusive blending. Diffusion blending occurs where the particles are distributed over a freshly developed interface. In the absence of segregating effects, the diffusive blending will in time lead to a high degree of homogeneity. V-Blenders are therefore preferred when precise blend formulations are required. They are also well suited for applications where some ingredients may be as low as five percent of the total blend size. Normal blend times are typically in the range of 5 to 15 minutes depending on the properties of material to be blended. The charging of material into the V-Blender is through either of the two ends or through the apex port. Studies on V-blenders have demonstrated that for solid powders which have similar size and shape, there is no mechanism to move the powders across the line of symmetry of the blender. For such materials, care must then be taken to load each side of the blender equally to ensure the desired homogeneity of blends. Blending efficiency is affected by the volume of the material loaded into the blender. The recommended fill-up volume for the V-Blender is 50 to 60% of the total blender volume. For example, if the fill of material in the blender is increased from 50% of the total volume to 70% of the total volume, the time taken for homogenous blending may be doubled.   Salient Features Easy to clean. Material of construction is SS 316. Integrated Vacuum loading option available. Intensifier bar can be provided for special applications. Particle size reduction and attrition are minimized due to the absence of any moving blades. Hence it can be used for fragile materials. The Bin charging system can also be incorporated in it which provides complete dust free closed environment for charging and discharging. The shape of blender body results in a near complete discharge of product material, clearly an added advantage over horizontal blenders. The absence of shaft projection eliminates product contamination. V-blenders are easy to clean. Internal attachments like lump breakers and liquid dispensers widen the applications of this blender. Capacity available from 5 -1200 L (Higher capacities upto 16000L also provided on demand).   Advantages and Disadvantages of V-Blender :  Advantages of Using V-Blender Particle size reduction and attrition are minimized due to the absence of any moving blades. Hence it can be used for fragile materials Charging and discharging of material is easy. The shape of blender body results in a near complete discharge of product material, clearly an added advantage over horizontal blenders. The absence of shaft projection eliminates product contamination. V-blenders are easy to clean.   Disadvantages of V-Blender They require high headroom for installation and operation. They are not suited for blending particles of different sizes and densities which may segregate at the time of discharge.   Optional Features : Charging Option : Loading & Unloading by Product container with Jacking trolley. Vacuum conveying system. Bin loading by hydraulic hoist. Interchangeable with different capacity 'V" shape product container. Rotary Intensifier with AC variable drive. AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. Inline milling and loading with vacuum transfer systems.   Safety Features : Safety reeling with limit switch. Overload protection and emergency stop.   Applications of V-Blenders : V-Blenders designs are most often used for the dry blending of free flowing solids. This blender is often used for pharmaceuticals, but the mixing action's slight shear limits the blender's use for some very soft powders or granules. V-Blenders are generally used for the following : Pharmaceuticals Food products Milk powder Coffee Dry flavors Ceramics Powders Pigments Pesticides and Herbicides Plastic powders Animal feeds Spice blends Fertilizers Baby foods Cosmetics Polyethylene

Shasvath hoffers a comprehensive range of hygienic tubes and fittings with smooth, crevice-free design, superior corrosion-resistance and secure, self-aligning joints to ensure trouble-free flow. This includes unions, clamp fittings, flanges, bends, tees, reducers and tubes. To ensure that exactly the right match for the process, we offers a wide variety of high quality uniform weld end fittings for all tube combinations. To match tolerances, alfa laval provides exact angles and uniform tube, bend and tee connections. Matte, raw, bright and polished internal surface finishes are available with roughness averages (ra) ranging from

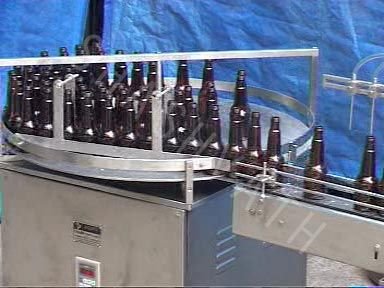

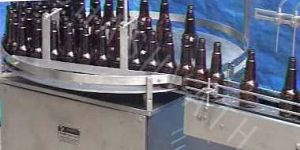

  Square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to Insure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.   Salient Features :   Design as per cGMP - Current Good Manufacturing Practices compliance Machine structure is made from AISI 304. Three step pulley for different speed. Special self-aligning bearings ensure smooth and trouble free operation. Suitable for different type of container. S.S. Elegantly Matt Finished Body. Reduction gear motor 0.5 hp ensure jerk free and noiseless operation.         Optional Features :   Variable speed drive. Castor Wheel with lock Acrylic Cover Tray for loading or unloading of container.   Available different model :   20",30",36",48" diameter of turn Table.

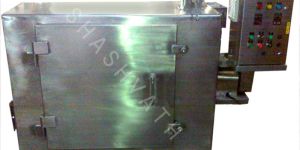

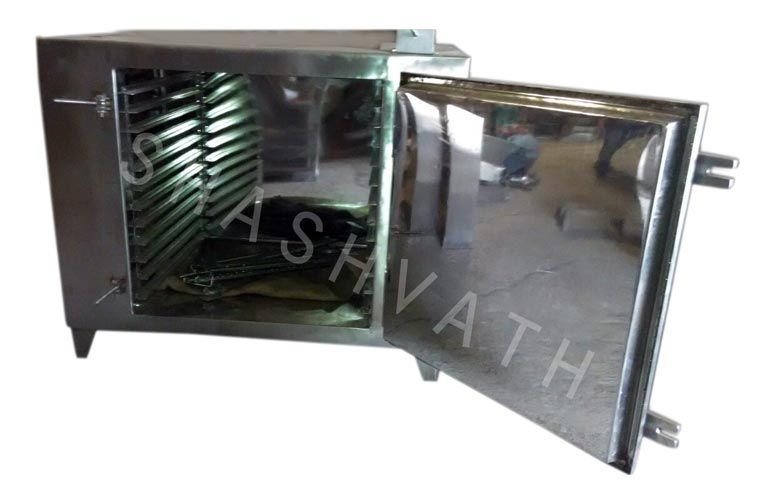

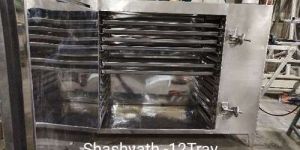

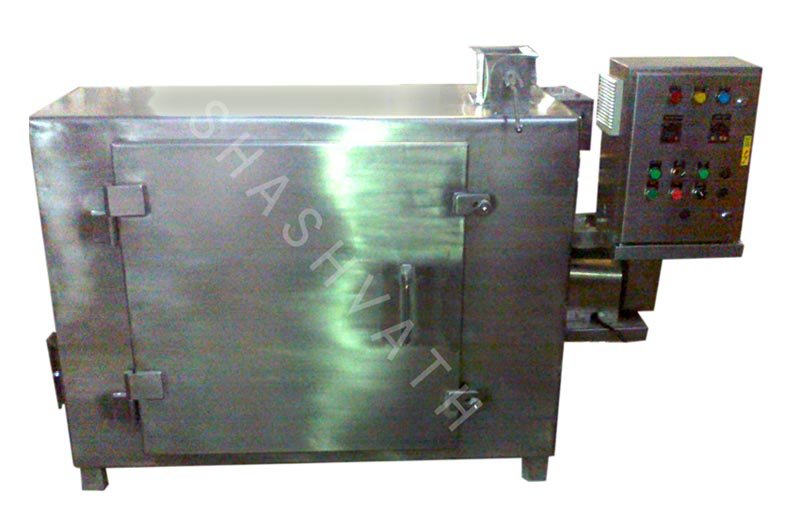

At Shashvath fabricators and engineers, we manufacture and supply the Tray Dryers from Thane, Maharashtra. These try dryers are specifically used for drying small granules and particle sized food materials in pharmaceuticals and food industries. Through the dryer, heat is applied directly to make the solid and liquid materials dry. The product is very efficient in its use and promises durability.   Salient Features of Tray Dryer : High quality, Efficient performance, Cost effective Heater system for either pressurized hot water or diameter thermal fluid Solvent recovery system with condenser and receiver, vacuum pump and ancillaries, characteristics and dimensions depending on the drying processes All contact parts made of SS 316 as PGMP standard Available in wide range models from 6 to 192 raise capacity Design for uniform circulation of hot air in the drying chamber Heating cold and fan motor having electrical inter locking for safety of heating elements Fresh air inlet and outlet air flow can be adjusted with damper control valve Electric/Steam/Thermic Fluid heating system.   Optional Features : Heating system Electrical / Steam / Gas Heating.  Separate Inlet AHU with HEPA Filtration. Perforated tray  Standard Painted Model.   Safety Features : Automatic Temperature & controls, Process cycle controls. Overload relay Protection and Emergency stop button

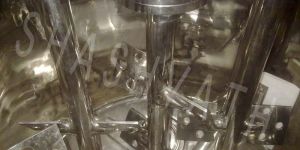

  For Processing of Liquid & Semi-Solid Emulsions like, Ointment / Cream / Gels  / Lotion / Shampoo / Toothpaste, as well as range of specialities within pharmaceutical, cosmetics, food & chemical Industry.   Technical Specification of Ointment Manufacturing Plant / Cream Manufacturing Machine   Wax heating Vessel. Water Melting Vessel. Contra Mixer. Storage vessel. Interconnecting pipeline. Pumps -Bump Pump and metering pumps. Integrated automatic control panel. Working Platform. Vacuum Pump. Storage Vessel .   Process Description of Ointment Manufacturing Plant/Cream Manufacturing Machine All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction. The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel. Wax is melted in Wax melting vessel; Water is heated in water heating vessel. Both wax and water are transferred into the manufacturing vessel automatically through vacuum. In manufacturing vessel both wax and water are homogenized to make a uniform emulsion and cooled by passing chilled water into the jacket of manufacturing vessel.The Mixing Assembly consists of series of paddle type blades of appropriate shape to move the material back towards the centre of the container. The paddle type blades are provided on the central shaft which runs through a hollow shaft on which other sets of blades are welded. Both the sets of blades intermeshes with each other and rotates in clockwise and anti-clockwise direction respectively and one sets also scraps the container wall for thorough and uniform mixing of the material.  After the emulsion is formed active ingredients/colors etc are added and are thoroughly mixed and homogenized. The same is transferred by bump pump into the storage vessel. From the storage vessel it is automatically transferred into the filling machine by means of metering pump. Flow rate of metering pump can be set as per your tube filling machines speed and capacity.     Salient Features :   The Manufacturing Vessel is an Efficient Processing System which offers Consistent High Quality Products, Shorter Batch Cycles, Minimal Operation Cost, Easy and Efficient Cleaning, Low Space requirements, & Simple Operation. All wetted Parts are of SS 316/316 L Quality Material. All Pipelines are seamless & internally Electro-Polished. Complete Untouched Process. The Manufacturing Vessel is Pressure and Vacuum Tight Mixing Vessel. All Material Transfer Done Under Vacuum.       Main Advantages :   To Avoid Hand Touch & Contamination. Saving precious batch processing time. Lower maintenance cost, as no moving components used. The entire plant can be operated by one operator & one helper, thus saving on manpower costs. Re-Circulation after Mixing Provided. Mixing and Dispersing Quality Adjustable.Specially Designed Inline Filters Provided. FLP System can be provided. (Optional)

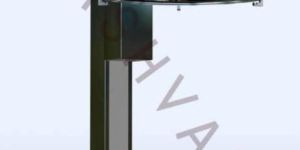

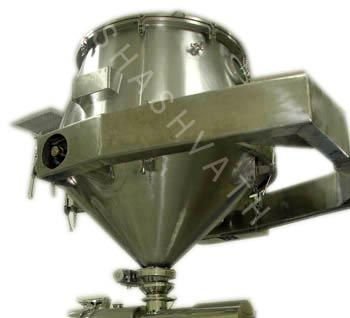

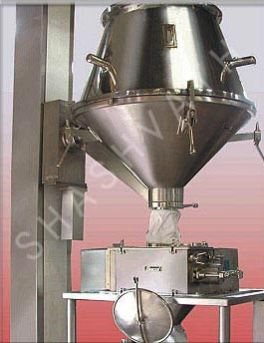

At Shashwat Fabricators and Engineers, we manufacture and supply Lifting Tipper from Thane, Maharashtra. Lifting tipper mainly finds its application in industries for the lifting and tipping of load with dried granules. It is mechanically rotatable up to 180 degree and has a carrying capacity of 30 to 600 kg. The system is completely automatic and is equipped with IBC pin to ensure dust free process. Further, a glass window is placed on the conical tapering portion to have a perfect view.   Construction and Operation : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 30 Kg to 600 Kg. Unloaded material with inline process with cone mill, granulator with IBC Bin for dust free process. Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling Eliminates tedious and unhygienic manual handling of products. Tilting arrangement with a single point pivot ensures GMP with ease of operations. 180 degree swiveling of vertical mast with vertical lift and tippling ensures motion in all three dimensions as required. Discharge cone is fitted with a 250mm diameter butterfly valve at bottom with silicon rubber seat. Can be provided with pneumatic actuator for opening or closing butterfly valve without reaching for it by pneumatic controls. Hydraulic power pack can be mounted over the service floor so the column of the tipper acts as pendent and through the hollow pivot shaft, hydraulic lines along with electric cables can travel above the working area slab. Suitable view glass window provided on the conical tapering portion of the tipper, which acts like a view window. Stainless steel lift yoke with integral rotation drives for rotation of discharge cone and container.   Salient Features Stainless steel lift yoke with Integral Gearbox for rotation of discharge cone and container. Discharge cone clamps are made of stainless steel with ease of clamping, design. Control cabinet is Powder coated in M.S. and is water tight complete with hydraulic power pack and electric controls. Conforms to latest cGMP/cGEP Standards. Double acting in-house manufactured Hydraulic Cylinder with 3 stage Fail safe seals. The cylinder is designed for an operating pressure of 100 BAR. Hose burst protection system installed on the Cylinder making it fail safe. 2 nos 8 MM Ø SS 304 Wire ropes instead of chain. Provision for the Vibratory Sifter/ Mill to be electrically connected is Built-in. Thus eliminating the cables running on the floor. Better safety and GMP. Hydraulic Tilting arrangement for maintenance free operation. Limit switches for up & down movement. Pilot operated Hose Burst Valve on the hydraulic cylinder for hydraulic safety.

Voltage : 415 V

Brand Name : Shashvath

Country of Origin : Made in India

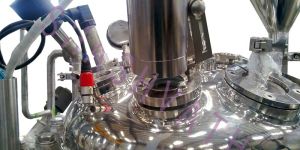

Sterile Vessel is manufactured and supplied by us from Thane, Maharashtra. The product is manufactured encompassing all the industrial norms and standards. At Shashvath Fabricators and Engineers, we welcome bulk orders from our valued clients with an assurance of delivering the product with desired quality in shortest span of time. Further, the checking of the product is carried out by our in house experts and professionals who check the Sterile Manufacturing Vessel on various parameters.

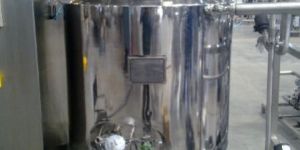

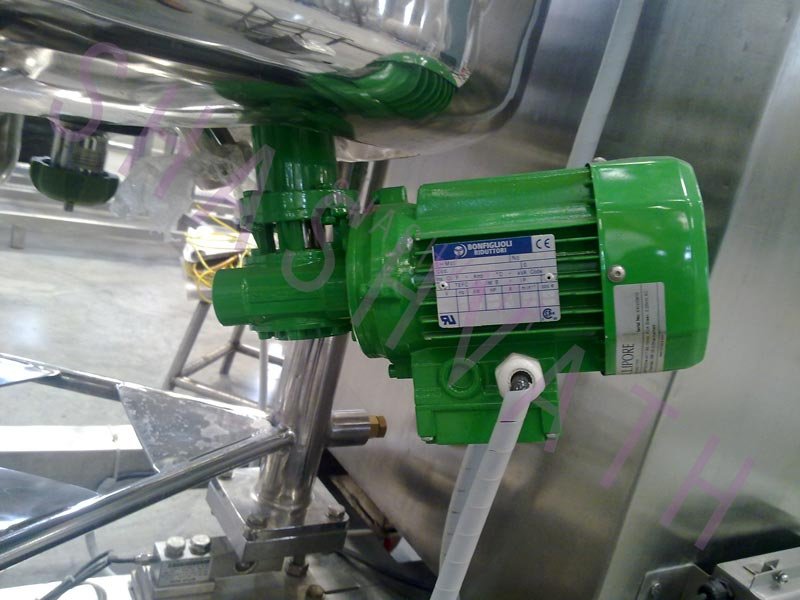

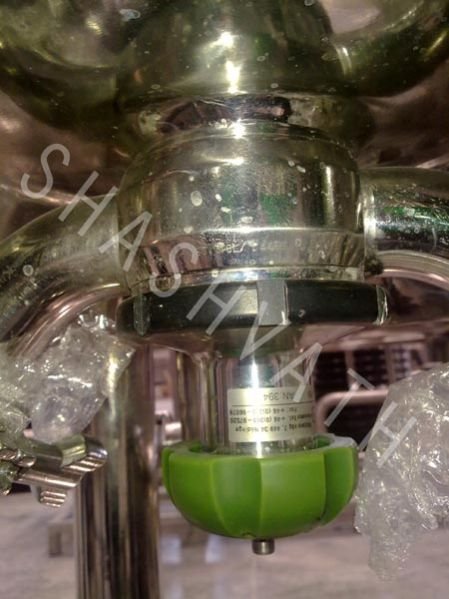

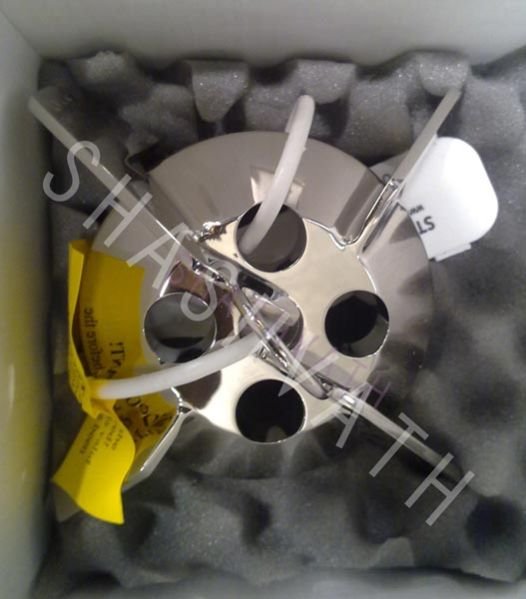

Magnetic Mixer has a drive mechanism that can be removed quickly and easily – a major advantage, because small vessels can then be autoclaved rather than sterilized-in place (if preferred). All product contact parts are stainless steel 316L, with special grade tungsten carbide bearing surfaces. These allow smooth trouble free operation and are an integral part of the impeller head and carrier. The open impeller design allows easy cleaning and can easily be removed for separate cleaning and sterilization. Magnetic Mixers are fully engineered & designed for better CIP/SIP compliances.   It should be noted that higher is the viscosity , lower is mixing capacity of Mixing head. Therefore, selection of Mixing head is based on media Viscosity & demand of mixing application. NOTE: The mixing capacities above are based on aqueous like products with a density of 1000kg/m3 (S.G.=1) and a viscosity of 1cp. Typical applications for ‘Gentle’ mixing are where solids are held in suspension. Typical applications for ‘Blending’ are where soluble liquids are mixed together or where powders easily dissolve into the liquid. Typical applications for ‘Vigorous’ mixing are where a vortex is required for blending of powders into a liquid. CONSTRUCTION DETAILS: Inside the impeller head is a ring of rare earth magnets encapsulated in a 316L stainless steel housing. Welded to this housing are the mixing blades, which form an integral impeller head.. The blade shape and profile has been determined to optimize agitation levels and to direct a proportion of the cleaning fluid through the head. A drive unit mounts externally to the vessel and can be quickly and easily removed using a bayonet type connection. This is particularly useful when sterilizing the vessel in an autoclave or when sharing a single drive unit between vessels. The impeller head runs on a special grade of tungsten carbide that has been manufactured under controlled conditions to achieve the correct size, grain structure and hardness. The running surfaces have a ground mirror finish. The vessel can be cleaned in place (CIP) using spray balls and/or by immersion in a cleaning fluid. For maximum effect rotating type spray heads are recommended. Sterilization in place (SIP) is possible with temperatures up to 145°C. A wide range of operating controls are supplied from a simple stand-alone panel to a fully integrated automation system. The Female bearing (rotating bearing) in the centre of the impeller body is Silicone Carbide. The Ultra Clean Mixer has been designed to meet the critical standards of the Pharmaceutical and Biotech industries Magnetic Mixer complies with current Good Manufacturing Practices and the requirements of Indian, British and the United States Pharmacopoeia of Water for Injection. APPLICATION : Injectables Vaccines Serums Plasma Fractions Suspensions Infusion Solutions HIGH SHEAR ONLINE MIXER SHASHVATH has substantial experience in designing, fabrication, erection & commissioning of Large Volume Parental Mixing Solution System based on Online High Shear mixing Technologies. In this design, no internal agitators are fitted which leads to no cross contamination & deviation in cleaning validation. Entire vessel from inside is electro polished leaving no space of crevices & ridges henceforth no place for any bioorganic to exist. This design is economical in investment & have far better flexibility in batch size variation as High Shear Homogenizer / Emulsifier is externally fitted in re-circulation. Online temp. mapping of re-circulatory pipe line & all points well within tanks are there for cleaning validation. Head of external homogenizer is quick release type & compatible to sterilization. Agitator seals are capable of sustaining Pure steam pressure for SIP cycle. Better & faster dissolution of solute into main WFI stream is achieved in this design as mixing is done at higher RPM & re-circulation of mixed liquid is at tangential position in tank. Therefore vortex created also enhances mixing. CONSTRUCTION DETAILS: Inside the Online Homogenizer, there is provision of 2 stage to 4 stage disintegrating head which are capable of dissolving any solute by high shear impact made of 316L stainless steel housing. Entire Mixing Tank is design of internal pressure for SIP cycle & for Vacuum application also. A drive unit mounts externally to the vessel and can be quickly and easily removed using a TC type connection. This is particularly useful when sterilizing the vessel & autoclave for Homogenizer parts. The vessel can be cleaned in place (CIP) using spray balls and/or by immersion in a cleaning fluid. For maximum effect rotating type spray heads are recommended. Sterilization in place (SIP) is possible with temperatures up to 145°C. A wide range of operating controls are supplied from a simple stand-alone panel to a fully integrated automation system. The Ultra Clean Mixer has been designed to meet the critical standards of the Pharmaceutical and Biotech industries

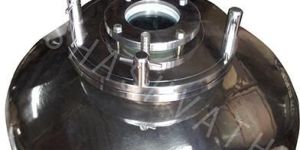

Made out of AISI 316 quality S.S. specially designed for sterile solution. Outlet nozzle fitted with a long pipe, which draws out all the liquids from the container. Top lid clamping type fitted with a glass for visual inspection. Vessel is argon arc welded with smooth finished corners and highly polished from inside and out side. The vessel is provided with 2 handles for lifting with S.S. 304 trolley with castor wheels. Complete as per our standard. This vessels are tested at 2 bar pressure , round in shape at top. COMPLETE AS PER OUR STANDARD : CAPACITY 50 LTRS. MADE OUT OF 16 GAUGE SHEET One CAPACITY 100 LTRS. MADE OUT OF 16 GAUGE SHEET One CAPACITY 200 LTRS. MADE OUT OF 16 GAUGE SHEET One

Capacity : 300Liter/hour

Material : Stainless Steel

Voltage : 415 V

Warranty : 1Year

Country of Origin : Made in India

Brand Name : Shashvath

Country of Origin : Made in India

Material : Stainless Steel

Heating Media : Steam and Heater

Number Of Tray : 6 Tray to 192 Tray

Max Temperature : 100 to 300 Degree C

Voltage : 415 V

Power : 3 Phase

Sheet Thickness : 2 Mm

Capacity : 5 kgs / Batch to 1000 kg/Batch

Material : SS

Voltage : 415 V

Frequency : 50 HZ

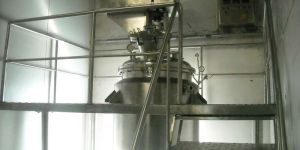

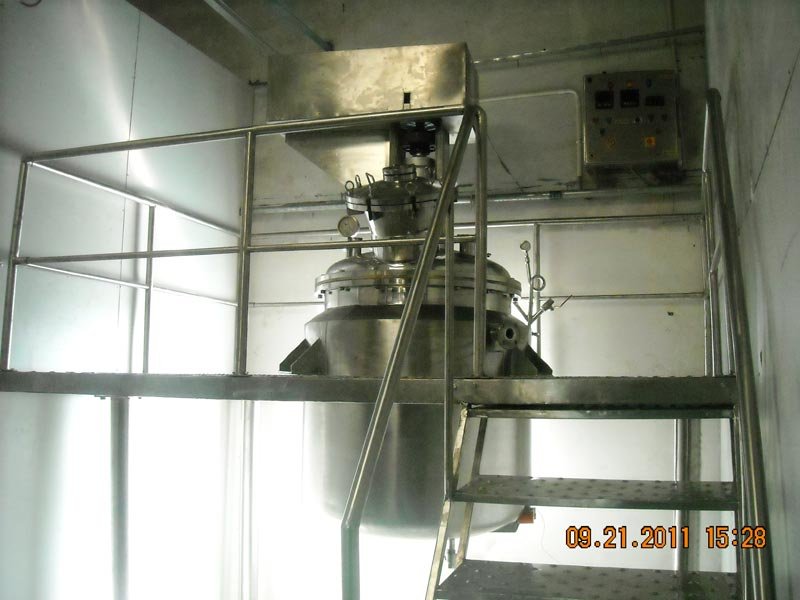

Manufactured and supplied by us from Thane, Maharashtra, Soft Gelatin cooker is a fastener for low shear mixing, having a hydraulic lifting system. The gelatin feed tank is fitted with a water filled jacket that helps in setting temperature. The material is SS304/SS316 with a dimension of 3100(L)X1600/2893(w)X3500(/H ) and a weight of 980 kg. Power consumption is 35 K w. Maximum RPM is 40 rpm and has the capacity of two 600 l tanks.   Technical Specification : Material - SS 304 / SS 316 Dimension - 3,100(L) x 1,600/2,893(W) x 3,500(H) Weight - Approximately 980 Kg (Approximately 1,200 Kg including operation platform and ladder) Power consumption - Approximately 35 Kw Voltage - 220V/380V/440V x 3 phase Frequency - 50Hz/60Hz Maximum rate - 40 rpm (fixed) Maximum temperature - 90 ~ 100â�� Maximum capacity - 600Ltrs x 2 tank / 600 liter x 1 tanks Motors - 5HP x 2 sets / 5HP x 1 sets Heating elements - Two elements of 5 Kw ( Electric Heater)   Water sealed vacuum pump Dimension - 980(L) x 380(W) x 450(H) Weight - Approximately 68 Kg Power consumption - Approximately 3.75 Kw Voltage - 220V/380V/440V Frequency - 50Hz/60Hz Main motor - 5HP

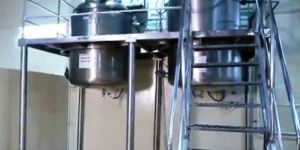

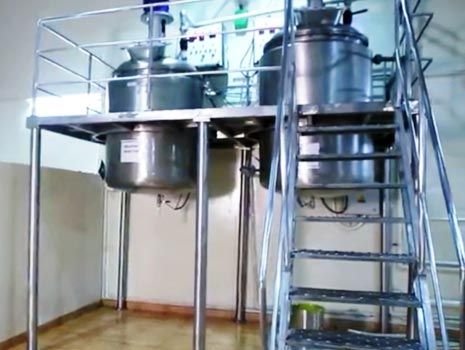

We are offering soft gelatin reactor, gelatin reactor we design, manufacture and supply soft gelatin plant equipments covering all process equipments up to encapsulating machine under stringent compliance with latest cgmp norms. The range of soft gelatin plant process equipments: glycerin sorbitol storage vessels gelatin feed tanks gelatin cooker gelatin feed tanks plain jacketed medicament storage tanks medicament mixing and gelatin color mixing and deaeration unit with hydraulic lift system medicament inline homogenizer & lobe pump ss working platform instrumentation & piping utility system of hot water & vacuum mobile auto cip unit gelatin reactor 100kgs. To 1000kgs. Capacity
