Video Matrix Switch
1 - 2 Per Unit
2 Units (MOQ)

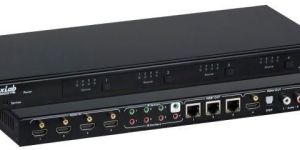

The HDMI 4×4 Matrix Switch Kit, HDBT, PoC, 4K/60 (4:2:0) allows up to four (4) different HDMI sources to be connected and/or distributed to up to four (4) HDMI displays. Theÿ4K HDMI Matrix Switch supports three (3) HDBT outputs for long distance connectivity and one (1) HDMI output for local connectivity. The Kit includes three (3) HDBT PoC Receivers which are powered by the Matrix Switch, and support distances up to 70m at 1080p and 40m at 4K via Cat5e cable. Management functions for this 4K HDMIÿMatrixÿSwitch include front panel pushbutton, IR, RS232 and webserver interface. Software updated are supported via a USB port.
