Mitool Equipments Pvt. Ltd. Ambernath East, Thane, Maharashtra

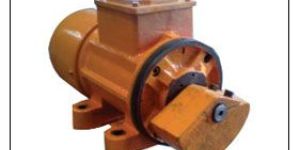

Vibrator motors are robust, highly stable under load, having cylindrical roller Bearings Vibration resistant, high quality resin impregnated windings. End Shield fitted with rubber 0 rings to give dust tight and watertight enclosure. Quite running and require no maintenance. Robust terminal board, cable wire cast in vibration resistant synthetic resin. Reliable high torque starting, Absolutely secure fixing of our of balance weights only the inner weights are adjustable, with legible markings on the weights.

TO INSTALL A DAMPER (JUST SUSPEND THE LUMINAIRE FROM THE DAMPER) WHICH WOULD PROTECT THE COSTLY LAMPS FORM THE PREMATURE FAILURE DUE TO VIBRATION AND HEAVY SHOCKS, THUS SUBSTANTIALLY SAVING ON COST OF THE LAMP, AND WHICH ALSO SAVES LABOUR AND DOWN TIME BEACAUSE OF DAMPER.SO, FROM THE ECONCOMICAL POINT OF VIEW THE HIGH BAY DAMPERS ARE INDISPENABLE FOR HIGH BAY LUMINAIRES TO SAVE VERY COSTLY LAMPS FIXED ON IT.

Vibrator motors are robust, highly stable under load, having cylindrical roller Bearings Vibration resistant, high quality resin impregnated windings. End Shield fitted with rubber 0 rings to give dust tight and watertight enclosure. Quite running and require no maintenance. Robust terminal board, cable wire cast in vibration resistant synthetic resin. Reliable high torque starting, Absolutely secure fixing of our of balance weights only the inner weights are adjustable, with legible markings on the weights.

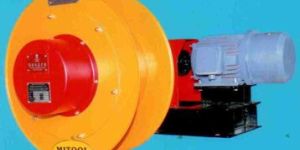

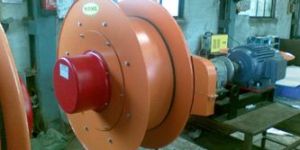

Torque Motor Operated Cable Reeling Drum suitable for handling lengths of cables in excess of those which can be handled by a conventional spring operated types. The units are totally enclosed and weatherproof. The torque motors are capable of operating continuously in the stalled position or of being rotated against normal phase rotation. In other words acting like a spring of infinite length. The motors have an integrally mounted electro-magnetic brake which is D.C. operated through a built in rectifier. Normal motor supply is 400440 volts 3 phase, 50 Hz . The drive to the reel is by means of chains and sprockets, with single or double reduction accordingly to requirements. They can handle length up to 150 Mtrs multicore cables can be used. The access to the weatherproof sliprings and brush gear is by means of an easily removable cover situated at the non driving end of the reel. These units are specially designed for automatically handling trailing cables supplying power to the long travel motion on overhead and gantry cranes. Motors used are squirrel cage as well as slipring construction. Selection of motor is depends upon torque requirement. Output torque of motor can be reduced in the slipring motor by increasing the rotor resistance.

The power unit drives the reel through an irreversible worm and wheel transmission which is totally enclosed and lubricated for life. The reduction ratio of the gearbox is fixed and rotational speed of the output spindle is selected by fitting a motor of appropriate speed. Since the motor mounts are designed to accept universally available stock motors, variation in reeling speed are easily obtained. In all cases, rotational speed of output spindle is arranged to be in excess of that required for cable reeling which ensures correct cable retrieval under all operating conditions. The energy dissipating capability of the torque controller unit, is greater than the energy permissible through the gearbox thus ensuring adequate safety margins are supplied to torque controller unit.

MITOOL Electro- Hydraulic Thrustor Brakes are suitable for 400 440 volts 3 phase A.C. Supply for a wide range of drum sizes from 100 mm to 600 mm dia higher sizes can be supplied.

The drive to the reel is by means of chains and sprockets, with single or double reduction accordingly to requirements. They can handle length up to 150 Mtrs multicore cables can be used. The access to the weatherproof sliprings and brush gear is by means of an easily removable cover situated at the non driving end of the reel. These units are specially designed for automatically handling trailing cables supplying power to the long travel motion on overhead and gantry cranes. Motors used are squirrel cage as well as slipring construction. Selection of motor is depends upon torque requirement. Output torque of motor can be reduced in the slipring motor by increasing the rotor resistance.

Slipring Cable reeling drum employs two drums, between these two drums the trailing cable is coiled without any intermediate sliprings or open contacs. Cable Drums of this type are particularly suitable for measuring cords, Multicore cable ( Control Cables ) and also for use in Ex-proof Plants. There are no open contacts between the two cable ends, this means that for room where an Ex-certificate is normally required, no special certificate is required for these drums.The cable reeling drum consists of the main drum body, and two auxiliary drums a rotating roller arm with deflector sheave and counter weight coils the cable there is also the driving unit. The drive is through springs.

Turnover Anchors are employed in centre feed installation to allow the cable to be paid out to either side of the mid-travel position.In most cases a pit is made to house the terminations joining the flexible reeling cable to fixed wiring and this is a convenient place to fix the anchor with top of the funnel at ground level. The reeling cable will then lie on the ground.

Mitool Slipring Collector columns are designed to collect and transfer a multitude of power and control supply functions from stationery to rotating or oscillating equipments.Mitool slipring collector columns are built to suit weatherproof units with easily removable covers for inspection and maintenance.Mitool slipring collector columns are designed to be continuously rated with minimum of two brushes on each slipring and meet the requirement of all current international standards.

Voltage : 500 V to 12 Kv.

Resistance boxes are designed to meet requirements of both A.C. & D.C. application. For E.O.T. Cranes, Winches, Rubber Mills, Steel Mills, Cement Mills, Power Plants, Conveyors, Coke Oven, Blowers etc., resistance boxes can be of following types : These resistors consists of grid punched from stainless steel fecral sheet and are available in wide range from 7 amps to 1500 amps continuous rating

Spring Operated Cable Reeling Drums provide extremely simple means of supplying power to machines such as cranes & hoist & are suitable for both AC & DC applications. These drums recover & store the cable in multiple layers on the drum, spring operated drums can be used for horizontal and vertical recovery of cables, Horizontal Catenary of cables, vertical pull & DC magnet reels.

Vibrating Screens are extensively used in Iron & steel works, collieries, Quarries, mines, Chemical, pharmaceuticals, ceramics, Rubber, Clay & glass industries for handling all types of materials, Mitool Make Linear motion rectangular vibrating screens are rugged & designed for long life. Mitool selects & delivers the most efficient & economical vibrating screen for individual application, creening performance is affected by various characteristic of feed material including particle size shape, Bulk density, flow ability, moisture , methods of loading etc. Most important is the particle size distribution of the feed material, Mitool Make Linear motion rectangular vibrating screens are operated by a two unbalance motors which produces liner vibrations. Linear motion screens are very high performance machines, in terns of capacity & efficiency. They have a low inclination which varies between 0-15 degree down slope. Mitool vibratory screen are supported by suitable springs which isolate the vibration.

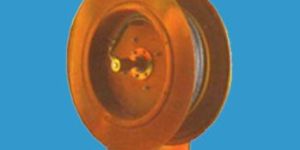

The spring operated reels are cpmstructed from one piece heavy gauge drum halves to give maximum mechanical strength and are supplied with a robust roller guide and stopcatch to relieve tension."MITOOL" hose reels can dispenses Air, Water, Grease, Oil, Gas & Petrol.

We are leading Electro Hydraulic Thrustor Brake MITOOL Electro- Hydraulic Thrustor Brakes are suitable for 400 440 volts 3 phase A.C. Supply for a wide range of drum sizes from 100 mm to 600 mm dia higher sizes can be supplied.

We are leading Festoon Cable Trolleys, manufacturers, suppliers and exporters located in Ambrnath We Manufacture Complete Range Of Cable Trolley.Single Decker,Double Decker,Triple Decker.

Spring Operated Cable Reeling Drums provide extremely simple means of supplying power to machines such as cranes & hoist & are suitable for both AC & DC applications. These drums recover & store the cable in multiple layers on the drum, spring operated drums can be used for horizontal and vertical recovery of cables, Horizontal Catenary of cables, vertical pull & DC magnet reels.

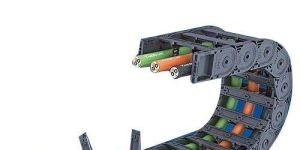

cable drag chains are so constructed that they cannot bend below a fixed minimum radius to suit the cable or hose.cable drag chain are not only used for cable leads but also for hose conveying gaseous, liquid or pulverised media. Single twisted leads can be conducted close to one another.As a result frequent movement will have no effect on oil pressure nor will there be any breaks in the electrical current.
