Niksu Power Tools Wagle Estate, Thane, Maharashtra

Packaging Type : Box

Country of Origin : Made in India

Material : SS

Country of Origin : Made in India

Material : SS

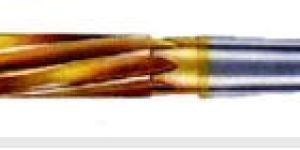

Tube Sheet Hole Reamer High speed steel, cryogenically treated & coated with titanuim Nitride for long life. Ideal for heat exchanger and tube sheet reaming. Reamers availabele in MM size also.

Features : High speed steel tool used in preparing tube sheets to suit the flaring or beading of tube ends outside of or flush with the tube sheet. MM sizes and cutters with other radii are also available.

Features : To Clean tube sheet bores, prior to tube installation. Can be used with any standard pneumatic or electric drill.

HYDRAULIC TUBE PULLING SYSTEMS Saves time & labour over conventional system. Automatic high speed cycling at high power. Continuously pulls 3" dia tubes, stubs upto 4" dia. Interchangeability of guns with same power pack. Low maintenance, long life. Silent, No heavy noise. Tube pulling with one operator. Operating controls with 24 volts. 'Auto slow start' feature to reduce breaking of tubes & consumables.

Voltage : 440 V

Material : Stainless Steel

Brand Name : Niksu

Country of Origin : Made in India

Feature : High Strength

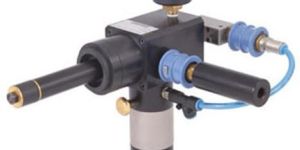

The leak director detects tube leackage merely by pressing a button. The Pressurizing gun and plugging gun are inserted into opposite ends. Pressuring Gun lets in air to pressurise the tube to 100psi with compressed air. The guage will show and hold the pressure if there are no leaks. Conversly, apressure drop is indicated on guage incase of tube leak. A quick slide of exhaust valve silently lets out the air in tube and releases the gun for next tube test.

Brand Name : NIKSU,Niksu Power Tools

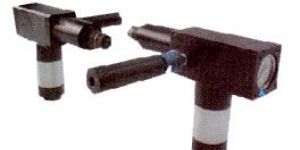

Tube Leak Detector Kit The Pressurizing gun and plugging gun are inserted into opposite ends. Pressuring Gun lets in air to pressurise the tube to 100psi with compressed air. The guage will show and hold the pressure if there are no leaks. Conversly, apressure drop is indicated on guage incase of tube leak.

Tube Joint Testing Kit is inserted in tube, a tigger expands tube seal inside the tube and beyond the length of expansion. Actuating a slide valve generates vacuum between the tube seal and face seal over the joint seam. Vacuum level is indicated on gauge.

HYDRAULIC TUBE EXPANDING MACHINE Silent, No heavy noise compare to electric or pneumatic systems. Compact drive, very easy to use inside boiler drums with one or two operators. Common Power pack for all drives. Wide range to expand 58" OD to 4" OD tubes. Reduction in Boiler erection time. Saving in Labour. Constant set torque on all tubes. Low maintenance long life. Operating controls with 24 volts.

Voltage : 440 V

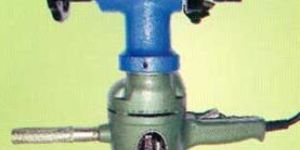

Tube End Facing Machine weld seam machining tool bits.Quick interchangabeality of Pilot to suit range of inside diameters.Modular and Ergonomic design.

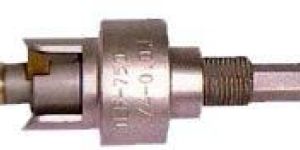

Tube End Facer TEF Tools bits coated with Titanium Nitride to give 3 times the life of convertional tool bits.Ideal for quick facing of projecting tube ends in heat exchange condenser and boilers.One size of tool is suitable for use on multiple tube thicknesses by interchanging pilot.

Tools bits coated with Titanium Nitride to give 3 times the life of convertional tool bits. Ideal for quick facing of projecting tube ends in heat exchange condenser and boilers.One size of tool is suitable for use on multiple tube thicknesses by interchanging pilot. ( TEF-375 is the exception with the tool suitable for one tube ID only.) Each tool is suplied with a set of multiple to cover all thicknesses. Tube and facers for MM size of tube also available.

Country of Origin : Made in India

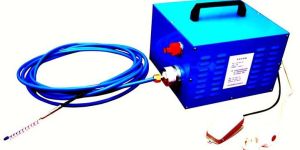

We are a well-established manufacturer of tube cleaning equipment, tube cleaning machine, dry tub cleaning equipment suitable for dry application & wet application. The different types of dry tube cleaning equipment that we offer includes wire brushes, tool head cutters, electrical tube cleaners and more. Precise, effective and cost-saving are the Tube Cleaning Equipment offered. The cleaning machine is easy to use & require little training experience to operate. We supply variety of tube cleaning equipment, flexible shaft machine, tube cleaning machine, flexible shaft, flexible shaft tools, tube cleaners, flex shafts, flexible shafting equipment, flexible shafting machine etc.

• NIKSU "One Revolution" Internal Tube Cutter pierces and cuts off non-ferrous and thin walled ferrous tubes in one revolution.• This "One Revolution" Internal Tube Cutter is designed for hand operation using a ratchet handle.• The Cutter Tool Bit operates on an eccentric principle. The TubeCutter is entered in the with the Tool Bit in closed position, ratcher is applied and turned in clockwise direction. The tool Bit contacts the tube during the One Revolution and poerces the tube wall and as turning is continued the Tool Bit shears through the tube along its circumference. This Cutter is fitted with an adjustable collar enabling it to reach into tubes at various distances and they are available in optional increments of 2" (50.8mm). Standard adjustable reach is 6" (152.4mm). "A" reach = 8" (203.2). "B" reach = 10" (254.0mm). "C" reach = 12" (304.8mm) etc.• All Cutters are available for MM tube sizes also.

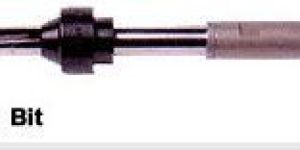

Push Type Internal Tube Cutter - ATP Internal Tube Cutter quickly cuts through the walls of ferrous tubes in Condensers and Heat Exchangers as a step in their removal from the tube sheet. This sturdy "Push Type" Internal Tube Cutter can be used with a portable Electric or Air Drill Motor.The replaceable cutting bit can be interchanged in a few seconds. Standard adjustable reach is 4" (101.6mm) and they are available in optional increments of 2"(50.8mm)."A" reach = 6" (152.4mm). "B" reach = (203.2mm). "C" reach = 10" (254.0mm) etc. All Tube Cutter come with a complete set of pilots covering the entire range of tube thickness for a particular tube O.D. (ATP-625 tube cutters come with a built in pilot suitable for one tube ID only.)

  Pulling Spears, Single and Double Pull Adaptors, Horse Shoe Locks and Extensions are compatible for use with 'Pine Jenny' type tube pullers. Spears can be modified for use with 'Wicksteed' Air / Hydraulic stub pullers. Refer to catalog number AHSP\01001 for detailed opersting instruction and features. For larger size tube pulling spares, please enquire.

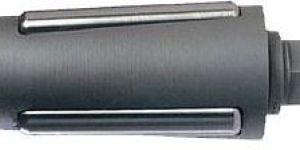

PARALLEL EXPANSION is used for repair and erection of boilers having thin tube sheets. It is approximately twice as fast during use than other conventional expanders. Use Header Mandrel when expander is to be used through a waterleg.

One Revolution Internal Tube Cutter This "One Revolution" Internal Tube Cutter is designed for hand operation using a ratchet handle. The Cutter Tool Bit operates on an eccentric principle. The TubeCutter is entered in the with the Tool Bit in closed position, ratcher is applied and turned in clockwise direction. The tool Bit contacts the tube during the One Revolution and poerces the tube wall and as turning is continued the Tool Bit shears through the tube along its circumference.

Country of Origin : Made in India

Material : Carbon Steel
