Nitrogen Generators Dealers in Thane

Being a client-centric organization, we are engaged in providing Nitrogen Generator for GC. Our skilled technocrats manufacture this generator from premium quality components and modern technology in compliance with predefined industry standards. This generator is used with thermal instruments, turbo generator (n2 concentrator), and all analytical instruments. Ahead of its final dispatch, this generator is duly checked by our quality experts on several parameters of quality. This generator is available in the market at an affordable price. Specifications : » Nitrogen & Air Generator produces a continuous flow of high purity Nitrogen at    selected    pressure.» The modular pressure swing adsorption (PSA) unit operates with alternating    pressure increase and decrease.» Untreated air flows under pressure through the reaction towers containing    molecular    sieve adsorber.» Moisture, CO, CO2, THC, Oxygen and other unwanted components in the air    are    adsorbed, leaving Zero Air & Nitrogen Gas of required purity.» Nitrogen & Air combination generator is compact (2in 1) & also cost effective    and the    compressor for generating both the gases is common.» Special Combination of Nitrogen, Zero Air for GC & Zero Air for TOC model is    also    available.» Microcontroller digital display

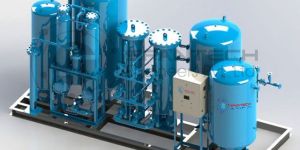

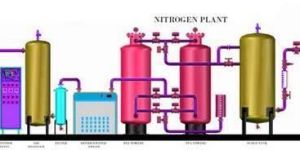

We manufacture, export and supply highly efficient and reliable Nitrogen Gas Generator. Our Nitrogen Gas Generator is precisely engineered in different configurations to suit all the requirements of our valuable customers. Based on pressure swing adsorption technology, our Nitrogen Gas Generator adsorbs the oxygen from atmospheric air and gives resultant product as nitrogen. Atmospheric air passes through the tower which is filled with special imported carbon molecular sieves. The equipment features two towers. One tower is designed for generation of nitrogen gas while the other one is efficient in regeneration of oxygen. Our Nitrogen Gas Generator is budget-friendly.

• Brand Name: Atlas Copco
• Features: High flow capacity , The wide product range and gas flows exceeding 2,000 Nm³/h (NGP+) make these generators ideal for a variety of demanding applications.
• Weight: 410 Kg
• Dimensions: 30 x 33 x 79 inch
• Capacity FND: 3 Nm3/h - 1300 Nm3/hr
• Air Factor: 1.9 to 6.3

Description : The FLO, PICO and MAXI series have a wide range of models, able to provide flows between 3 1,5 to 200 Nm / h. Each generator is available in two versions, L and H: the H, working with higher inlet pressures, is able to supply higher outgoing nitrogen flow rates.

• Ambient Temp range:  5-35°C (41-95°F)
•  Maximum air Inlet Pressure:  8 barg (116 psig)
•  Nitrogen Outlet Pressure:  See above table
•  Gas Purity:  N2 99.9995% (THC <0.1ppm)
•  Air Inlet Requirement (units without compressor):  Dewpoint: -40°C (-40°F)  Particulate: <0.1 micron  Oil: <0.01 mg/m³
•  Electrical Supply:  220v a.c. / 1ph / 50Hz or  110v a.c. / 1ph / 50-60Hz
•  Inlet / Outlet connections:  G 1/4” (BSP) Female

Noblegen’s range of laboratory and light industrial Zero Nitrogen Gas Generators are some of best designed PSA Nitrogen Gas Generators available. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen combined with heated catalyst technology is used to produce high quality Hydrocarbon Free Nitrogen gas. The Generator is controlled using the latest PLC and display technology to ensure faultless operation and ease of use. Application > GC> ICP> TOC Standard Features> Generators available with & without internal compressor> Digital display of pressure, model , hours run meter> Catalyst temperature displ ay> All pipe work i s copper to increase gas quality> 2 Year warranty includes compressors> Life- time warranty on PSA carbon sieve Options> Screen can be cus tomised for users design> Ex Hazardous area version

Nitrogen generators Flow Rates from 1 to 10 litresmin, High Purity nitrogen up to 99.9995%,Integral Jun Air compressors, Low power requirements,Simple maintenance.

Nitrogen as an inert gas is a very valued lab gas and is used for a number of lab applications. Application: Nitrogen finds it’s application in labs in Auto samplers, GC’s, LC/MS, Spectrometer, Nuclear Magnetic resonance (NMR), Protein analyzer, Solvent evaporators, Thermal galvanic Analyzer(TGA), Total Organic Carbon Analyzer etc. For Gas chromatography (GC) Nitrogen is widely used in Gas chromatography because Most gas chromatography column stationary phases are based on modified polysiloxane or polyethylene glycol materials. These materials oxidize in the presence of oxygen at elevated temperatures. This behavior, known in part as bleed, will very quickly degrade the performance of the column.

• Model Number: ATG-01
• Place of Origin: Maharashtra, India
• Port: Mumbai
• Classification: Other
• Packaging Details: wooden box
• Lead Time: 2 weeks
• Supply Ability: 5 Piece/Pieces per Month

Nitrogen is widely used in Gas chromatography because Most gas chromatography column stationary phases are based on modified polysiloxane or polyethylene glycol materials. These materials oxidize in the presence of oxygen at elevated temperatures. This behavior, known in part as bleed, will very quickly degrade the performance of the column.
