Orifice Flange Dealers in Thane

• Port: JNPT Nava Sheva
• Standard or Nonstandard: Standard
• Model Number: Product Code FE-OP-INTG
• Packaging Details: Each Piece is packed in Cartoon Box

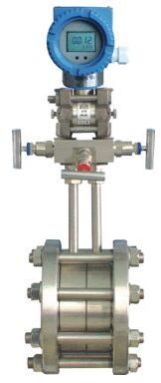

Orifice flange it indicates the existence of Orifice plate. Details such as Tag NO Orifice ID Pipe ID Plate Material are stamped on one side of the tag plate which faces upstream side of the pipe line. Outside diameter of the orifice plate equals to PCD-1 Bolt Dia. This ensures the concentricity with the main pipe line. The other method to maintain the concentricity is by using sleeves on the bolts or by providing dowel pins on the Orifice Flanges.

As the name implies, it consists of an Orifice Plate which is the basic element of the instrument. When this Orifice Plate is placed in a line, a differential pressure is developed across the Orifice Plate. This pressure drop is linear and is in direct proportion to the flow-rate of the liquid or gas.
