Paddle Switches Dealers in Thane

• Housing: Aluminum, Weather Proof, Powder Coated. Integral with the Probe
• Cable Entry: 2 Nos.
• Ambient Temperature: 0 ° C to +60° C
• Power Consumption: 1.9 VA
• Mains Voltage: 230/110 V AC (+/-15%), 50 Hz
• Output: 1 sets of potential free c/o contacts rated at 5 amps, 230 V AC for non-inductive loads.
• Switch Status Display: Green LED shows Normal, Red LED shows alarm condition
• Mounting: Screwed – 1 ½” BSP (standard) Or Flanged (optional)
• Sense Rod: Stainless steel, 12 MM DIA
• Paddle: 1 – 4; Paddles depending upon application.
• Operating Temp. in: 80 Deg for the Standard Unit. 200°c On Request

Installation Methodhorizontal or vertical installationhorizontal or vertical installationhorizontal or vertical installationProduct FeaturesHighly integrated mechanical sealing which prevent infiltration of power along the axle, special paddle can be applied for materials of low density.Special elastic clutch structure, when the paddle is overhead, it will automatically protect the motor, completely separate mechanic and electrical structure, with no need of dismanting and convenient for maintenance.ApplicationsWidely applied for manufacturing and processing instruments in fields of food, feed stuff, cement, plastic, processing infrastructure, chemical and chemical fiber industry etc.Working PrincipleOn the basis that motor drives the paddle to rotate, when the medium measure increases up to the level of the paddle position, the paddle will stop rotating for the obstruction of the medium, then there will output ON or OFF contact signal through related control structure; when the medium decreases lowr than the paddle position, the paddle, under the force of spring, will restore to the normal position to rotate and detect the position changes of medium.

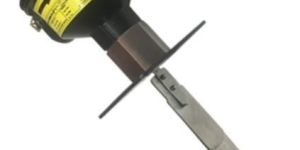

Rugged Unique Design Low Hysteresis Bellows Sealed Excellent Interchangeability Switching Assembly Isolation From Process Fluid Easy Installation Excellent Repeatability Mechanical Transmission Of Paddle Movement, Ensure Positive Operation Of Flow Switch Cover Wide range of Pipe size From 15mm to 400 mm Max pressure-15 Bar Higher Pressures Optional. Interchangeability of paddles. No magnetic parts

We have rotary paddle type level switches which are recommended only for dry mediums like powder, granuls, pallets etc. Salient features: flexible coupling (optional as per application) robust, dust and watertight housing . Extended probe possible. Extended life by motor shut off design. Sealed bearings. Interchangeable paddle assemblies, magnetic clutch mechanism technical specifications (standard): switching unit: housing: aluminum, weather proof, powder coated. Integral with the probe cable entry: 2 nos. Ambient temperature: 0 ° c to +60° c power consumption: 1.9 va mains voltage: 230110 v ac (+-15%), 50 hz output: 1 sets of potential free co contacts rated at 5 amps, 230 v ac for non-inductive loads. Switch status display:green led shows normal, red led shows alarm condition. Mounting : screwed – 1 ½” bsp (standard) or flanged (optional) sense rod : stainless steel, 12 mm dia paddle : 1 – 4; paddles depending upon application. Operating temp in : 80 deg for the standard unit. 200°c on request

• Switch Type: SPDT
• Usage/Application: Industrial
• Pole And Throw Specification: SPST
• Media Type: Dry Material
• Level Measurement Type: Point Level
• Working Pressure: 5 bar

We offer Rotating Paddle Type Level Switches for Solid. Advantage : fast & easy installation, no need of calibration, field selectable logic service : for all types of free flowing powders, pallets & granulesworking principle : clutch mechanismmounting : from top or, side of the tank no. Of switches possible in one instrument : only one max. Switching distance from top : 3 meters sensor : rotating paddle sensor moc : ss 304, ss 316 or, special process connection : threaded, flanged or, triclover connection electrical terminal housing : weather proof aluminium or, flameproof motor torque : field adjustablepower supply : 230 v ac, 110 v ac or, 24 v dc max. Fluid temp. : up to 100 degree c max. Fluid pressure : 10 kg/cm2 application : for high or low level switching in tanks for free flowing powders, pallets, granules etc. In plastic, food stuff, dairies, cement, timber and building industries.
