We are bracketed with the top-notch suppliers, engaged in offering the best quality washer thermocouple. We have outstanding in-house facilities in Maharashtra(India) and thus, we deliver massive array of products.

Wide range of barstock (monolithic drilled well of bar material) and fabricated (protection tube weld sealed at the end of drawn metal pipe) thermowells and protection tubes. Available in ss316, ss310, ss446, hastalloy b & c, tantalum and monel

Plastic machine bayonet thermocouples & rtd's, single or duplex type are made up of 4.76 mm or 6-35 mm glass-insulated wires. The hot junction is embedded in the end of a stainless steel or brass chrome plated protecting type for fast response. The tube is fitted with a stainless steel spring-loaded bayonet fitting. A rugged stainless steel flexible braided, connector for easy attachment to junction box protects lead wires. Individual lead wires are easily connected to a terminal strip by means of sturdy spade lugs. Flexobraid (india) plastic machine bayonet thermocouples & rtd's are available in different styles: type a-straight type; type b-45 angle type and type c-90 angle type. Adjustable bend, or straight or spiral type which it helps to adjust it in different depth. This popular configuration is stocked for immediate delivery. Applications: due to their fast response, rugged construction and ease of installation, flexobraid (india) plastic machine bayonet thermocouples & rtd's are unexcelled for use in measuring temperatures of heated chamber and dies in plastic molding and extrusion machine, up to 400 c continuous temp, or more depending on request. To order: specify the catalog number, which identifies the desired calibration and style. Next specify the a and l dimensions in mm, with different calibration like j, k, t, e, r, s, b etc & pt-100 (2 or3 wire system). Temperature elements thermocouples (tic) it employs two dissimilar metal if there is a temperature gradient in an electrical conductor, the energy (heat) flow is associated with an electron flow along the conductor and an electromotive force (emf), is then generated in that region. Both the size and direction of the emf are dependent on the size and direction of the temperature gradient itself and on the material forming the conductor. The voltage is a function of the temperature difference along the conductor length. So, in a practical thermocouple temperature, sensor the trick is to join material having different thermoelectric emf temperature characteristics in order to produce a usable net electron flow and detectable net output voltage. The temperature - emf characteristics have thermocouple conductor combination like k, t, j, n, e, r, s, b etc. Temperature emf characteristics confirm to ansi mc 96.11ec 5841 din 43710 standard. Limits of error for thermocouples thermocouple type temperature range c standard (whichever is greater) special (whichever is greater) t 0-350 ±1°c or ± 0.75% ±0.5°c or ± 0.4% j 0-750 ±2.2°c or ± 0.75% ±1.1°c or ± 0.4% e 0-900 ±1.7°c or ±0.5% ±1°c or ± 0.4% k 0-1250 2.2°c or ±0.75% ± 1.1°c or ±0.4% r or s 0-1450 ±1.°5c or ± 0.25% ± 0.°6c or ±0.1% b 800-1700 ±0.5% -- reference junction 0°c as per ansi mc 96.1 (1982

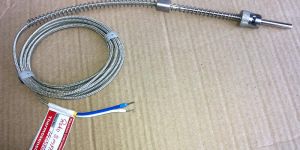

We offer Rotating Spring Thermocouple and RTD Sensor in all standard types (simplex or duplex) and varied other specifications. Rotating Spring Thermocouple and RTD Sensor are suitable for various applications with a temperature range of 750oC. Rotating Spring Thermocouple and RTD Sensor come with closed end sheaths of type SS316.

Type : Thermocouple Sensors

Material : Stainless Steel

Application : Industrial

Color : Metallic

Feature : Durable

Warranty : 1year

Our Rotating Holder Adjustable Thermocouple and RTD Sensors are suitable for various applications with a temperature range of 600oC. Rotating Holder Adjustable Thermocouple, and RTD Sensors are available in all standard types (simplex or duplex) and different specifications as per the requirements of customers. Moreover, Rotating Holder Adjustable Thermocouple and RTD Sensors are supplied with welded sheaths and a spring OD of 6.5mm.

Type : Thermocouple Sensors

Material : Stainless Steel

Application : Industrial

Color : Metallic

Feature : Rust Proof

Warranty : 1year

We procure Process Control Instruments from the best companies of the market that are renowned for fabricating energy-efficient and the best quality Process Control Instruments. We make available Digital Process Indicator and 8 Channel Scanner. The Process Control Instrument offered by us caters to the varied needs of our esteemed customers. Our Process Control Instruments are highly regarded by our customers for their optimum quality, and efficient and accurate performance.

Our Temperature Thermowell is custom built using high quality brass, MS, and stainless steel with NPT thread as per the set industry norms. Thermowell comes in a welded construction with parallel or tapered well, designed and built to suit the specific operational requirements of patrons. Thermowell can withstand high-pressure applications and is corrosion resistant.

Size : 45-60mm, 60-75mm

Type : Thermowell

Material : Aluminium

Thickness : 10-15mm

Application : Industrial

Color : Metallic

Surface Finishing : Polished

Our Mineral Insulated Thermocouple & RTD Sensor is available for nozzle, with mounting, and protection head. It is suitable for applications with temperature ranging from 200oC to 1200oC. Mineral Insulated Thermocouple & RTD Sensor is offered in varied specifications. Mineral Insulated Thermocouple & RTD Sensor ensures high accuracy, stability, and insulating resistance.Detail: High Integrlty construction sulted to hazardous operating conditions at temperature from – 200oC to 1200oC. High accuracy and stabillty maintained throughout operation life. Wide varlety of termlnation options. (Extention cable WP/FLP/SS head etc.) Fast response and high Insulating resistance. Low cost and prompt dellvery of single and duplex assemblles. Avallable in K, T, J, R, S & B with sheath dlameters from 0.5 mm to avallabllty and lengths from a few mm to as per customer requirment. Sheaths can be bent, twisted and flattened to suit particular installations without impairing performance.

Type : Thermocouple Sensors

Material : Stainless Steel

Application : Industrial

Color : Metallic

Feature : Durable

Warranty : 1year

Heavy Duty Metal Sheathed Industrial Thermocouples are suited for various industrial applications in the temperature range of 1200oC. They are offered in varied sizes as per customers’ demands. Heavy Duty Metal Sheathed Industrial Thermocouples are weatherproof and flameproof. They can work with both simple and duplex assemblies. Heavy Duty Metal Sheathed Industrial Thermocouples are supplied with different attachment fittings like fixed or adjustable flanges, welded or adjustable bushes, etc.DEtail: This assemblles are sulted for used in Hazardous industrlal envlronment for temperature measurment up to 1200oC dependent on the material used for the thick wall spun & welded closed end sheaths, thermocouple conductors type K, R, S & B. The protectlve tube sheaths of these assemblles are avallable as standard with a range of diameters from 6mm. We are pleased to advise on which sheath material and size to select to sult the operating temperature ranges, atmosphere and thermal condltlons of your partlcular appllcation. Heavy duty, weather proof & flamproof termlnatlon heads for both slmplex and duplex assemblles are avallable in elther dlecast alumlnlum & stalnless steel. Available attachment fittings include fixed or adjustable flanges, welded or adjustable bushes. These assemblies can be supplied with bends in appropriate position along the sheath to meet customer requlrments.

Type : Sheathed Thermocouple

Material : Stainless Steel

Length : 2.5mtr

Color : Metallic

Power Source : Electric

Feature : Durable

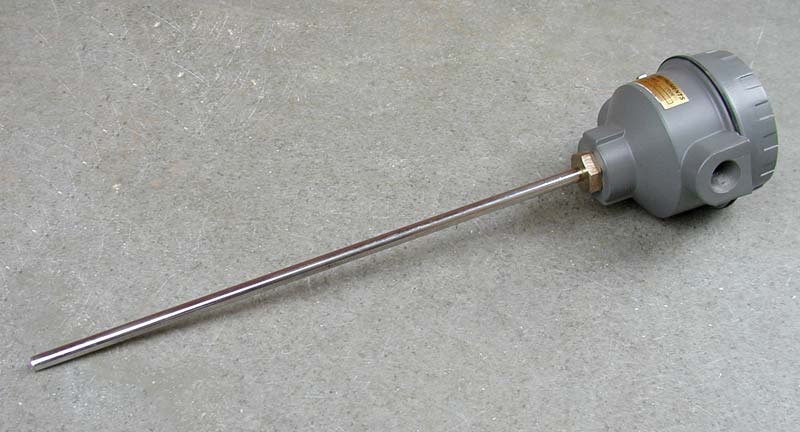

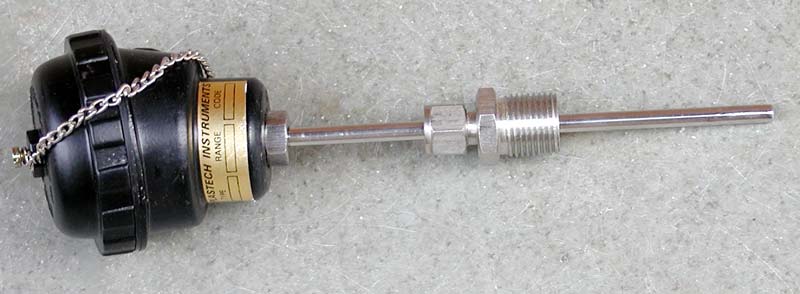

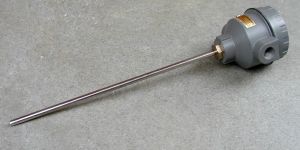

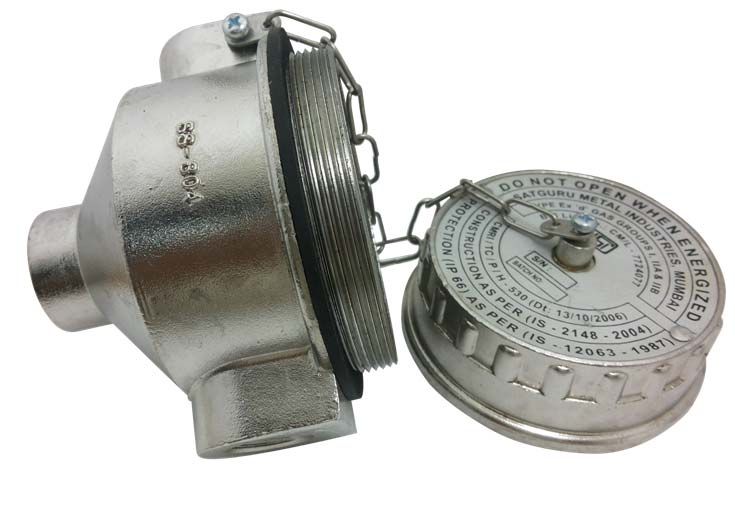

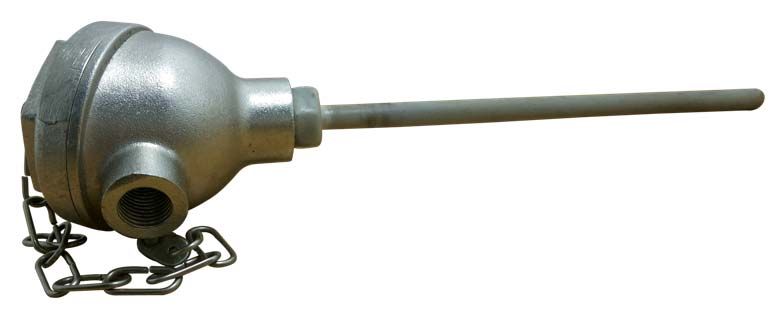

We manufacture, supply and export premium Head Type Thermocouple & RTD Sensor. Head Type Thermocouple & RTD Sensor is available in the range of Flameproof Protection Head, Flameproof Stainless Steel Protection Head, Stainless Steel Head with Teflon Coated Immersion, Weatherproof Head Type Thermocouple with Adjustable Connection, and Weatherproof Head Type Thermocouple with Fix Connection. The optional compression fittings are available in all standard and non-standard sizes as per the customers’ demands. Head Type Thermocouple & RTD Sensor comes in the temperature range of  (-)190oC to 750oC. It is suitable for both single and duplex element assemblies.Detail: Metal Sheathed Platinum Resistance Sensor Assembles : High integrity construction suited to Hazardous operation conditions. High accuracy, Repeatability and reproducebility as single and duplex element assembilles. Operation temperature range – 190oC 750oC. Fast response and high insulation resistance. Availlable in 2,3, 4 & 6 wire configurations with a wide choice of end seal confugrations and sheath fittings or weather and flameproof enclosure with inbuild head mounted Temperature transmitters. Assembly come with avaible in fe-k "J", cr-al "K" & copper constanted (T type) are an simplex or duplex are availlable with insulated or grounded. Wide size and sheat material are avallable as per customer requirements.

Certification : CE Certified

Application : Temperature Scaling

Voltage : 0-15VDC

Frequency : 50Hz

Feature : Safety Interlocks, Suitable For Sensing Level

Warranty : 1 Year

Ambient Temperature : 0-100deg C

We manufacture, export and supply General Purpose Thermocouple and RTD Sensor with probe transition joint. They are widely used in industries for big thermocouple and sensor applications. General Purpose Thermocouple and RTD Sensor are available in various sizes, types and measuring junctions. General Purpose Thermocouple and RTD Sensor are suitable for applications, which have a temperature range of 1200oC

Type : Thermocouple Sensors

Material : Stainless Steel

Application : Industrial

Color : Metallic

Feature : Durable

Warranty : 1year

We take great pride in presenting a wide array of Control Panel Accessories. The comprehensive assortment of Electrical Panel Accessories offered by us comprises of Control Panel Board, Programmable Logic Controller, Relay Card, Soft Touch Keyboard, Solid State Relay, Switch Mode Power Supply, and Voltage Stabilizer. Our entire gamut of Electrical Panel Accessories is made in compliance with industrial standards. We manufacture and supply the advanced range of Electrical Panel Accessories, including Control Panel Board, Programmable Logic Controller, Relay Card, Soft Touch Keyboard, Solid State Relay, Switch Mode Power Supply, and Voltage Stabilizer.

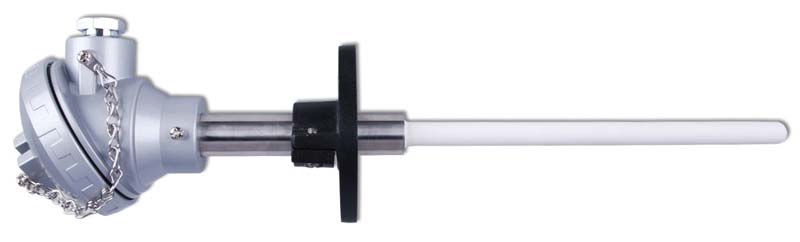

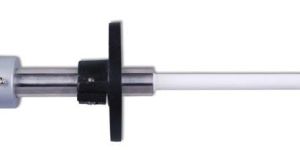

Ceramic Sheathed Thermocouple is offered by us in a range of Ceramic Sheated with PCD 70 Flange Thermocouple, and High Temperature Ceramic Sheated Thermocouple. It is used for applications having temperature up to 1600oC, particularly in kilns, furnaces, and flues. Ceramic Sheathed Thermocouple is available in varied specifications for both simple and duplex assemblies. It has weatherproof and flameproof termination heads. Additionally, Ceramic Sheathed Thermocouple comes with fixed or adjustable flanges, and welded or adjustable bushes.Detail: This assemblies are used for temperture measurment up to 1600oC plus in kilns, furnaces and flues thermocouple conductors type K, R, S & B. The protective ceramic sheaths of these assemblies are available as standard with a range of diameters from 6mm. We are pleased to advise on which sheath material and size to select to sult the operating tempearture ranges, atmosphere and therma conditions of your particular application. Heavy duty, weatherproof & flamproof termination heads for both simplex and duplex assemblles are available in either diecast aluminium & stainless steel. Available attachment fittings inslude fixed or adjustable flanges, welded or adjustable bushes. Assemblles are avllable as standard with primary and optional secondary ceramic protective sheaths in a range of diameters of  impervious aluminious porcelian, impervious recrystallised alumina, impervoious mullite and sllicon carblde etc. Assemblies in all the the common thermcouple conductor combinations are available in both simplex and duplex thermocouples. These assemblies can be supplied with bends in appropriate position along the sheath to meet customer requirements.

Type : Sheathed Thermocouple

Material : Stainless Steel

Length : 2.5mtr

Color : Metallic

Application : Industries

Power Source : Electric

Feature : Durable

Tenmperature : 0-100 Deg C

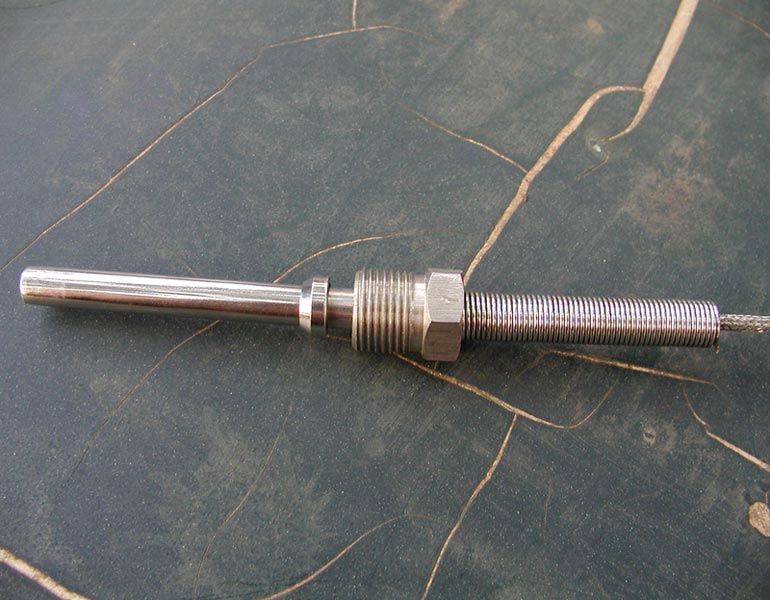

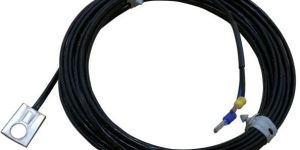

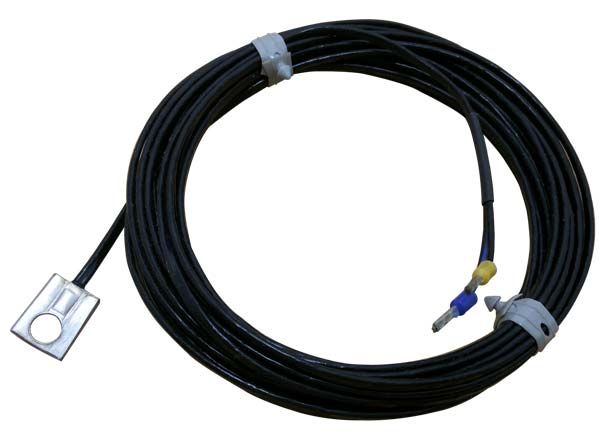

Bolt and Washer Type Thermocouple & RTD Sensor is available in an assortment of Flat Washer, Free Bolt Type, and Washer Type. Bolt and Washer Type Thermocouple & RTD Sensor is suitable for extruder nozzle, motor, etc. Bolt and Washer Type Thermocouple & RTD Sensor can be supplied in varied dimensions as to suit the diverse needs of customers.

Type : Thermocouple Sensors

Material : Stainless Steel

Application : Industrial

Color : Available in Many Colors

Feature : Durable

Warranty : 1year

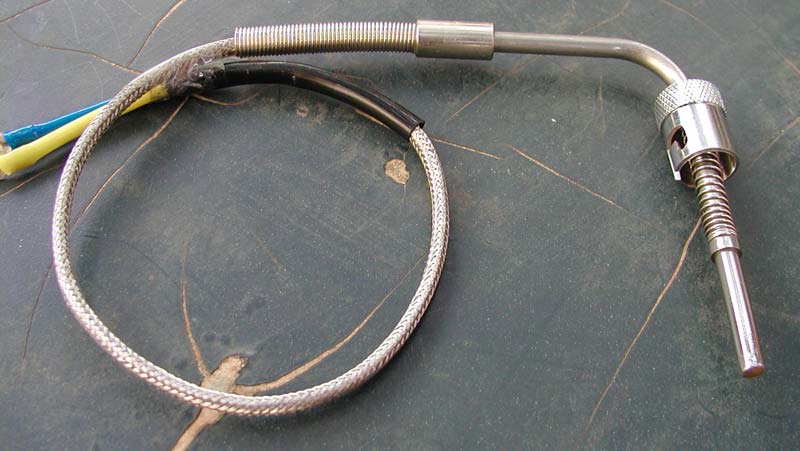

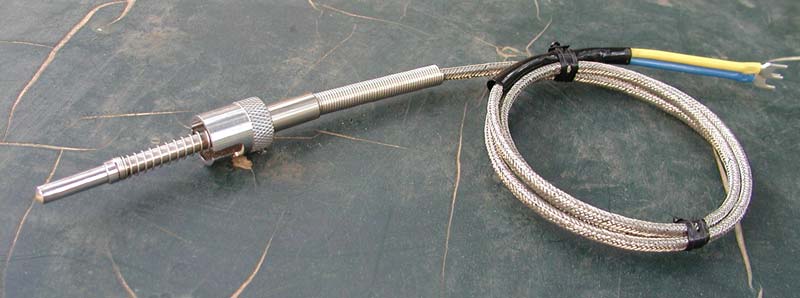

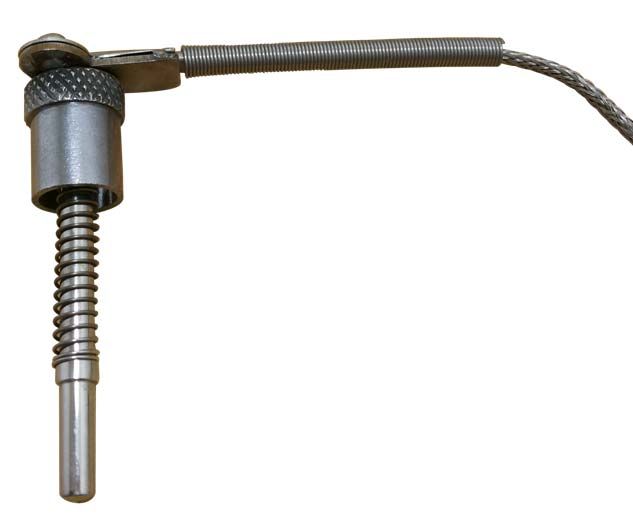

We offer Bionut Spring Loaded Thermocouple and RTD Sensors in the range of 90` L-Bend Type, O-Head 90 Assembly, Straight Spring Loaded Assembly, and T-head 90` Assembly. It is fabricated from premium stainless steel using advanced technology. Bionut Spring Loaded Thermocouple and RTD Sensors can be mounted directly in extruder heads of injection moulding machines. Bionut Spring Loaded Thermocouple and RTD Sensors are available in different sizes, styles, and mounting arrangements.

Certification : CE Certified

Application : Temperature Scaling

Voltage : 0-15VDC

Frequency : 50Hz

Power : 0-5W

Driven Type : Electric

Feature : Safety Interlocks

Warranty : 1 Year
