Pneucon Valves Pvt. Ltd. Wagle Estate, THANE, Maharashtra

Designed and Manufactured as per BS 5351 End Connection: ASME B 16.5. The Valves are designed to open directly in the tank, reactor for 100% Flushing or discharging the material. Easy Operation even under high pressures. Full circular passages. Easily replaceable PTFE seats & Packing. The design is featured with inclined bonnet which allows the automation OR manual operation to be free from fouling with the reactor disc end.

VOLOUME BOOSTER is a high volume amplifier used to increase the operating speed of the actuator, preventing the time lags, in the systems where controller & the control valve are separated by extremely long piping runs. VOLOUME BOOSTER receives the low volume signal from the controller & transmits from an auxiliary supply a high volume signal to the control valve actuator. VOLOUME BOOSTER is specially recommended for the use with large capacity diaphragm actuator.

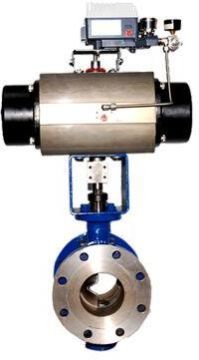

The V–Notch Ball Valve gives non-clogging, high capacity, straight through flow control of fluids containing pulp and paper stock or slurries and fluids containing suspended solids or fibrous materials. V-Notch Ball Valve is quarter turn valve with a segment Ball. The V-Ball create a wedging and shearing effect prevent the dragging of stock or slurry between the ball and its seal. The V- Notch Ball Valves are offered squared and clamped driven shaft plus ball shaft with splined connection designed for zero lost motion for highly accurate positioning and precise control.

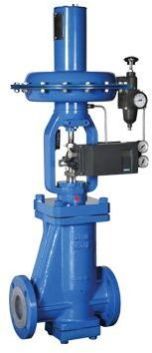

This type of valve is used extensively in the applicatons involving severely corrosive and toxic flowing media. Within its pressure limitations, this type of valve may be applied to most media. The Teflon lined body design provides an economical alternative to alloy valve bodies in wide variety of applications. The Teflon lined globe valve body has carbon or glass filled PTFE trim parts, push down to close action and positive shutoff.

Manufacturing, Exporting and Importing an extensive range of PTFE Rod, PTFE Sheet, PTFE Ring, PTFE Block, PTFE Plate and many more.

We are one of the renowned names in the market for performing PTFE Lining in different type of Valves. We can perform PTFE Lining in Diaphragm Valve, Ball check Valve, Butterfly Valve, Plug Valve, Flush Bottom Valve etc. We manufacture these products as per the industry standards.

Downstream Pressure regulating valve is self contained, self Operated control devices, maintaing a desired reduced outlet pressure, while providing the required fluid flow to satisfy a variable downstream demand. The valve at which the reduced pressure is maintained is the outlet pressure setting of the regulator. It utilizes energy from the controlled system.The pressure reducing regulators are manufactured in a variety to manage downstream system pressures in low, medium, high flow applications; model features a diaphragm piston type or combination of both to suit different applications.

The Series 700 upstream Pressure regulating valve is a throttling pressure control device that opens and closes to ensure the upstream pressure does not rise above a predetermined pressure. The need for constant pressure and control of the media is the most essential part of various process industries size fertilizers, petrochemicals, Refineries, Pharmaceutical Chemicals & food processing Plants.

The PNEUCON Power Cylinders are widely used for accurately and positively positioning all types of plant regulators such as Dampers, ID and FD. fans in Boilers, Throttle Valves and Butterfly Valves.Power Cylinder can be arranged so that increase in control pressure moves the position either outwards or inwards.

NON-STANDARD CONTROLLER OUTPUT : The positioner is used to operate a valve with 3-15 psi spring range when controller signal is other than 3 –15 psi. NON-STANDARD ACTUATOR SPRING RANGE : The positioner is used to operate valves Having non standard actuator spring ranges by controllers having the standard 3-15 psi Signal pressure. REMOTE VALVE LOCATION : When air operated control valves are located far from control Instrument, positioners will reduce lag, thereby speeding up valve operation. SPLIT RANGE : Some processes require the dual or sequential operation of two to three Control valves by a single controller with a 3-15 psi output signal range. IMPROVES OVER ALL PERFORMANCE : When process lags necessitate the use of wide Controller proportional band, the positioner provides an exact means of making the control Valve responsive to infinitely small changes in controller output pressure.

The PNEUCON PNEUMATIC VALVE POSITIONER is an instrument working on force balance principle to position the Control Valve stem in accordance to a pneumatic signal received from a controller or manual loading station, regardless of packing box friction, actuator hysteresis or unbalanced forces on the valve plug. Thus, the positioner ensures a reliable and accurate operation of Control Valve. NON-STANDARD CONTROLLER OUTPUT : The positioner is used to operate a valve with 3-15 psi spring range when controller signal is other than 3 –15 psi. NON-STANDARD ACTUATOR SPRING RANGE : The positioner is used to operate valves Having non standard actuator spring ranges by controllers having the standard 3-15 psi Signal pressure. REMOTE VALVE LOCATION : When air operated control valves are located far from control Instrument, positioners will reduce lag, thereby speeding up valve operation. SPLIT RANGE : Some processes require the dual or sequential operation of two to three Control valves by a single controller with a 3-15 psi output signal range.

High flow capacity and rangeability. Large variety of Trim design. Top opening for easy trim inspection without disturbing insulation or piping connection. Tight closing for reliable control even when changes in pressure temperature are sudden and extreme. Bolts located outside of the piping stress area to eliminate gasket crush problems, reducing downtime. Wide selection of actuators to meet most system requirement. Rigorously proven on-site performance.

Designed and Manufactured as per ANSI B 16.34, BS 5351, Pressure Testing: API 598, API 6D, End Connection: ASME B 16.1. Compact and simple construction provides ease in maintenance without disturbing insulations and piping connections. Prolonged successful operation even under High Pressures.

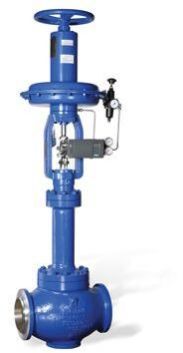

This type of Valve with its classic globe body shape, which reflects its name, uses the variable area generated between the plug and seat to control fluid flow. It is very versatile offering reduced trim options as well as a variety of special trims for severe high pressure drop applications. This style of valve is easily adapted for use on cryogenic tempetatures and for high temperature duties. This valve is preferred for tight shut – off, positioning accuracy, high rangeability and simplified maintenance, satisfy the majority of control valve applications throughout the process and power industries in control of Air, Steam, Water, Gas, Chemicals etc.

The Valves are designed to open directly in the tank, reactor for 100% Flushing or discharging the material. Easy Operation even under high pressures. Full circular passages. Easily replaceable PTFE seats & Packing. The design is featured with inclined bonnet which allows the automation OR manual operation to be free from fouling with the reactor disc end.

High Flow Capacity Best Suited for drainage system Tight closing for reliable shut off even after change in pressureTemp. are sudden and extreme Wide selection of actuators to meet most system requirements

Size : 25 to 200 mm (1” to 8”)

Linear Type (Lever Feedback) Rotary Type (Cam Feedback) Single Double Single Double INPUT SIGNAL 4-20 mA @ 24 V DC INPUT RESISTANCE 235 ± 15 W SUPPLY AIR PRESSURE Max 7.0 bar ( 100 psi ) STANDARD STROKE 10 ~ 80mm 60 ~ 100mm PNEUMATIC CONNECTION Rc 14 or NPT 14 ELECTRICAL CONNECTION G 12 or NPT 12 PROTECTION CLASS Ex md IIB T6, Ex md IIC(H2) T6, IP66, Ex ia IIB T6Eex md IIB T5 for ATEX AMBIENT TEMPERATURE -20 ~ 70°C

The Diaphragm Valve is essentially a simple pinch clamp, closed by pressing a flexible diaphragm against transverse weir, when fully closed, the diaphragm seats against the weir providing a leak tight closure. The diaphragm valves are recommended for handling sticky and viscous fluids, slurries and highly corrosive and hazardous substances and other hard to handle mediums or where tight closure is prime factor. It is the most ideal valve to handle fluids that require high purity and should remain free from contamination. The Diaphragm Valve is a simple pinch type valve and of low pressure type because of large area of diaphragm and is extensively used for both OnOff and throttling services and finds its application in Waste & Water Treatment Plants, Filtration Plants, Chlorination Plants etc

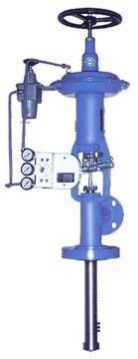

The evolutionary series 800 Desuperheater i.e. Varitrol variable spray nozzles unit can be used in many applications to efficiently reduce the superheated steam or other vapours to temperature approaching saturation. The superheated vapour is passed through a section of pipe into which is fitted a spray nozzle that produces dispersed droplets from a supply of pressurized condensate. These finely atomized particles promote almost immediate evaporation. The required heat being absorbed from the superheated vapour, thus reducing the temperature.

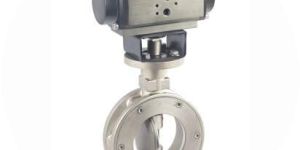

Butterfly Valve design is the most common type of rotary valve and provides low weight to Cv Ratio Combined with simplicity of design and comparatively low cost. It is simple device to control or block the Flow, a single vane or wafer disc pivots in the valve Body and find wide application for throttling or two Position control in the chemical, paper & pulp, sugar Industries, cooling water circulation, water treatment Plants, compressed air, gas plant, flue gas desulphurization plants etc. Butterfly Valves have been around industry for decades, performing well defined tasks and are Economic alternative to Gate valve, Ball valve, Plug valve etc.

Sizes : 50 to 900 mm (2” to 36”)

Air Lock is used when it is required to automatically hold the air pressure in diaphragm chamber of the actuator, on the same level in an event of failure of air supply. When supply pressure drops below a preset value, the Air Lock Relay locks the air pressure in the diaphragm chamber of the actuator thereby holding the inner valve in one position, till the air supply is resumed.

Air Lock is used when it is required to automatically hold the air pressure in diaphragm chamber of the actuator, on the same level in an event of failure of air supply. When supply pressure drops below a preset value, the Air Lock Relay locks the air pressure in the diaphragm chamber of the actuator thereby holding the inner valve in one position, till the air supply is resumed.

We are very eminent dealer in the field of supply of butterfly diaphragm.

We are prominent suppliers of control valves type globe ball with affordable prices.
