Pouch Sealing Machine Dealers in Thane

• Brand Name: Lami Coat Equipments
• Material: MS
• Finishing: Coated
• Driven Type: Pneumatic
• Shape: Rectangular
• Color: Grey
• Condition: New
• Sealing Power: 0.5 Kw
• Voltage: 220V
• Packaging Type: Wooden box
• Frequency: 50/60 Hz
• Phase: Single Phase
• Warranty: 1 Year
• Country of Origin: India
• Net Weight: 50kg
• Sealing Length: 10 Inch

With the due assistance of our deft professionals, we are capable to deliver quality-centralized lot of Band Sealing Machine. Our prime interest is to deliver a flawless range of products to the buyers. And in this concern, we make all arrangements in order to store the entire lot under safe environment.Features : Fine finish Easy installation Highly durable Optimum tolerance capacity High efficiency Long functional life

Over the years, our organization has a carved a niche for itself in Mumbai(India) and is dedicated towards becoming a trustworthy trader in other markets as well. We offer a variety of payment methods to our customers so that they can pay as per their convenience while focusing on the core trade.

• Packaging Type: Plastic Packet
• Automation Grade: Semi-Automatic
• Material: Mild Steel
• Phase: Single
• Is It Portable: Portable
• Power Supply: 220 V

Manufactures and Exports induction Cap Sealing Machine, Which is of High Quality. this is Evident from the Various Tests the Induction Cap Sealing Machine Undergoes to Ensure that It is Manufactured in Accordance with Industry Standards. These Machines are Very Efficient and are Easy to Operate. These Machines are in High Demand Since the Induction Cap Sealing Machine is Used in Industries Dealing with Textiles, Chemicals, Etc.

• Sealing Width: 5, 8, 10mm
• Sealing Speed: 3 - 4 meter / minute

This machine is a very compact state of the art. This is a vertical Pouch Sealing Machine with nitrogen flushing phenomenon, promotes high efficiency in packaging work by feeding bags vertically into the machine. It is suitable for any kind of pouch. These machines are continuous sealers useful for lamainated BOPP, Aluminum, P.P. HM. Etc.

Description of operation: the carton will be sealed manually with manual sealing machine. Firstly the film will be cut to the required size as per cartoon size with keeping the overlap arrangement.

nduction Sealing Machine consist of SS or MS powder coated fabricated Body and Sealing Head part. Provision are provided for lower & raising the height of the upper sealing head, which unable us to adjust the sealing head nearer to bottle cap for proper sealing of the aluminum foil on the neck of the bottle. The machine is mounted on wheel based unit, which provides added mobility. To radiate out the excess heat from the machine, water cooling system is used. Operation / Working: For 1 KW or 2 KW Online Fully Automatic Induction Sealing or Sealer Machine. Successful screw cap sealed container or bottle pass along the conveyor and enter below the sealing head or induction coil of the induction sealing machine which emits an oscillating electromagnetic field. As the container passes under the induction coil (sealing head) the conductive aluminum foil liner begins to heat. The heat melts the wax, which is absorbed into the pulp backing and releases the foil from the cap. The polymer film also heats and flows onto the lip of the container. When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product. Neither the container nor its contents are affected, and this all happens in a matter of seconds. Technical Details: Depending upon the speed requirement & size of the cap different model are available. Single Phase 230 V power Supply Salient Features: Portability: The machine is mounted on a wheel based unit, which provides added mobility. This make it easy for line relocation. Power Efficient Latest solid state semiconductor technology ensures reliability. It has more than 90% power conversion efficiency; therefore less power is required. Security Features: Built in protection circuitry for Over Current/ Over Voltage / Over Temperature. All this comes at NO EXTRA COST. It is Provided as a regular feature in all our equipment. Microprocessor Controls: No extra PLC required. Save Cost. Soft Touch Membrane Control Panel: For easy operator interface. Ease of Use: No tools, just plug it into 230 V Single mains power supply, set the correct power level and seal. Water Cooling System: Houses the most efficient water cooling system. Benefits of Foil Sealing: Leak Proof Increase Shelf Life Retains Aroma Tamper Proof Safe & Hygiene

The Foot operated sealing machine has a timer and a buzzer incorporated in it for ease of operation. The thicker the bag, the timer increases for sealing & vice versa. The buzzer informs the operator as to when the sealing is completed. The platform can be titled toward the operator thereby assuring effortless operation in sealing the pouches.   Specification :   Jaw Size 8”, 12”, 16”, 18”, 20”, 24”   Sealing Width 10 – 15mm   Type Impulse sealing / Line type sealing   Power 230 Volt, Single Phase, 50/60hz power supply

We are leading Sealing Machine, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India. → Model: AE-W20-L300-1 → Mechanical-electrical integration of control system. → Sealing Area – 20 X 300 mm Flat ----- Single Part (others optional) → Seal temperature: Room temperature - +300°c → Accuracy: ±0.2°c. → Heating system for both jaws. → Pneumatic System for jaw pressure → Pressure: 0.05Mpa--0.7Mpa → Dwell time: 0.01s- 9.99 secs → P.I.D. temperature controller – 02 No’s. → Power: 1.5 Kw → Supply: 230 VAC/50 Hz

This Machine is designed for Seling to Tagger on top on composite and plastic containers.

• Power: 500W
• Sealing Diameter: f20
• Weight: 5 kg
• Working method: manual
• Open method: Press the button
• Dimension: 34×29×15(cm)

SpecificationsProducts InformationThis induction sealing machine is suitable for the sealing of flat cap with screw thread for glass bottles and non-metal bottles. This induction sealing machine is unsuitable for metal containers, cover without screw, or the cap dia. between 20mm and 100mm. It's suitable for the small production factory.

• Tube diameter: 10 mm to 50 mm

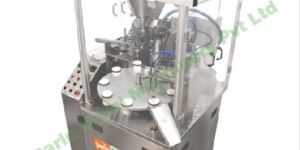

PK 30 PL Combo is a fixed speed tube filling and sealing machine suitable for outputs of 45 tubes per minute. It is designed for filling and sealing, Plastic, Plastic laminate and Aluminum laminate tubes of up to 50mm diameter and with a maximum filling volume of 250 ml. The machine is designed for manual feed of tubes and automatic filling and sealing the tubes. Tube coding in the seal area and tube trimming are also automatic operations performed prior to tube discharge.

• Accuracy: +/- 0.2 ºC.
• Temperature Range: Ambient to 300 ºC.
• Dwell Pressure: 0.05 Mpa to 0.7 Mpa
• Seal Surface: 300 mm X 10 mm. (others optional)

To seals the specimen under specified temperature, pressure and dwell time, to test the heat seal strength of laminated films. Film heat seal tester confirms to standard of ASTM F2029. As per ASTM, ISO & IS standards Mechanical-electrical integration of control system. Multifold heat sealing jaws with different areas according to customer's requirement, and easy to change. Temperature controlling: PID. Resolution – 0.1 ºC. Dwell Time: 0.01Secs to 99.99 Secs. Supply – 230 VAC ± 10 VAC/ 50 Hz. Paint – Powder coated.

• Input :230 V AC, Single Phase : Sealing Capacity (Avg. Output) 12 - 20 bottles / minute

Portable: The system is small enough to carry and seal anywhere. Easy line relocation. No water needed: Water less, 100% Air-cooled Universal Coil capable of sealing a wide range of closure diameters. Digital Soft touch membrane control panel: For easy operator interface Digital UP / Down Timer: For accurate time recording and optimum sealing. User Friendly: No tuning, no tools, just plug it into 230 V single mains power supply, set the timer and seal. Continues Use: Rugged, built to last. This machine can be used continuously for 24 hrs. production. Versatile: Small in size but Big on performance, TT-800 will seal closures from 10 mm to 73mm or 60 mm to 120 mm. Fast, easy set-up

• SPECIFICATION: NUMBER OF STATION [ CUTTING ] ONE
• NUMBER OF STATION [SEALING]: TWO [SIDE SEALING]
• NUMBER OF STATION [PUNCHING]*: ONE- FOR THUMB NAIL*
• MACHINE COLOR: VIP BLUE & SWAN WHITE
• FEATURES: • Three side seal system • Double web system • Hole punch system * • High speed servo driven ETC.

A Leading Name In The Packaging Machines For Any Specific Requirements. i.e. PVC Labels, Pouch making machines, Security Holograms Cap Sleeves machines, Food & Non Food Products, Powder, Cosmetics, etc. These Machines Are Running Successfully All Over India & Being Exported World Wide and Packing Various Products.

Controlled by accurate electronic thermostate, direct sealing by even heat distribution suitable to seal laminated, multi layer, Bopp and Polyester pouch. Sealing width available 5mm, 10mm, 15 mm. Sealing style available lining, knurling or plain. Simple padel operation   Specification

Manual Induction Sealing Machine, Bag Sealing Machine, Form Fill Seal Machine
