Projection Welder Dealers in Thane

• Thickness: 60-80mm
• Weight: 2000-2500kg
• Finishing: Polished
• Packaging Type: Carton Box
• Pressure: High Pressure
• Height: 200-300mm, 300-400mm

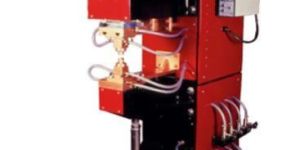

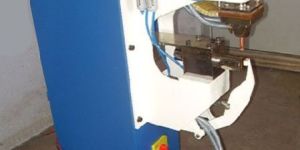

Press type air operated Projection Welders are designed for high speed production work to meet the needs of a vast number of metal fabrication shops. A variety of electrodes and toolings can be fitted to render them suitable for projection welding, cross wire welding, electro-brazing, hot riveting, electro-forging and upsetting. Fully solid state electronic controls (Microprocessor based or CMOS based) are available for using with machine in order to obtain consistent and accurate weld results on a wide range of materials at a high-speed automatic operation.  These machines are designed and manufactured conforming to the Indian Standard Specification No. IS:4804 Part I and III by a team of highly experienced engineers in welding technology.  Specifications: Standard Ratings: 50, 75, 100, 150, 250 and 300 KVA @ 50% duty cycle. Type: Air operated, stationary press type projection welding machine with pneumatic cylinder mounted directly on the upper arm.

• Duty Cycle: 100 kVA (Rating 50%)
• Throat Depth: 30 cms
• Throat Clearance Max: 20 - 30 cms
• Short Circuit Max Current: 38000 Amps
• Insulation: F Class
• Main Supply: 2 Lines of 3 phase,440 V,AC,50 Hz
